ENGLISH
33
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION/CONNECTION
When connecting to an external
amplifier, connect its ground wire to the
car’s chassis to avoid damaging the unit.

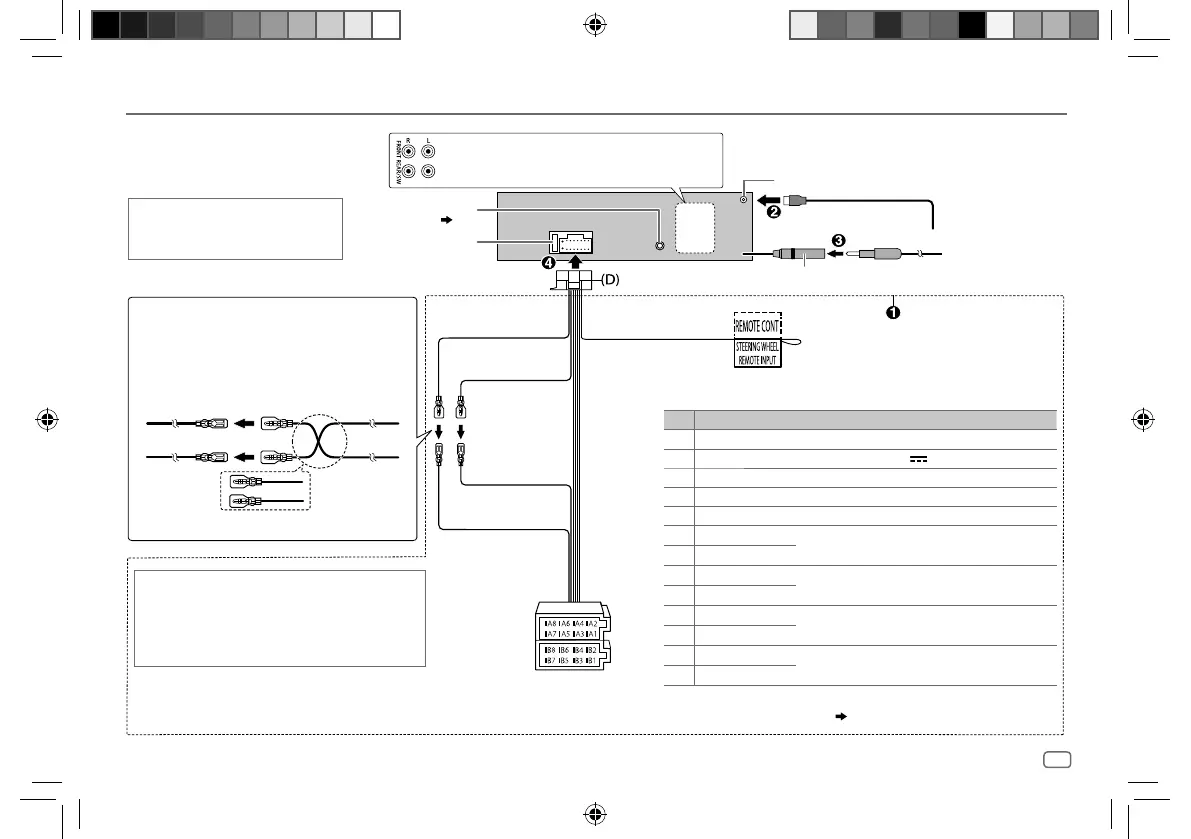

Wiring connection
Fuse (10A)
Microphone input jack
( 12)
Antenna input terminal (for FM/AM)
Light blue/yellow
(Steering remote
control wire)
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12V
350mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
Unit
Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
*
You can also connect a subwoofer speaker directly without an external
subwoofer amplifier. For setting,
22 .
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult
your car audio dealer.
Red (Ignition wire)
Front output/3-way crossover: Mid range output
Rear/subwoofer output/3-way crossover: Woofer output
DAB antenna jack (SMB connector)
JS_JVC_KD_X451DBT_E_EN_int1.indd 33JS_JVC_KD_X451DBT_E_EN_int1.indd 33 9/6/2017 3:54:25 PM9/6/2017 3:54:25 PM

JVC KD-X451DBT Specifications

General

Display type	LCD
Built-in display	Yes
Display number of lines	2 lines
DIN size	1 DIN
Output power	350 W
Product color	Black
Disc types supported	No
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Mobile operating systems supported	Android, iOS
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
USB ports quantity	1
Audio formats supported	FLAC, MP3, WAV, WMA
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	DAB, DAB+, FM, LW, MW
Preset stations quantity	40
Hands-free calling	Keep your hands on wheel with Bluetooth™ Hands-free calling. After pairing your compatible Bluetooth mobile phone to your TomTom GPS, you’ll be able to see incoming call information, make and answer calls, and talk hands-free through your device. You’ll e
Package weight	900 g

Weight and Dimensions

Depth	100 mm
Width	182 mm
Height	53 mm
Weight	600 g
