JVC KD-X470BHS

46
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

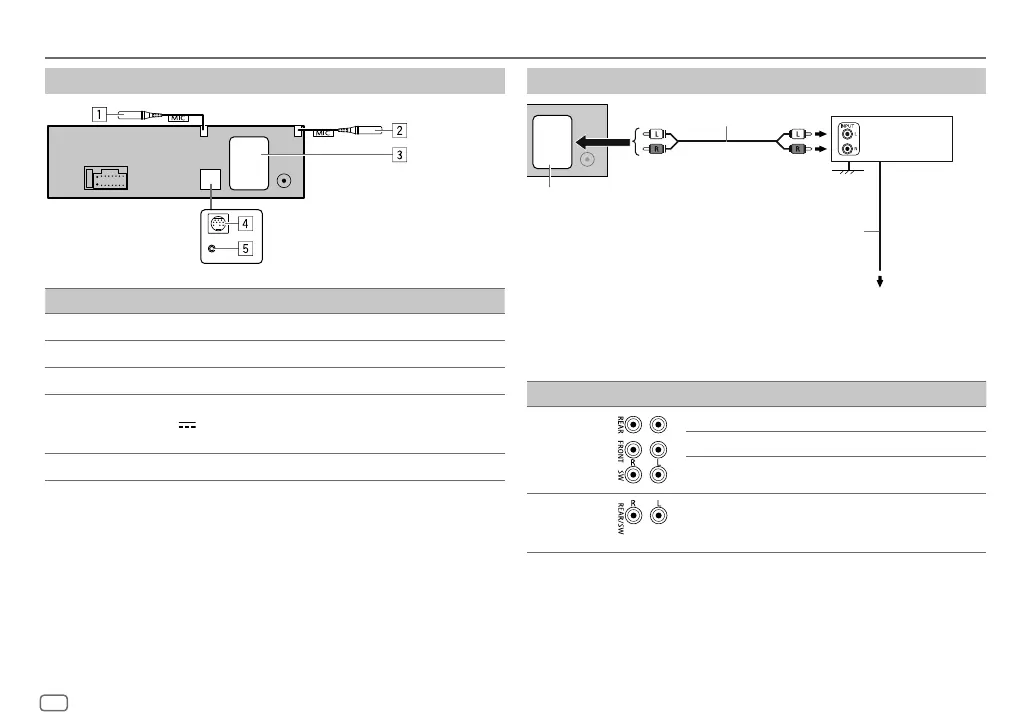

Installation/Connection
Connect external components
No Part
1
For KD-X470BHS: MIC (Microphone input terminal) (page 20)
2
For KD-X370BTS/KD-X37MBS: MIC (Microphone input terminal) (page 20)
3
Output terminals (See “Connect external amplifiers via output terminals”.)
4
For KD-X470BHS/KD-X370BTS/KD-X37MBS:
Expansion port (12 V
500 mA): To the optional SiriusXM Vehicle Tuner (commercially
available). (Page 16)
5
For KD-X270BT/KD-SX26BT: Microphone input jack (page 20)
Connect external amplifiers via output terminals
* Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Model Output terminals 2-way crossover 3-way crossover
KD-X470BHS/
KD-X370BTS/
KD-X37MBS/
REAR: Rear output Tweeter output
FRONT: Front output Mid Range output
SW: Subwoofer output Woofer output
KD-X270BT/
KD-SX26BT
REAR/SW: Rear/subwoofer output Woofer output
JVC Amplifier*
Signal cord (not supplied)
To remote lead (blue/white) of the
wiring harness. (Page 45)
Remote wire (not supplied)
Output terminals
