Other External Components
View Camera
NOTE
• To connect a camera, see P.48.
• To use a rear view camera, a REVERSE lead
connection is required. (P.48)
• The rear view screen is displayed when you shift
the gear to the reverse (R) position.

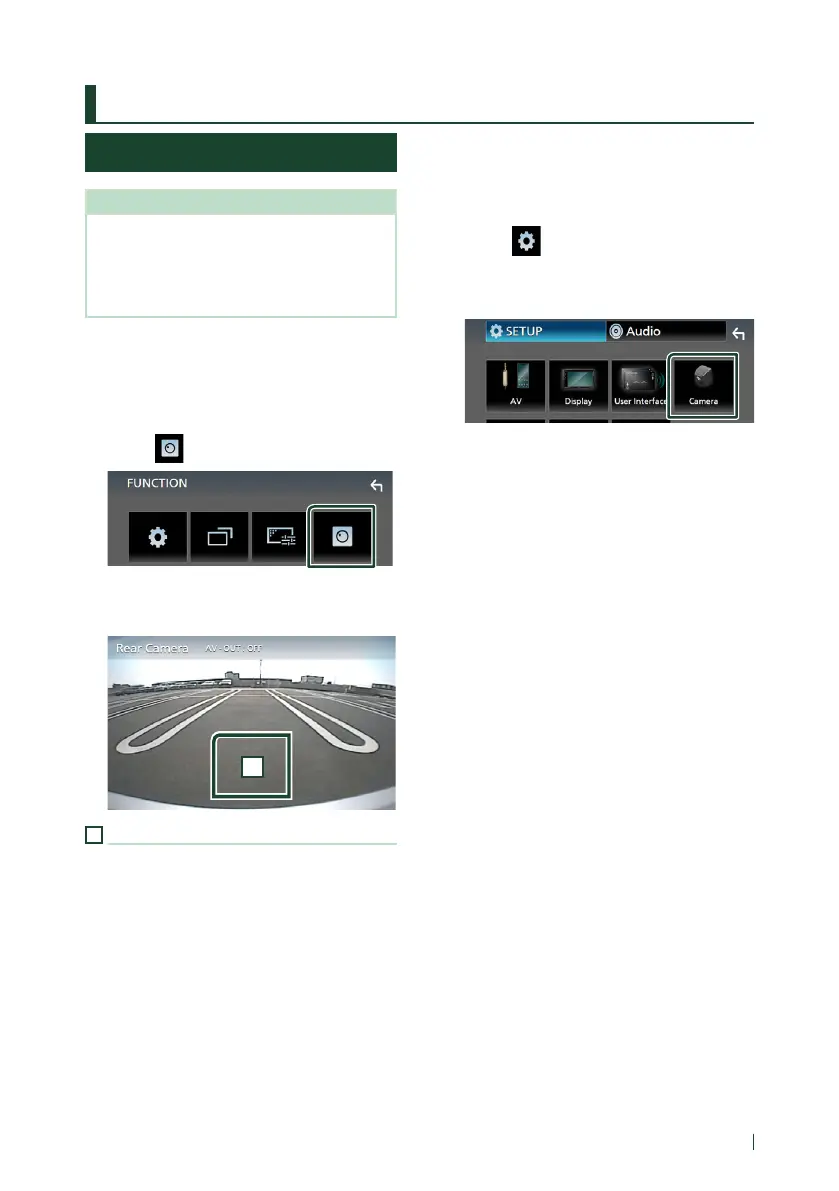

Ñ Display the camera screen
1
Press the [FNC] button.
 FUNCTION screen appears.
2
Touch [ ].
 View camera screen appears.
3
Adjust each item as follows.
1
1
Camera off
Touch to exit the camera screen.
Ñ Camera Setup
1
Press the [FNC] button.
 FUNCTION screen appears.
2
Touch [ ].
 SETUP Menu screen appears.
3
Touch [Camera].
 Camera screen appears.
4
Set each item as follows.
■ [Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■ [Guidelines SETUP]
If you select [ON] for [Parking Guidelines],
adjust the parking guidelines. See To adjust
the parking guidelines (P.34).
