Use HDMI cable KS-U70 (optional accessory).
W
H
D
W: 11.1 mm or less
H: 7.7 mm or less
D: 21.5 mm or less
When you connect the cable to HDMI terminal,
detach the fixture. After connecting the cable,
attach the fixture back using the screw.
Fixture
HDMI cable
5
Connect the following type of 4-pole mini plug:
1
24
3
1
Left audio
2
Right audio
3
Ground
4
Composite video
6
Steering
Remote
ST REMOTE
GND
Input 1
Input 2
REMO-IN
Gray/Red
Purple/Red
Bright green/Red
Í
Connect to your vehicle’s steering remote harness.
Contact your JVC dealer for details.
Installation and ConnectionInstallation and Connection
p Output terminals*
• Left output (White)
• Right output (Red)
REAR: Rear speaker preouts
FRONT: Front speaker preouts
SW: Subwoofer preouts
For 3-way crossover:
REAR: Tweeter preouts
FRONT: Mid range speaker preouts
SW: Subwoofer preouts
* When connecting an external amplifier, connect its ground wire
to the chassis of the car; otherwise the unit may be damaged.

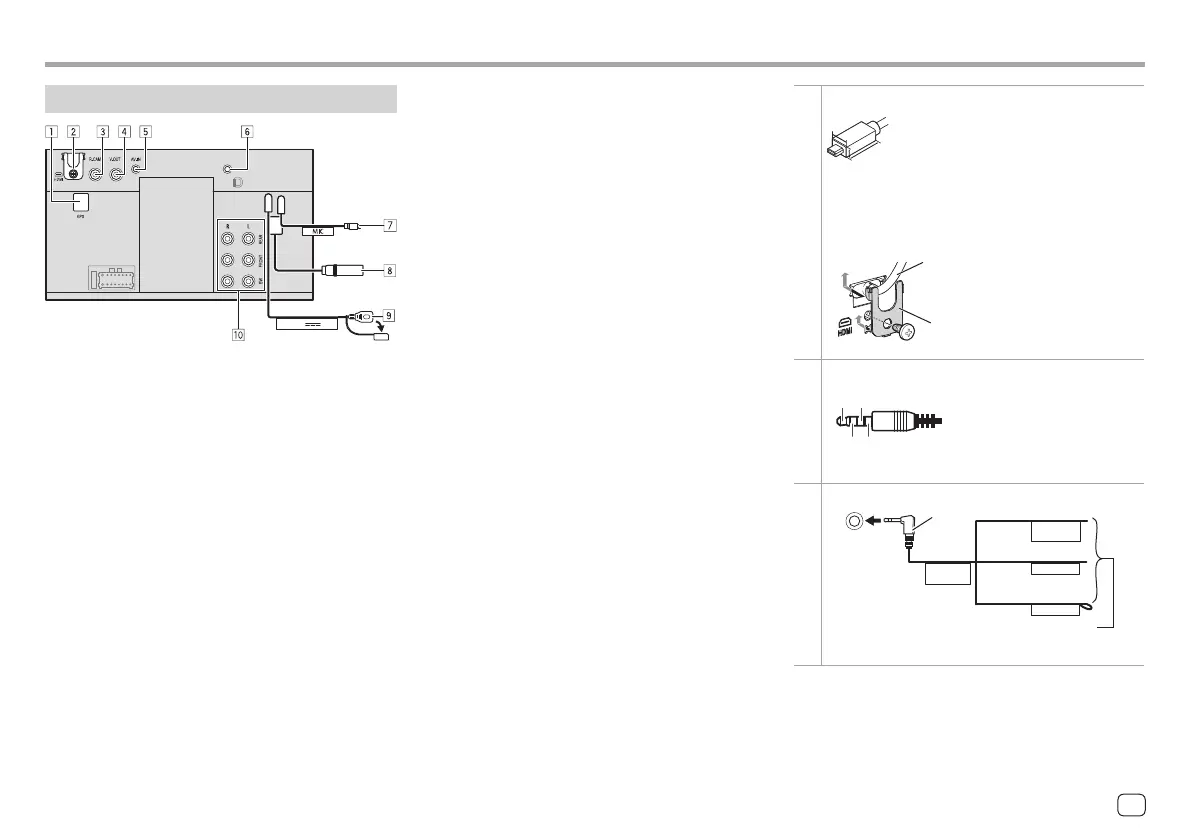

Connecting external components
REMO-IN
(USB1)5V 1.5A
1 GPS antenna input (GPS) (page 46)
2 HDMI terminal
3 Rear view camera input (R-CAM)
4 Video output (V-OUT)
5 Audio video input (AV-IN)
6 Steering wheel remote input (REMO-IN)
• Connect to the car’s steering remote harness
using the steering wheel remote input cable.
Contact your JVC dealer for details.
7 Microphone input (MIC) (page 48)
8 Antenna terminal
9 USB terminal
47ENGLISH
