Installation and ConnectionInstallation and Connection

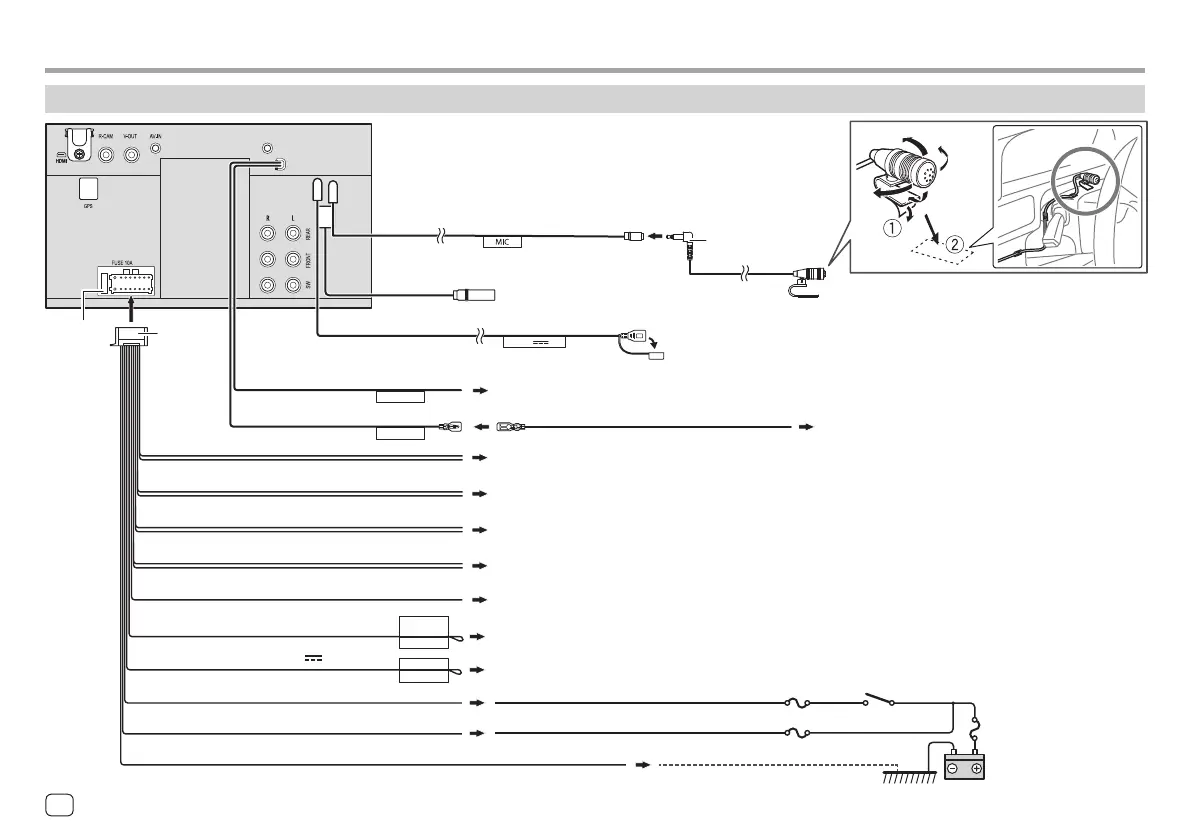

Wiring connection
REVERSE
P.CONT
ANT.CONT
REMOTE CONT
REMOTO INPUT
STEERING WHEEL
¥
PRK SW
(USB1)5V 1.5A
REMO-IN
“
10 A fuse
Connect the antenna cord to the antenna terminal
USB terminal (1 m)
Purple with white stripe
White
]
/ White with black stripe
[
Green
]
/ Green with black stripe
[
Gray
]
/ Gray with black stripe
[
Purple
]
/ Purple with black stripe
[
Orange with white stripe
Blue with white stripe (12 V
350 mA)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
Light green
To the car’s reverse lamp harness
when using the optional rear view camera
To the car light control switch
To rear speakers (right) / Tweeters (right) for 3-way crossover
To front speakers (right) / Mid-range speakers (right) for 3-way crossover
To rear speakers (left) / Tweeters (left) for 3-way crossover
To front speakers (left) / Mid-range speakers (left) for 3-way crossover
Car battery
Car fuse
To the car chassis
To the power control terminal when using the optional power amplifier (Or)
To the control terminal of the motor antenna or to the power terminal for the booster amplifier of film-type antenna
Extension wire (
ø
)
To the car’s parking brake detection switch harness
(For best safety, be sure to connect the parking sensor.)
Ignition key switch
To the steering wheel remote control adapter (not supplied)
Light blue with yellow stripe
Connect a USB device
48 ENGLISH
