ENGLISH 61
CONNECTION/INSTALLATION
CONNECTION/INSTALLATION
R Supplied accessories for installation
1 Wiring harness x 1
2 Extension wire (2 m) x 1
3 Flat head screws (M5 x 8 mm) x 6
4 Round head screws (M5 x 8 mm) x 6
5 Microphone (3 m) x 1
R Installation procedure
1 To prevent a short circuit, remove the key
from the ignition and disconnect the
·
battery.
2 Make the proper input and output wire
connections for each unit.
3 Connect the speaker wires of the wiring
harness.
4 Connect the wiring harness wires in the
following order: ground, battery, ignition.
5 Connect the wiring harness connector to
the unit.
6 Install the unit in your car.
• Make sure that the unit is installed securely
in place. If the unit is unstable, it may
malfunction (eg, the sound may skip).
7 Reconnect the · battery.
8 Press the reset button. (Page3)
9 Configure <Initial Settings>. (Page4)
Installing the unit

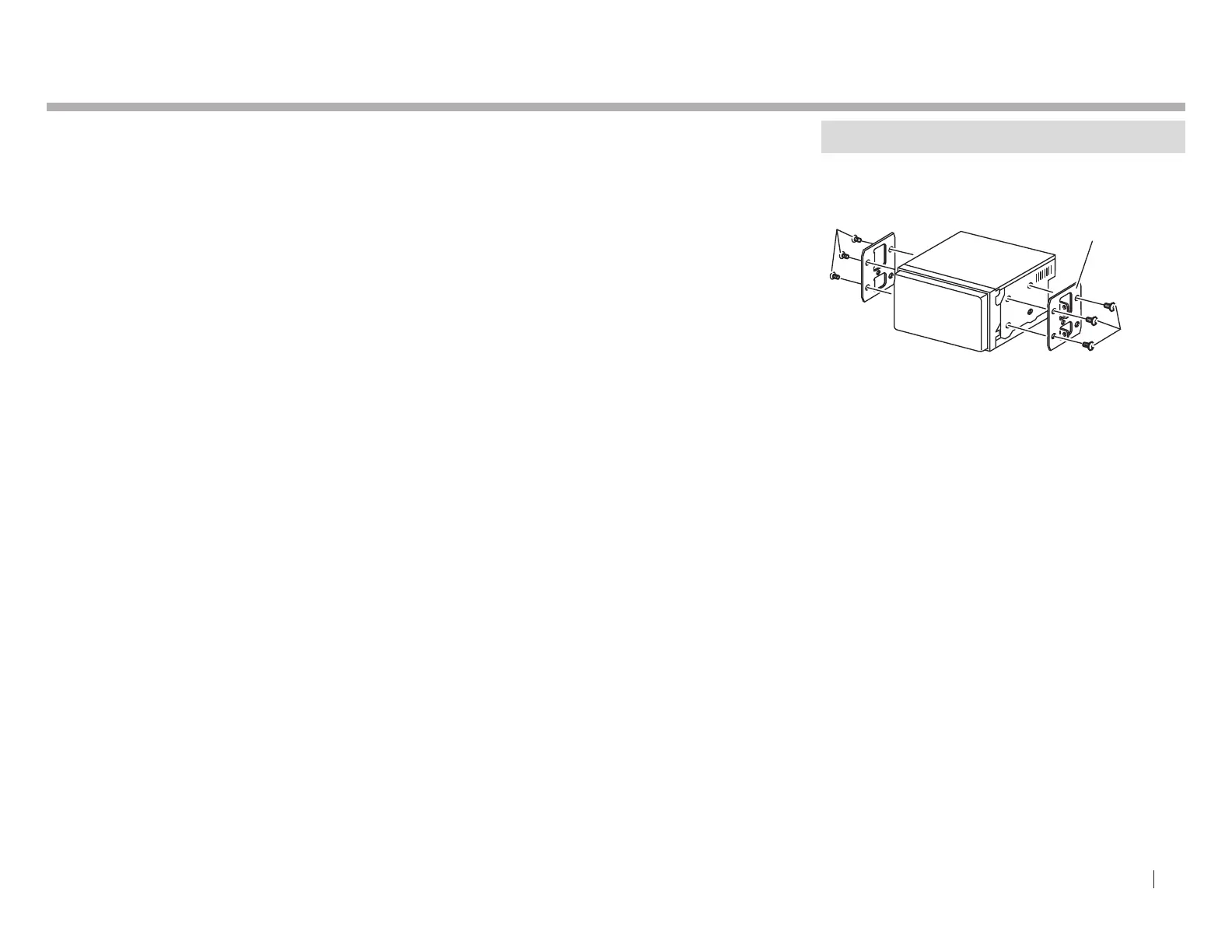

R Installing the unit using the mounting
bracket removed from the car
Car Bracket
3 or 4
3 or 4
• Select the appropriate type of screw for the
mounting bracket: flat head (3) or round head
(4).
