JVC KW-V950BW - Other External Components; View Camera

Other External Components

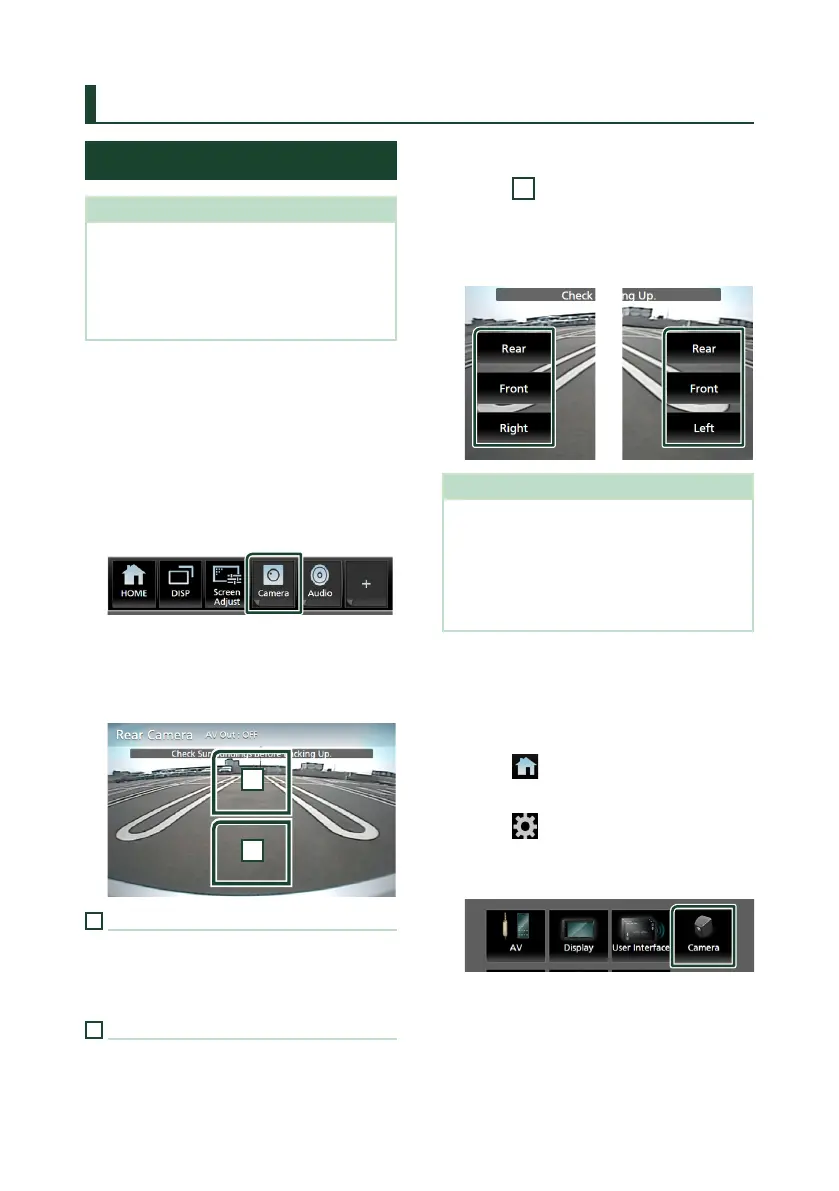

56
Other External Components
View Camera
NOTE
• To connect a camera, see P.95.
• To use a rear view camera, a REVERSE lead
connection is required. (P.94)
• If [Rear Camera Interruption] is active the
camera screen is displayed when you shift the
gear to the reverse (R) position.
Ñ Display the camera screen
You can display the camera screen manually
if “Camera” is registered to a popup menu
function key. (P.74)
1
Press the [FNC] button.
 Popup menu appears.
2
Touch [Camera].
 View camera screen appears.
3
Adjust each item as follows.
To erase the caution message, touch the
screen.
2
1
1
Switching the View Camera*
1
Touch to display the camera switching keys.
It is necessary to set “Camera Assignment
Settings” beforehand. See To switch the view
camera (P.56).
2
Camera off
Touch to exit the camera screen.
*
1
When two or more cameras of rear, front,
left, and right are connected with this unit.
To switch the view camera
1
Touch [
1
].
 Camera switching keys appear left/right
side.
2
Select a view camera you want to switch.
NOTE
• The position to display the camera switching
keys is opposite to the setting of [Parking Assist
Position]. (P.73)
• To switch to the picture other than selectable
view camera from the camera switching keys,
change the key function of except “Rear” in
[Camera Assignment Settings]. (P.57)
Ñ Camera Setup
1
Press the [FNC] button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
 SETUP screen appears.
4
Touch [Camera].
 Camera screen appears.
5
Set each item as follows.
■ Camera Assignment Settings
Set up the camera assignment. See To set up
the camera assignment settings (P.57).
