22
YPbPr
Connection to other equipment

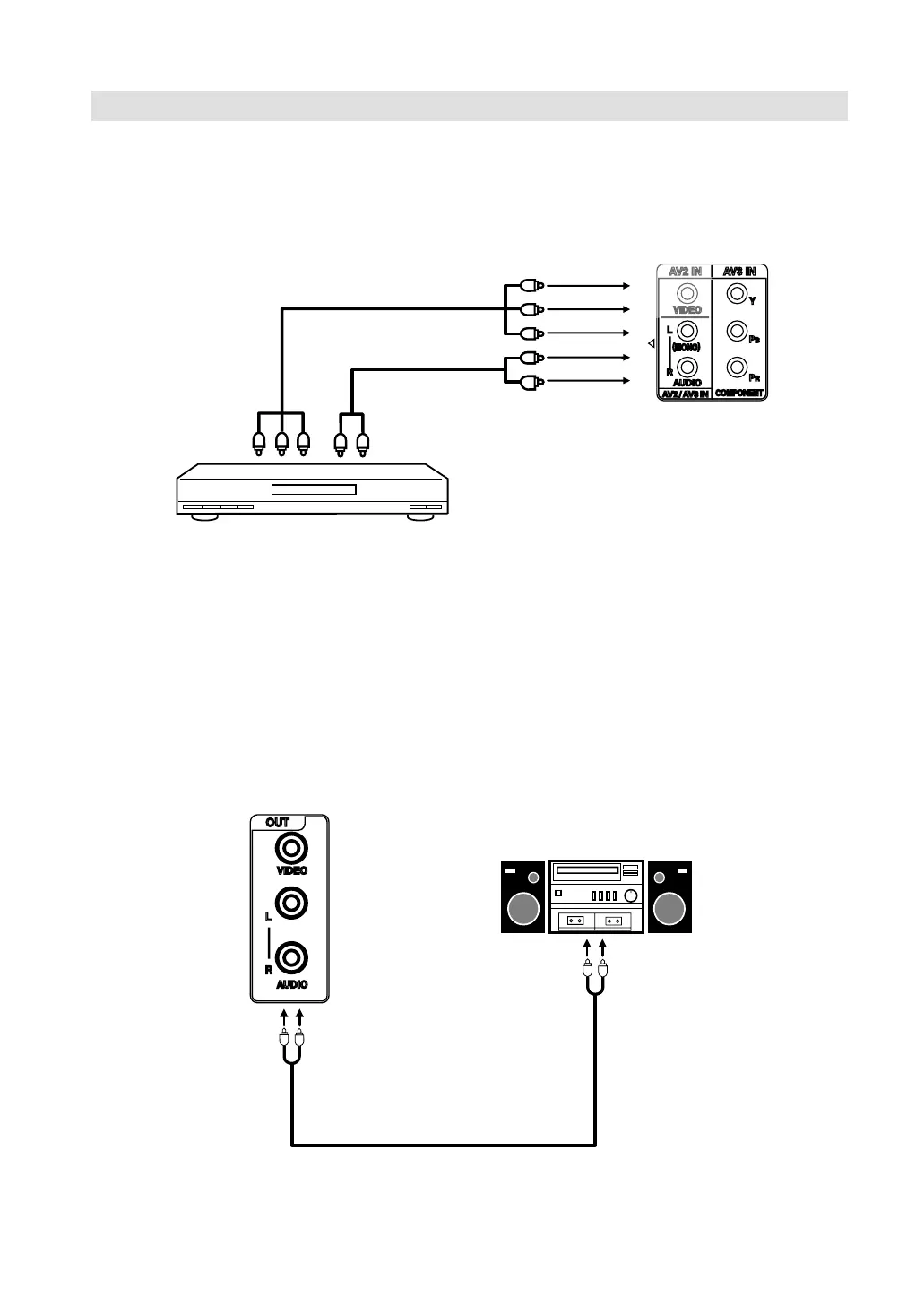

4. Connecting to a DVD player or other AV device with Component Video outputs
If your DVD player (or other device) has Component Video output jacks, use a suitable set of leads (RCA/
Phono) to connect these to the Component Video inputs on this TV as shown - it can greatly enhance
the picture quality and performance. Please remember that you will also need to connect separate leads
(RCA/Phono) for the audio signals.
Component
output
Audio output
Video cable (not supplied)
To COMPONENT IN
Note:
The Component Video input of this unit are for use with equipment which outputs interlaced signals (PAL: 576i/1080i or
NTSC: 480i/1080i) and progressive signals (PAL: 576p/720p or NTSC: 480p/720p).
•
DVD player
Audio cable (not supplied)
5. Connecting an audio system
You can supply the TV sound to the stereo equipment with the Audio output jacks. Use a Audio cable
(RCA/Phono) for the connection which sold at the accessory shop. (please consult your hi-fi instructions
for details).
Note:
The Bass/Treble/Balance adjustments (see P.13) only function with the sound from the TV speakers - it does not affect
the audio output sockets.
Only TV and AV1/AV2 audio signal will be output from Audio output jacks.
•
•
TV (Rear view)
Stereo amplifier
Audio input
Audio output
Audio cable (not supplied)
To AUDIO IN
TV (Side view)
3HW0101B_EN.indd 223HW0101B_EN.indd 22 6/23/11 11:56:24 AM6/23/11 11:56:24 AM
