1-12 (No.YA299)

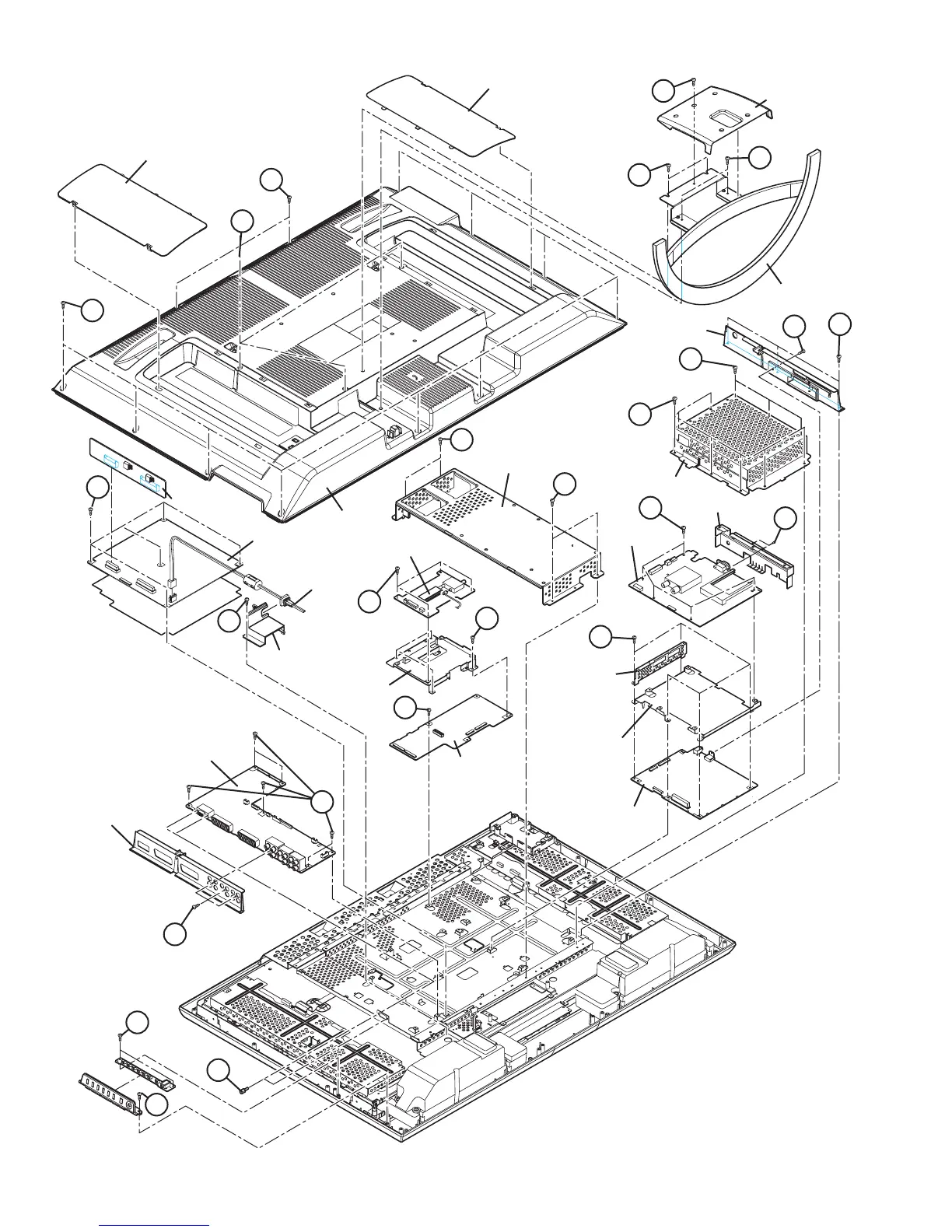

Fig.1
TOP SHIELD CASE
SIDE SHIELD CASE
DIGITAL
BRACKET
SHIELD COVER
FAN BRACKET
RECEIVER PWB
BRACKET
B
A
B
C
D
E
N
P
U
W
V
F
X
Y
F
Q
S
T
M
M
J
L
G
H
STAND
STAND COVER
JACK COVER
JACK COVER
TUNER BASE
DIGITAL SIGNAL PWB
CONNECTOR PWB
POWER CORD
HOLDER
ANALOG SIGNAL PWB
TERMINAL BASE
POWER CORD
POWER PWB
REAR COVER
REGULATOR PWB
RECEIVER PWB
K
DIGITAL
TUNER UNIT
