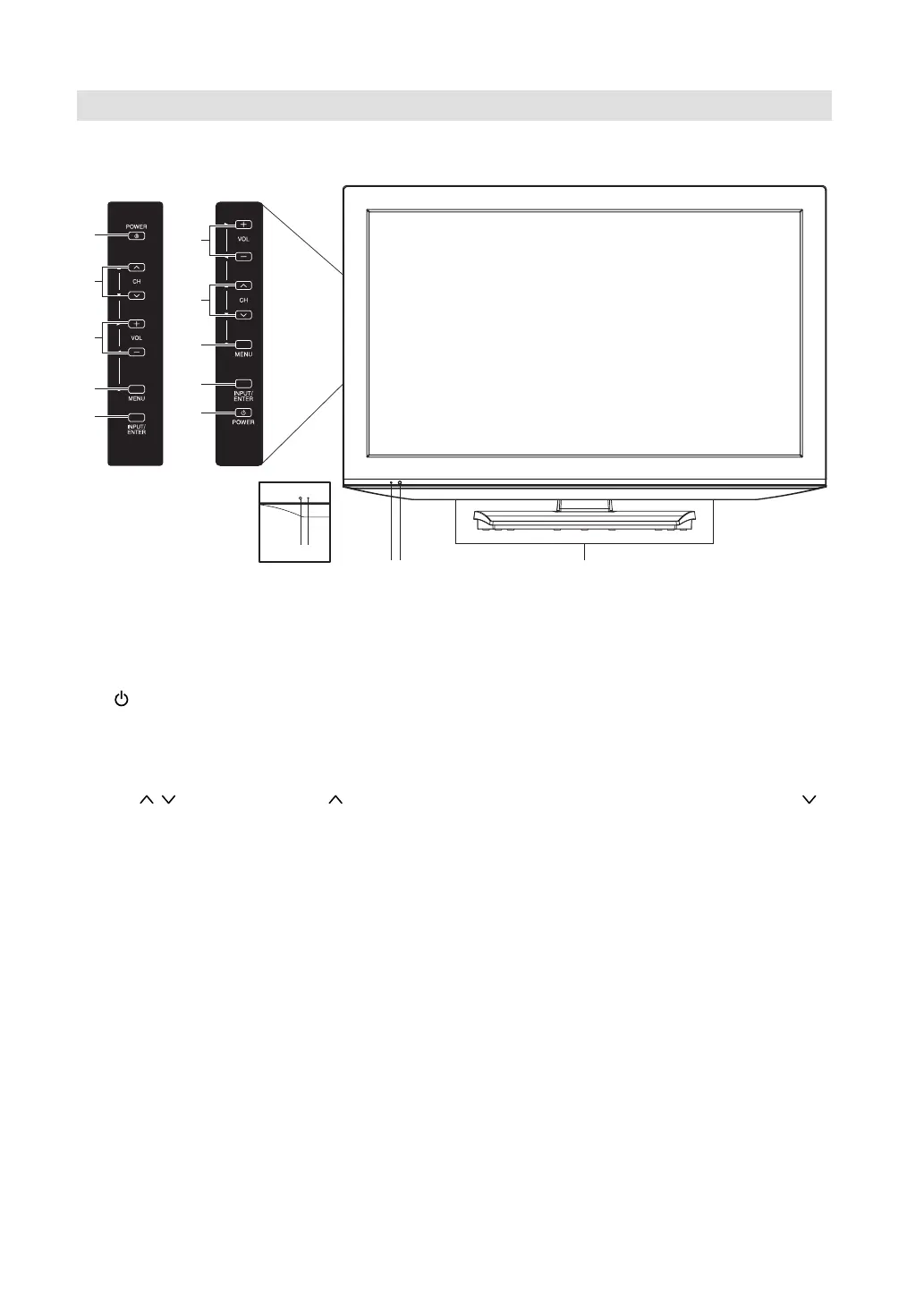

Location of controls
Description of Indicators and Controls
1. Remote sensor
2.
(Power)-button: Preparation: Connect AC Cord to AC110~240V, 50/60Hz.
a) If standby-LED is red, you may power-off. To power-off, press power-button 1x and release.
For confirmation, standby-LED will change to dark. Power-on by remote control is not available.
b) If standby-LED is off, you may power-on. To power-on, press power-button 1x and release.
For confirmation, standby-LED will change to green.
3. CH
/ /▲/▼ buttons: Press to change to a higher numbered channel set into memory. Press
to change to a lower numbered channel set into memory. In Menu: Setting.
4. VOL+/–/◀/▶ buttons: To control volume / In Menu: Setting.
5. MENU button: To display the menu screen.
6. INPUT/ENTER button: Select input mode. Press INPUT/ENTER. Then press ▲/▼ to select input
source. In Menu : Using as ENTER button.
7. Power indicator: The LED indicator lights up red in standby mode, and green in the power ON mode.
8. Loudspeakers
For complete disconnection from the network, remove the supplied
AC Cord
from the socket.
5
8
4
3
2
1
6
7
LT-32A4
(LT-40Z40)
6
5
3
4
2
(LT-40Z40)
