USE SETTING
TROUBLE?
PREPARE
IMPORTANT
Make sure all the devices and the TV are turned off.
The names of the devices shown in the following illustration are examples.
The alphabets A, B, C, D, E, F and G indicate the type of connections. Refer
to P. 10 - 11 to find the best connections that are possible with your devices.
z Please read the user manuals of each device before setting up.
z Connecting cables are not supplied with this TV.

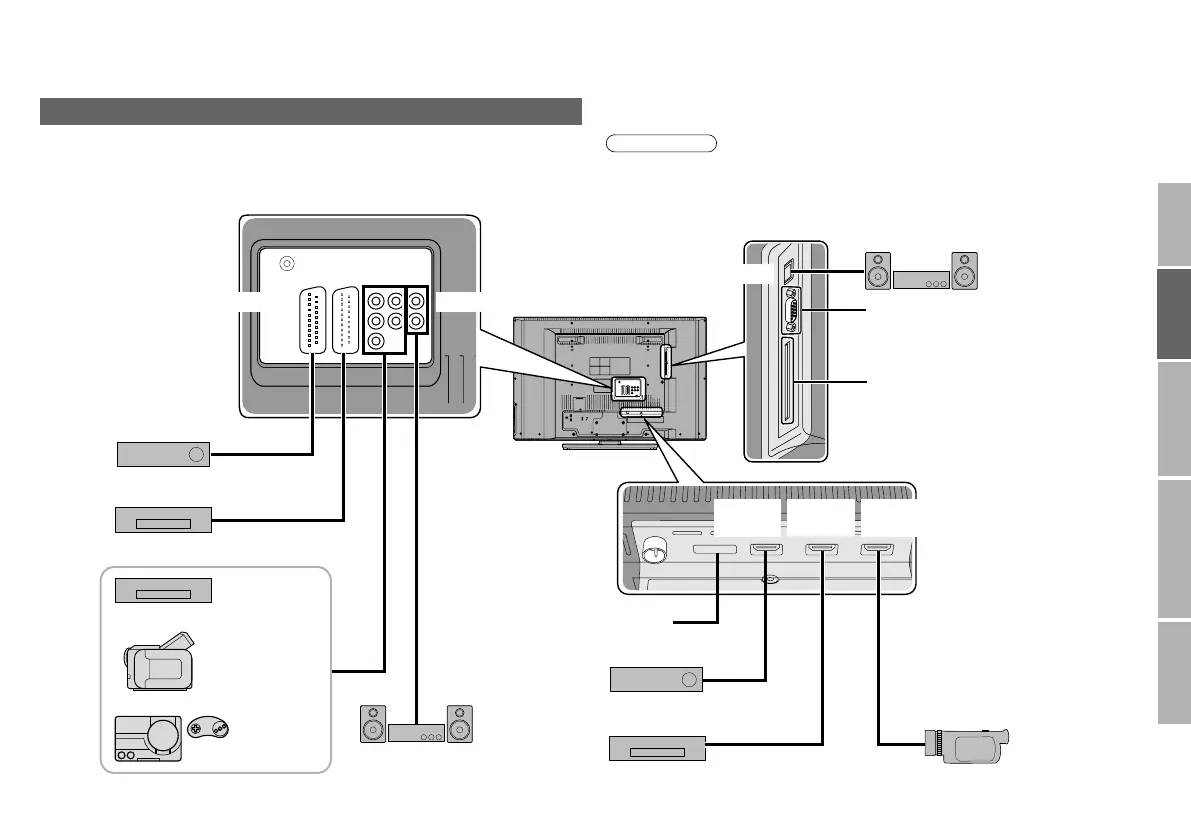

Connecting your external devices
Note
Audio system
Satellite broadcast tuner
VCR / DVD recorder
EXT-1 AUDIO OUT
EXT-4
(HDMI 1)
EXT-5
(HDMI 2)
EXT-6
(HDMI 3)
Not available.
(For service adjustments)
CI (Common Interface) slot
Refer to “Watch pay-TV
digital channels” (P. 8)
HD Video camera
Digital Satellite broadcast tuner
DVD player
Video camera
Game consoles
Not available.
(For service adjustments)
DVD player
D
D
C/E
A/B
A
A
G
F
EXT-2 EXT-3
Audio system
DIGITAL AUDIO OUT
