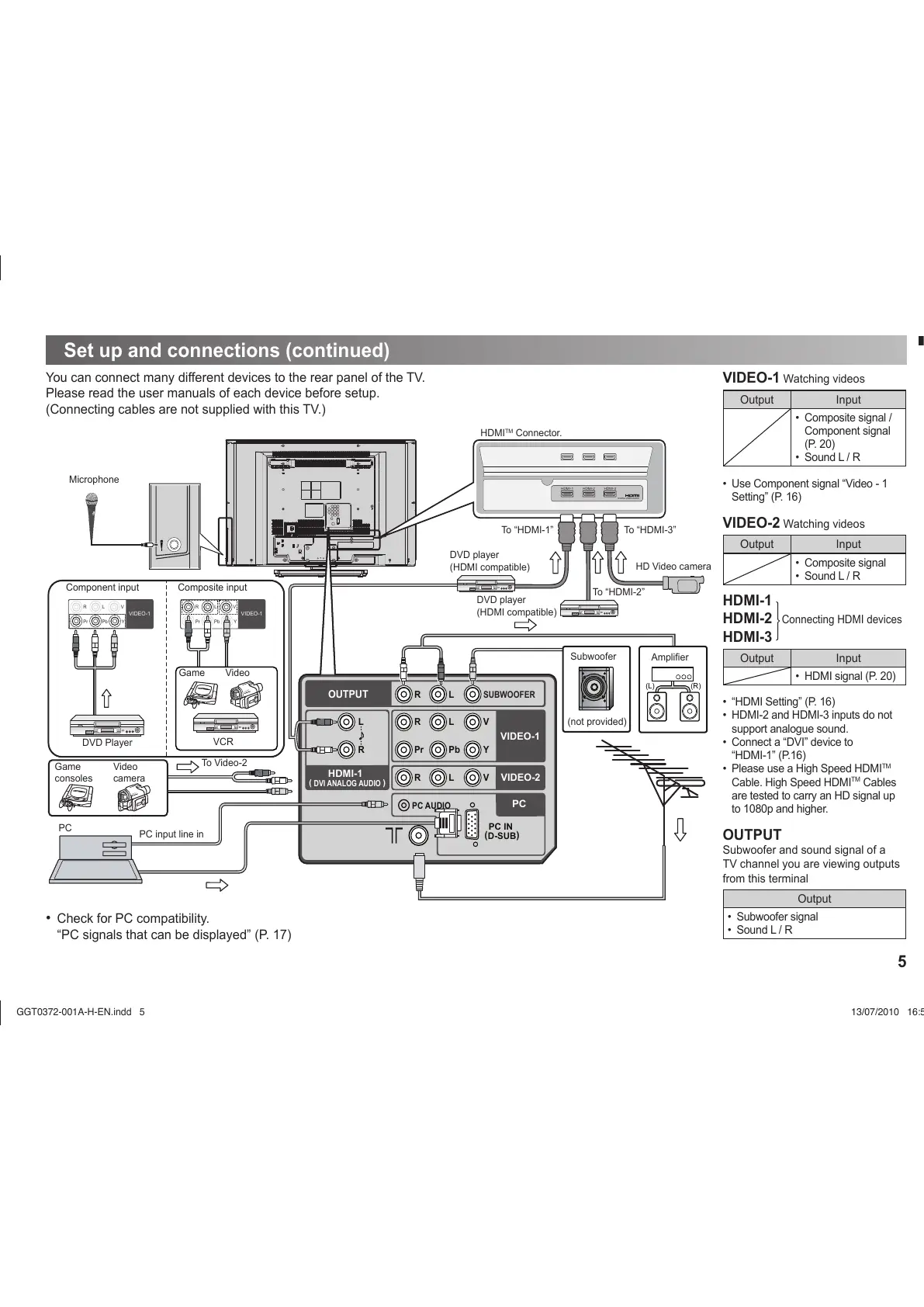

You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setup.
(Connecting cables are not supplied with this TV.)
Component input
Game
consoles
Video
camera
PC
VIDEO-1 Watching videos
Output Input
Composite signal / •
Component signal
(P. 20)
Sound L / R•
Use Component signal “Video - 1 •
Setting” (P. 16)
VIDEO-2 Watching videos
Output Input
Composite signal•
Sound L / R•
HDMI-1
HDMI-2 Connecting HDMI devices
HDMI-3
Output Input
HDMI signal (P. 20)•
“HDMI Setting” (P. 16)•
HDMI-2 and HDMI-3 inputs do not •
support analogue sound.
Connect a “DVI” device to •
“HDMI-1” (P.16)
Please use a High Speed HDMI•
TM
Cable. High Speed HDMI
TM
Cables
are tested to carry an HD signal up
to 1080p and higher.
OUTPUT
Subwoofer and sound signal of a
TV channel you are viewing outputs
from this terminal
Output
Subwoofer signal•
Sound L / R•
Composite input
Game Video
VCR
PC input line in
HDMI
TM
Connector.
DVD Player
Amplifi er
Subwoofer
(not provided)
DVD player
(HDMI compatible)
Microphone
DVD player
(HDMI compatible)
HD Video camera
Set up and connections (continued)
To “HDMI-1” To “HDMI-3”
To “HDMI-2”
Check for PC compatibility.•
“PC signals that can be displayed” (P. 17)
To Video-2
