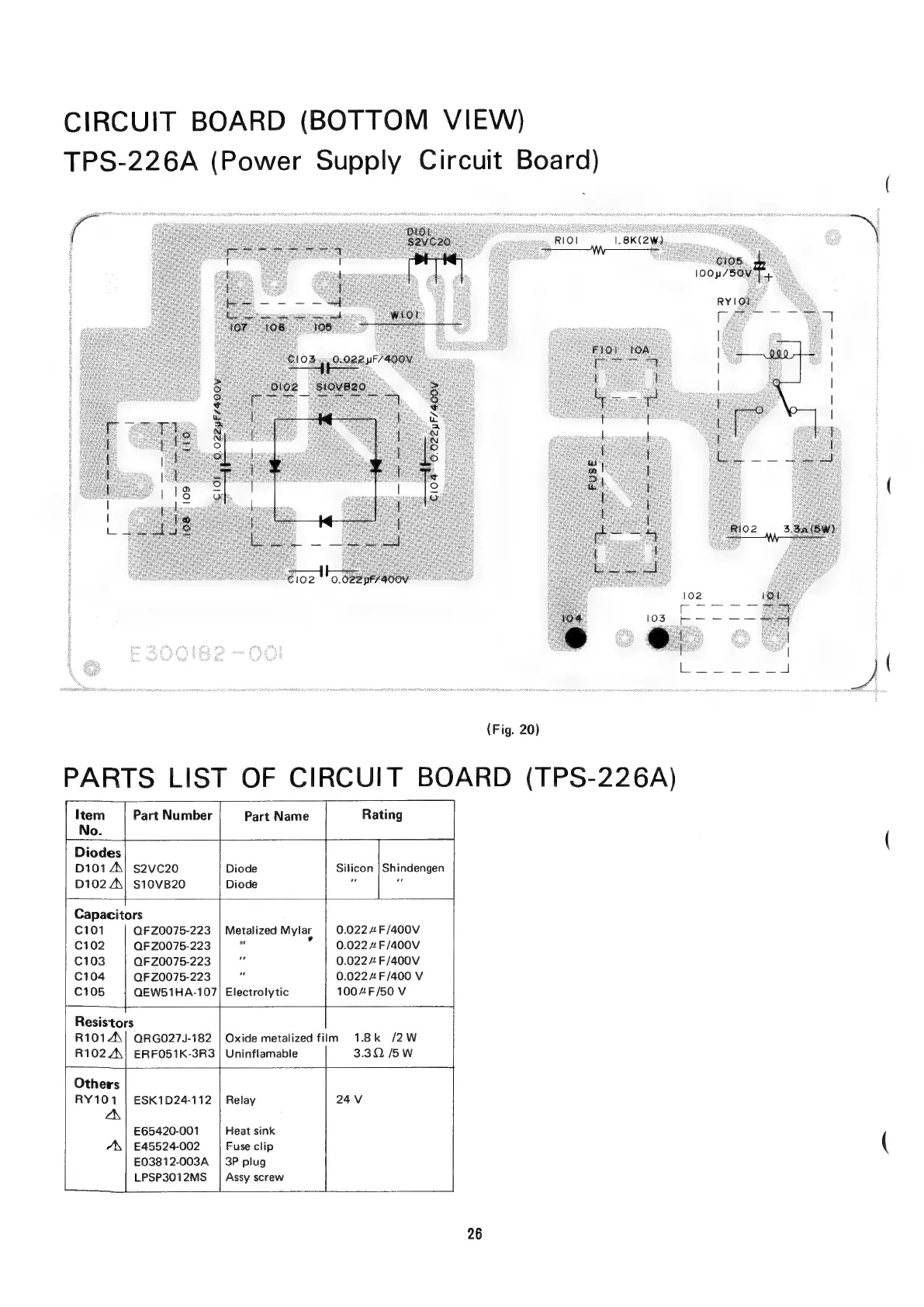

JVC M-7050 - Page 26

CIRCUIT
BOARD
(BOTTOM
VIEW
TPS-226A
(Power
Supply
Circuit
Board)
Item Part Number Part Name Rating
No.
Diodes
D101 A\| s2vc20 Diode Silicon | Shindengen
D102 A $10VB20 Diode e "
Capacitors
C101 QFZ0075-223 | Metalized Mylar 0.022 4 F/400V
C102 QF Z0075-223 ue 0.022 4F/400V
C103 QFZ0075-223 im 0.0224 F/400V
C104 QF Z0075-223 m 0.0224F/400 V
C105 QEW51HA-107) Electrolytic 1004F/50 V
Resistors
R101A\| QRGO27J-182 | Oxide metalized film 1.8k /2W
ERF051K-3R3 | Uninflamable 3.30, /5W
ESK1D24-112 | Relay 24V
E65420-001 Heat sink
E45524-002 Fuse clip
E03812-003A | 3P plug
LPSP3012MS_| Assy screw
26
(Fig. 20)
PARTS LIST OF CIRCUIT BOARD (TPS-226A)
