MAIN SPEAKER
SUBWOOFER
4-8
[ ]
6-16
[ ]
RR
LL

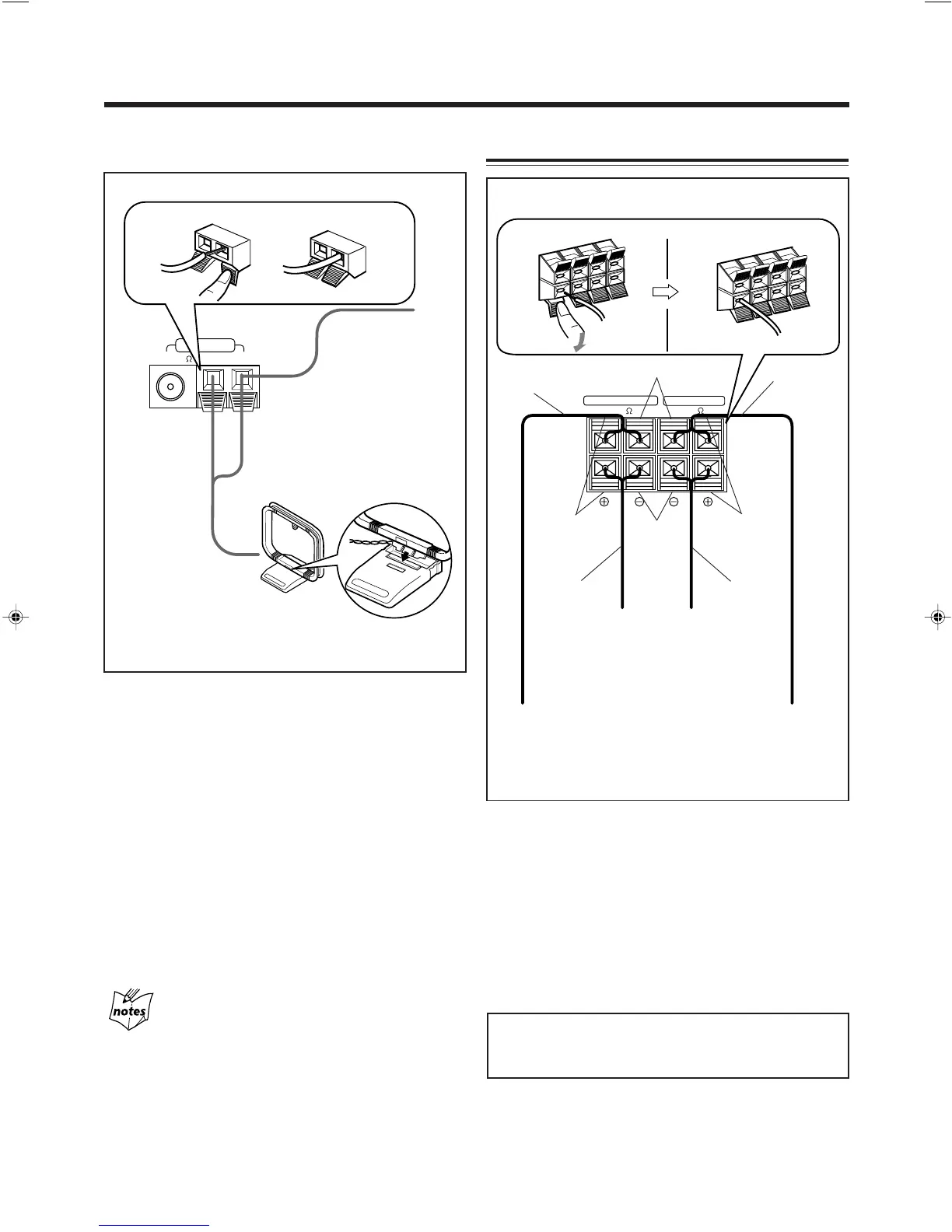

1 Press and hold the clamp of the AM
terminals on the rear of the unit.
2 Insert the end of the AM loop antenna cord
into the terminal.
3 Release the finger from the clamp.
4 Turn the AM loop antenna until you have the
best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM terminal and extend it horizontally. (The AM loop
antenna must remain connected.)
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
Connecting Speakers
Speaker
cord
(red/black)
2
From left
main
speaker’s
terminals
Speaker cord
(red/black)
Speaker cord
(blue/black)
1 Press and hold the clamp of the speaker
terminal on the rear of the unit.
2 Insert the end of the speaker cord into the
terminal.
Match the polarity (colors): Blue (+) to blue (+) and black
(–) to black (–); Red (+) to red (+) and black (–) to black
(–).
3 Release the finger from the clamp.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.
From right
main
speaker’s
terminals
From left
subwoofer’s
terminals
From right
subwoofer’s
terminals
1
Speaker cord
(blue/black)
Black
Blue
Red
Black
ANTENNA
FM 75
AM
[ ]
2
1
EN01-11.MX-G50[J]_f 00.12.27, 6:49 PM7
