Remove the four screws E on the bottom of the

body.

Release the two joints a on the lower right and left

sides of the body using a screwdriver, and remove

the front panel assembly toward the front.

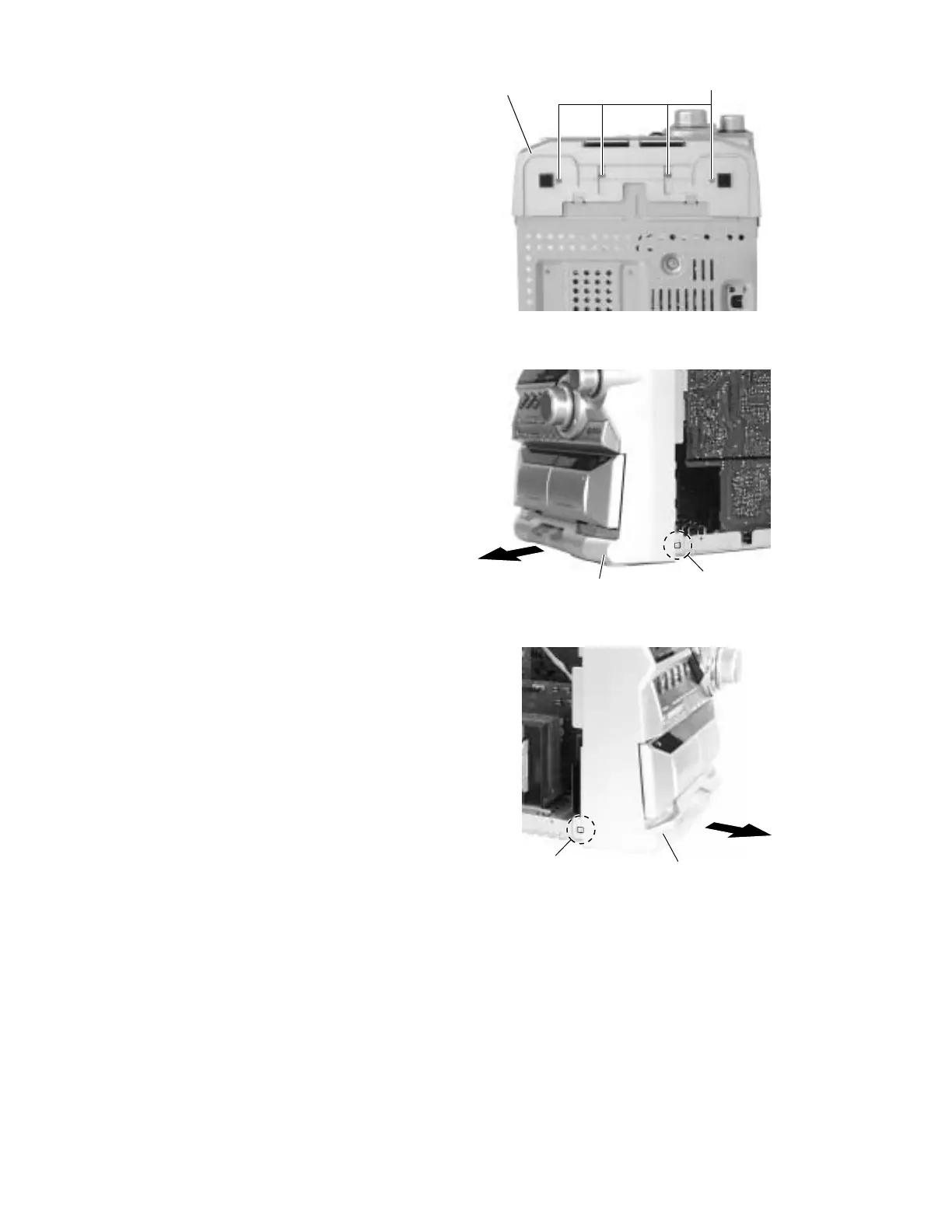

Fig.8

Fig.9

Fig.10

(Bottom)

Front panel assembly

Joint a

Front panel assembly
