JVC MX-G78V - Speaker Disassembly (MX-GT88 V;MX-GT85 V)

MX-GT98V/MX-GT95V/MX-GT88V
MX-GT85V/MX-G78V/MX-G75V
1-16
Remove the four screws A attaching the front panel
on the front of the body.
Pull out the front panel toward the front.
1.
2.
[for MX-GT88V/MX-GT85V]
Removing the front panel (See Fig.1)
Prior to performing the following procedures, remove
the front panel.
Remove the two screws B attaching the speaker
(tweeter) on the front of the body.
Disconnect the wire from two speaker terminals of
the speaker (tweeter).
1.
2.
Removing the supeaker (tweete)
(See Fig.2)
Prior to performing the following procedures, remove
the front panel.
Remove the four screws C attaching the speaker
(squawker) on the front of the body.
Disconnect the wire from the two speaker terminals
of the speaker (squawker).
1.
2.
Removing the speaker (squawker)
(See Fig.3)

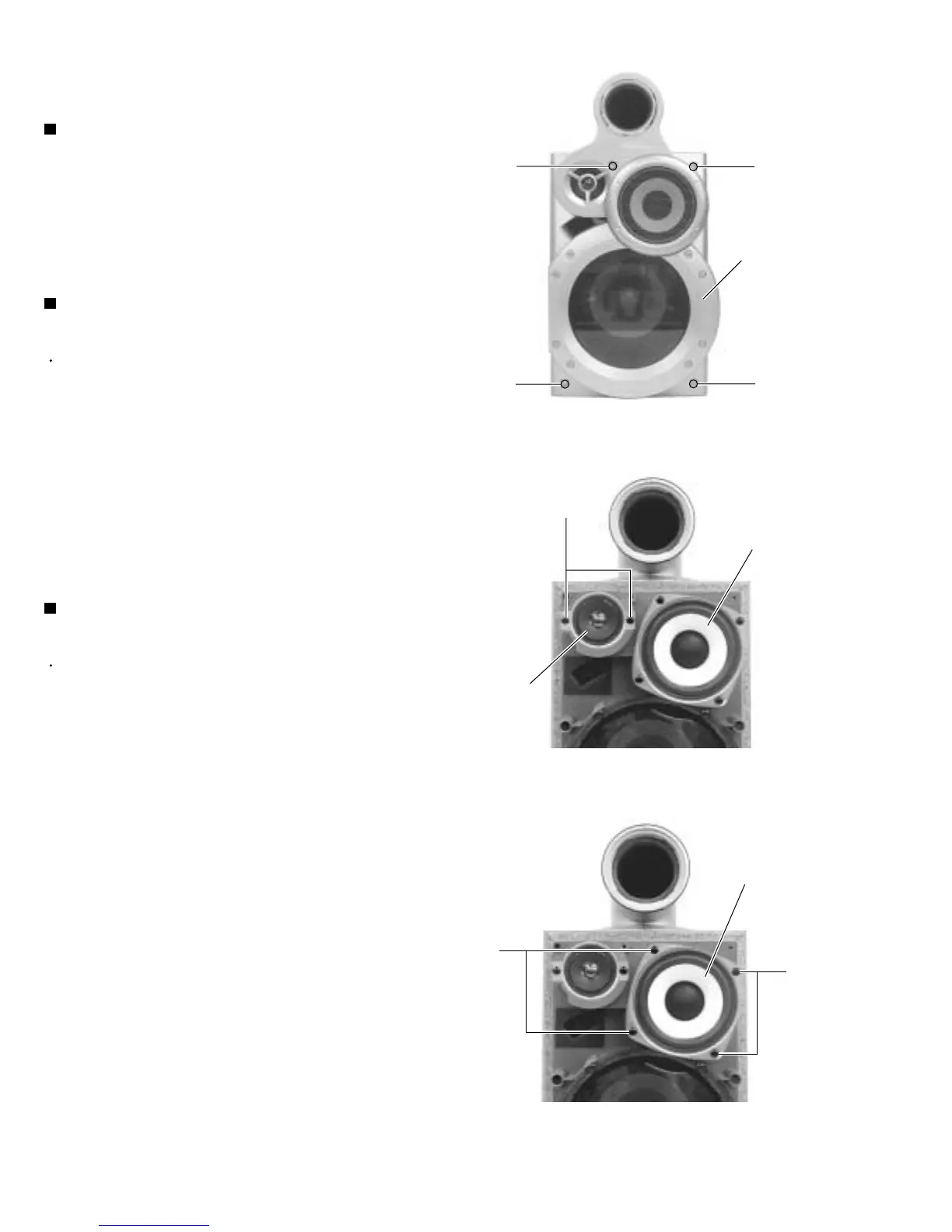

Fig.1
Fig.2
Fig.3
AA
AA
Front panel
B
Speaker (squawker)
Spealer (tweeter)
Speaker (squawker)
C
C
