(No.MB011)1-37
4.3

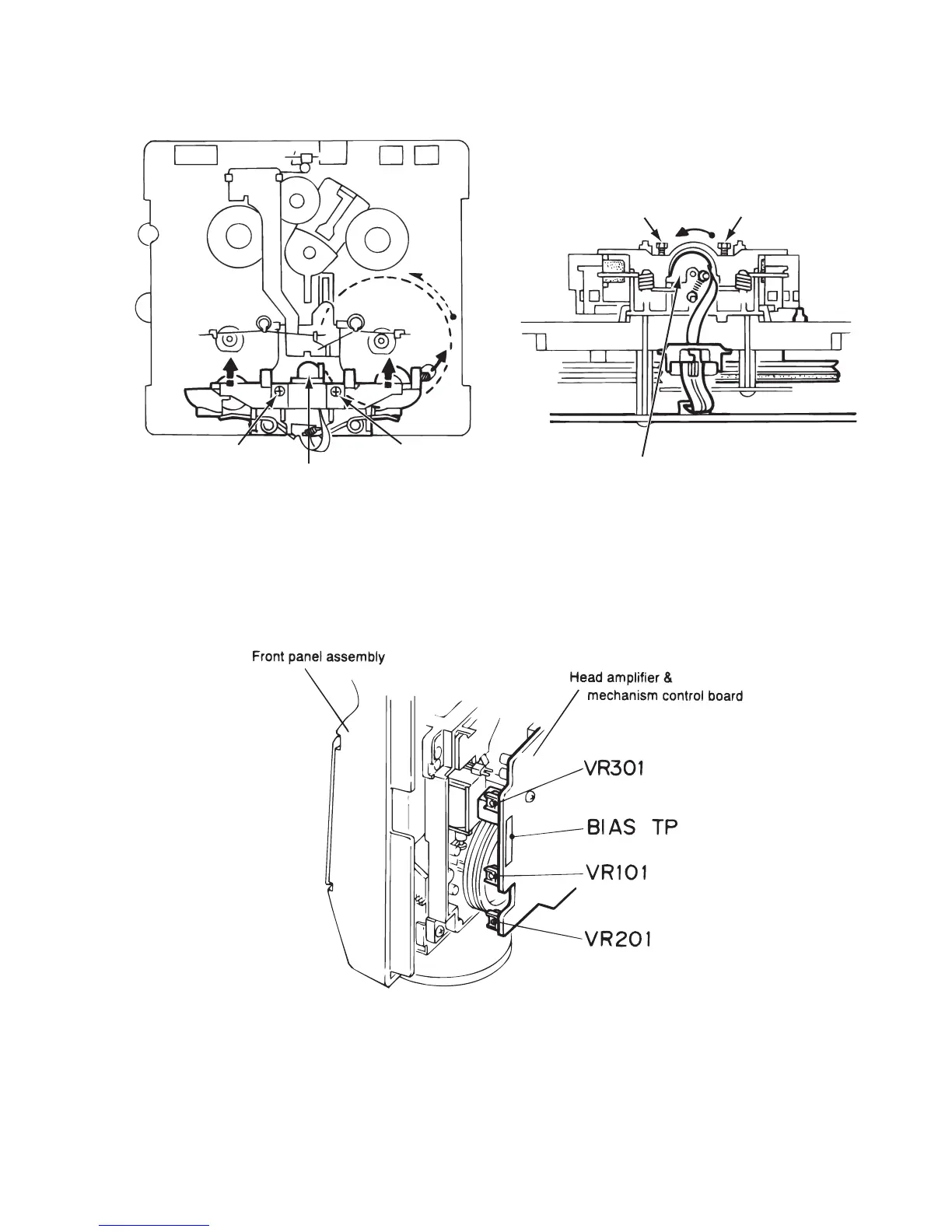

Arrangement of adjustin
g positions
Cassette mechanism section (Mechanism A section)
Cassette mechanism section (Back side)
Cassette Mechanism Unit Section
Head azimuth
adjusting screw
(Forward side)
Head azimuth
adjusting screw
(Forward side)
Head azimuth
adjusting screw
(Reverse side)
Head azimuth
adjusting screw
(Reverse side)
Playback
head
Playback, recording and eraser
heads or playback head
T
ape speed ADJ
Bias ADJ L
Bias ADJ R
36
38
Table of Contents
Service Manual
1
Table of Contents
1
Precaution
3
Specific Service Instructions
6
Disassembly
7
Adjustment
36
Troubleshooting
40
Parts List
43
Speaker Assembly and Parts List (Main) (Block No.m2)
47
Speaker Assembly and Parts List (Surround) (Block No.m6)
48
Speaker Assembly and Parts List (Subwoofer) (Block No.m7)
49
CD Changer Mechanism Assembly and Parts List (Block No.ma)
50
CD Mechanism Assembly and Parts List (Block No.mb)
52
Cassette Mechanism Assembly and Parts List (Block No.mp)
53
Electrical Parts List (Block No.01~08)
57
[ MX-Ga9V ]
69
