BA3837(IC466):MIC mixer

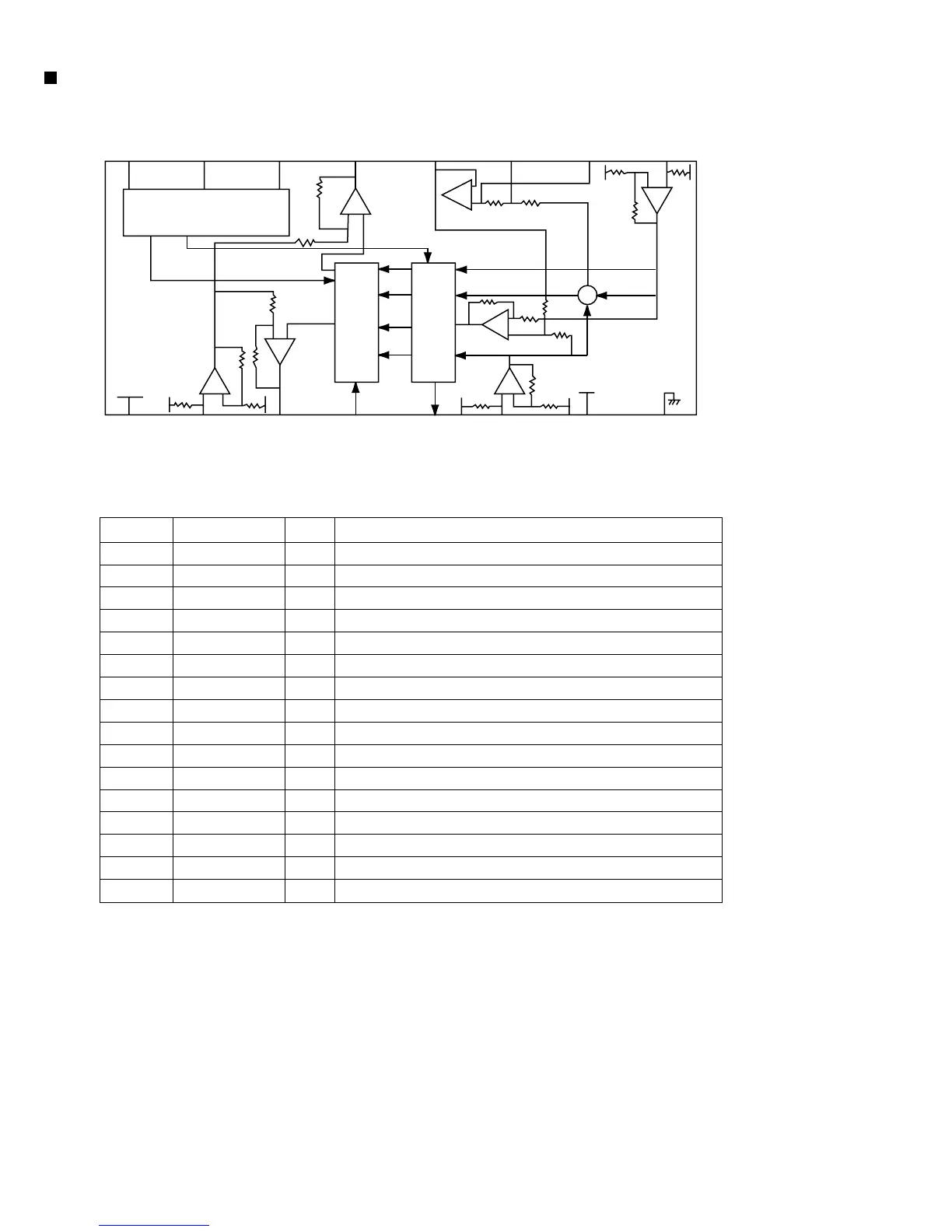

1.Block diagram
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
VCC
MIC IN
LOUT
FK
TK
LIN
BIAS
GND
RIN
LPF1
LPF2
LPF3
ROUT
CONTA
CONTB
CONTC
Power supply
Microphone mixing input
Channel L output
Non connect
Non connect
Channel L input
Signal bias
Connect to GND
Channel R input
Connects to LPF time constant element
Connects to LPF time constant element
LPF outpout
Channel R output
Mode select input A
Mode select input B
Mode select input C
-
I
O
-
-
I
I
-
I
O
O
O
O
I
I
I
Pin No.
Symbol
I/O
Description
2.Pin function
