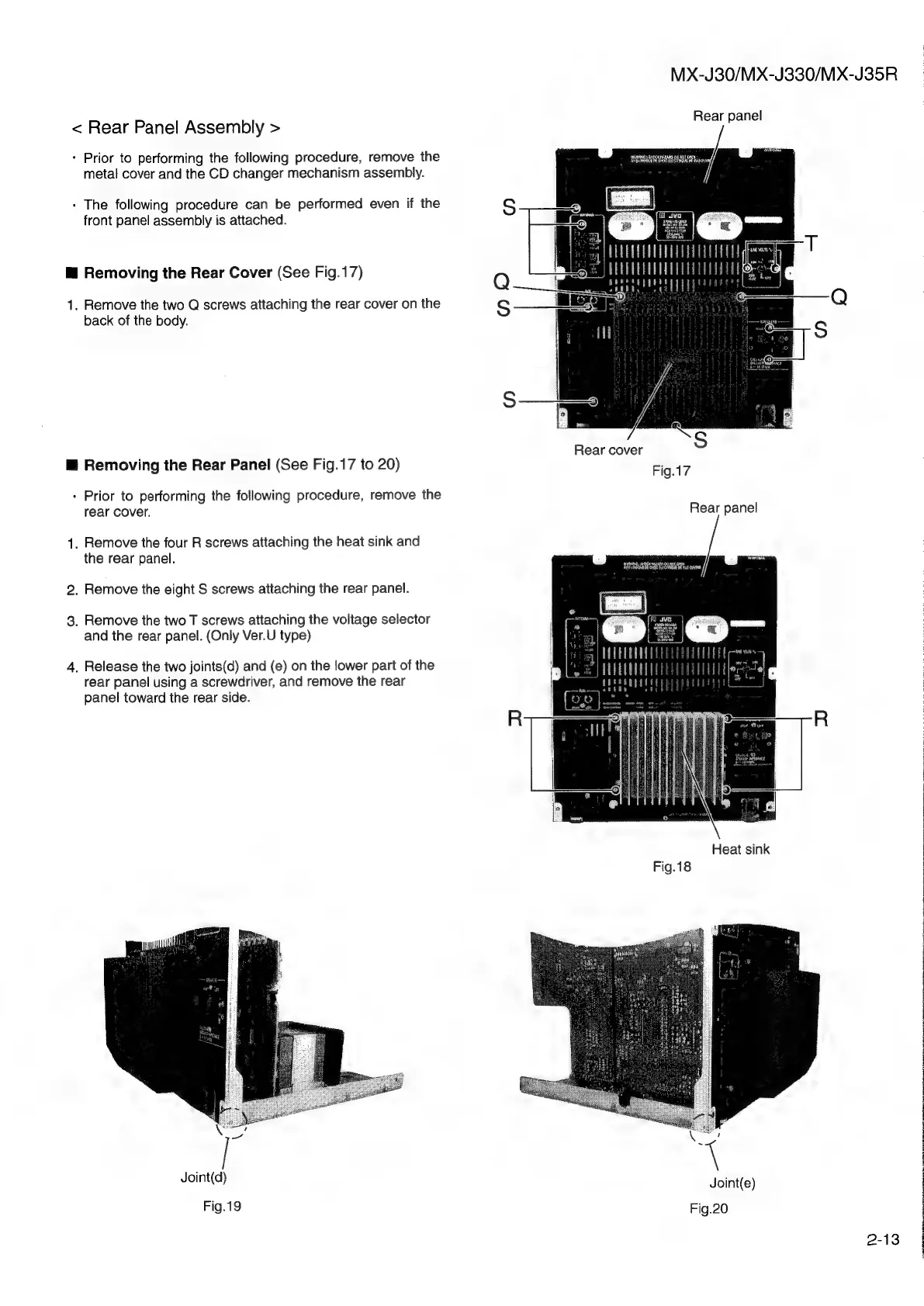

< Rear Panel Assembly >
- Prior to performing the following procedure, remove the
metal cover and the CD changer mechanism assembly.
- The following procedure can be performed even if the
front panel assembly is attached.
m@ Removing the Rear Cover (See Fig.17)
1. Remove the two Q screws attaching the rear cover on the
back of the body.
@ Removing the Rear Panel (See Fig.17 to 20)
+ Prior to performing the following procedure, remove the
rear cover.
1. Remove the four R screws attaching the heat sink and
the rear panel.
2, Remove the eight S screws attaching the rear panel.
3. Remove the two T screws attaching the voltage selector
and the rear panel. (Only Ver.U type)
4. Release the two joints(d) and (e) on the lower part of the
rear panel using a screwdriver, and remove the rear
panel toward the rear side.
Joint(d)
Fig.19
8
MX-J30/MX-J330/MX-J35R
Rear panel
i
PERUSE
Fig.18
Maou
Heat sink
2-13
