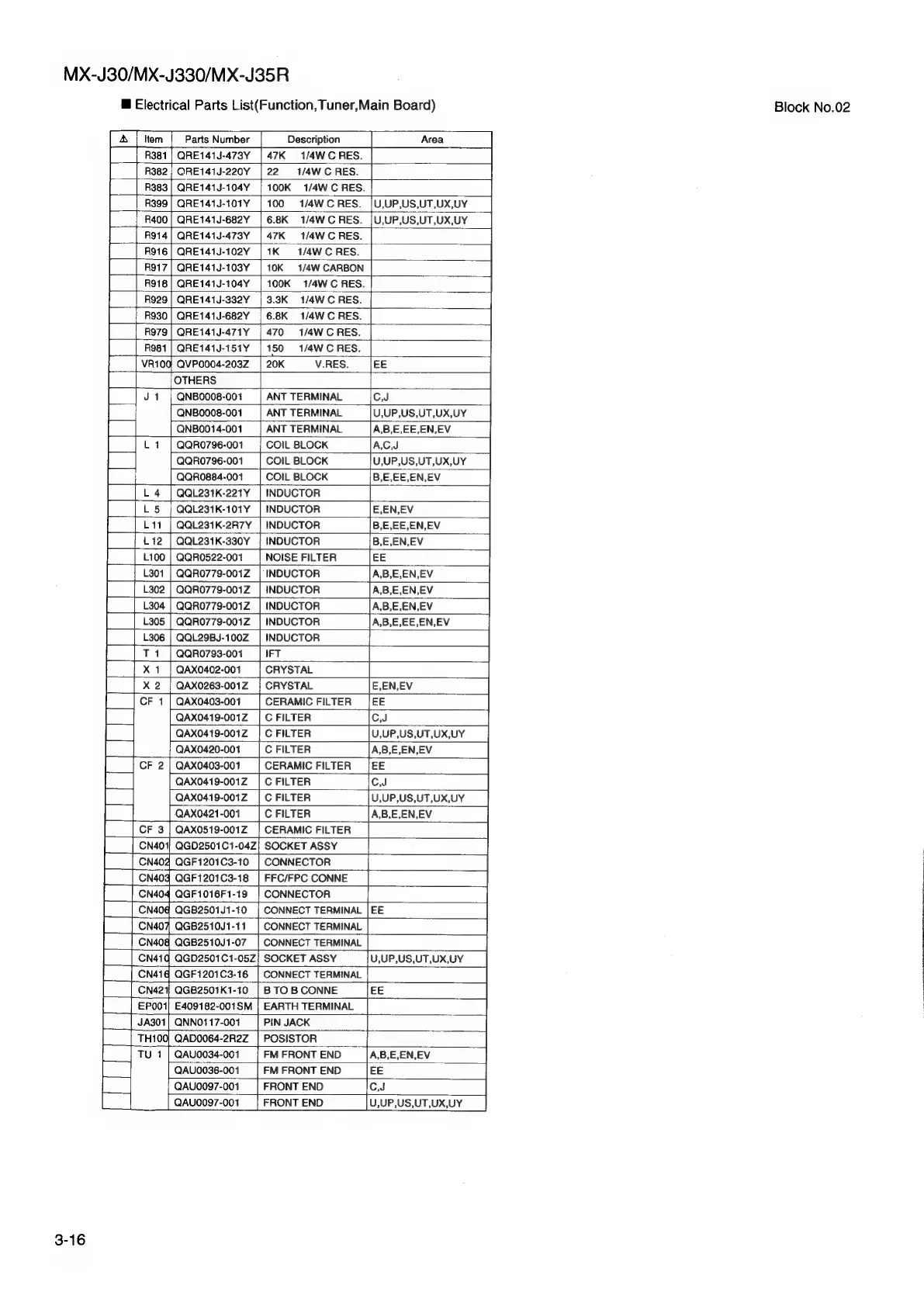

MX-J30/MX-J330/MX-J35R
3-16
@ Electrical Parts List(Function, Tuner,Main Board)
| & | Item Parts Number Description Area
R381} QRE141J-473Y | 47K 1/4WC RES.
R382; QRE141J-220Y | 22 1/4WC RES.
R383 | QRE141J-104Y | 100K 1/4WC RES.
if R399 | QRE141J-101Y | 100 1/4WCRES. {|U,UP,US,UT,UX,UY
R400 | QRE141J-682Y | 6.8K 1/4WC RES. |U,UP,US,UT,UX,UY
R914 | QRE141J-473Y | 47K 1/4WC RES. ‘I
R916 | QRE141J-102Y | 1K 1/4WC RES.
R917 | QRE141J-103Y | 10K 1/4W CARBON
R918 | QRE141J-104Y | 100K 1/4WC RES.
| R929 | QRE141J-332Y | 3.3K 1/4WC RES.
R930 | QRE141J-682Y | 6.8K 1/4WC RES.
R979 | QRE141J-471Y | 470 1/4WCRES.
R981 | QRE141J-151Y | 150 1/4W C RES.
vatod QVP0004-203Z | 20K V.RES. EE
+
OTHERS [
J 1 | QNBO008-001 ANT TERMINAL C.J
QNB0008-001 ANT TERMINAL U,UP,US,UT,UX,UY
QNB0014-001 ANT TERMINAL A,B,E,EE,EN,EV
L 1 | QQR0796-001 COIL BLOCK A,C,J
QQR0796-001 COIL BLOCK U,UP,US,UT,UX,UY
QQR0884-001 COIL BLOCK B,E,EE,EN,EV
L 4 | QQL231K-221Y | INDUCTOR
L 5 | QQL231K-101Y | INDUCTOR E,EN,EV
L11 | QQL231K-2R7Y | INDUCTOR B,E,EE,EN,EV
1 b12 | QQL231 K-330Y_| INDUCTOR B,E,EN,EV
L100 | QQR0522-001 NOISE FILTER
EE
L301 | QQR0779-001Z | INDUCTOR A,B,E,EN,EV
L302 | QQRO779-001Z_ | INDUCTOR A,B,E,EN,EV
L304 | QQRO779-001Z | INDUCTOR A,B,E,EN,EV
L305 | QQRO779-001Z | INDUCTOR A,B,E,EE,EN,EV
L306 | QQL29BJ-100Z | INDUCTOR
QQR0793-001 1FT
T1
X 1 | QAX0402-001 CRYSTAL
X 2 | QAX0263-001Z | CRYSTAL E,EN,EV
QAX0403-001 CERAMIC FILTER
QAX0419-001Z | C FILTER
QAX0419-001Z | C FILTER
QAX0420-001 C FILTER
QAX0403-001 CERAMIC FILTER
U,UP,US,UT,UX,UY
A,B,E,EN,EV
QAX0419-001Z_ | C FILTER C.J
QAX0419-001Z | C FILTER U,UP,US,UT,UX,UY
| QAX0421-001 C FILTER A,B,E,EN,EV
CF 3 | QAX0519-0012_| CERAMIC FILTER
CN401] QGD2501C1-04Z| SOCKET ASSY
CN40q QGF1201C3-10 | CONNECTOR
CN40q QGF1201C3-18 | FFC/FPC CONNE
[en4o4 QGF1016F1-19 | CONNECTOR
CN406 QGB2501J1-10 { CONNECT TERMINAL EE
CN407, QGB2510J1-11 | CONNECT TERMINAL
| CN40q QGB2510J1-07 | CONNECT TERMINAL
CN41d QGD2501C1-05Z| SOCKET ASSY___|U,UP,US,UT,UX,UY
[enat@ QGF120103-16 | CONNECT TERMINAL
CN421| QGB2501K1-10 |BTOBCONNE [EE
EP001] £409182-001SM | EARTH TERMINAL
Tgaao1] QNNO117-001__| PIN JACK
TH100} QAD0064-2R2Z | POSISTOR {
TU 1 | QAU0034-001 FM FRONT END A,B,E,EN,EV
| QAU0036-001 FM FRONT END EE
QAU0097-001 FRONT END C.J
QAU0097-001 FRONT END U,UP,US,UT,UX,UY
Block No.02
