MX-J570V/MX-J680V
1-19
Prior to performing the following procedure, remove
the metal cover and the CD changer mechanism
assembly.
Disconnect the card wire from connector CN101 and
CN102 on the super VCD control board.
Remove the two plastic rivets attaching the super
VCD control board.
1.
2.

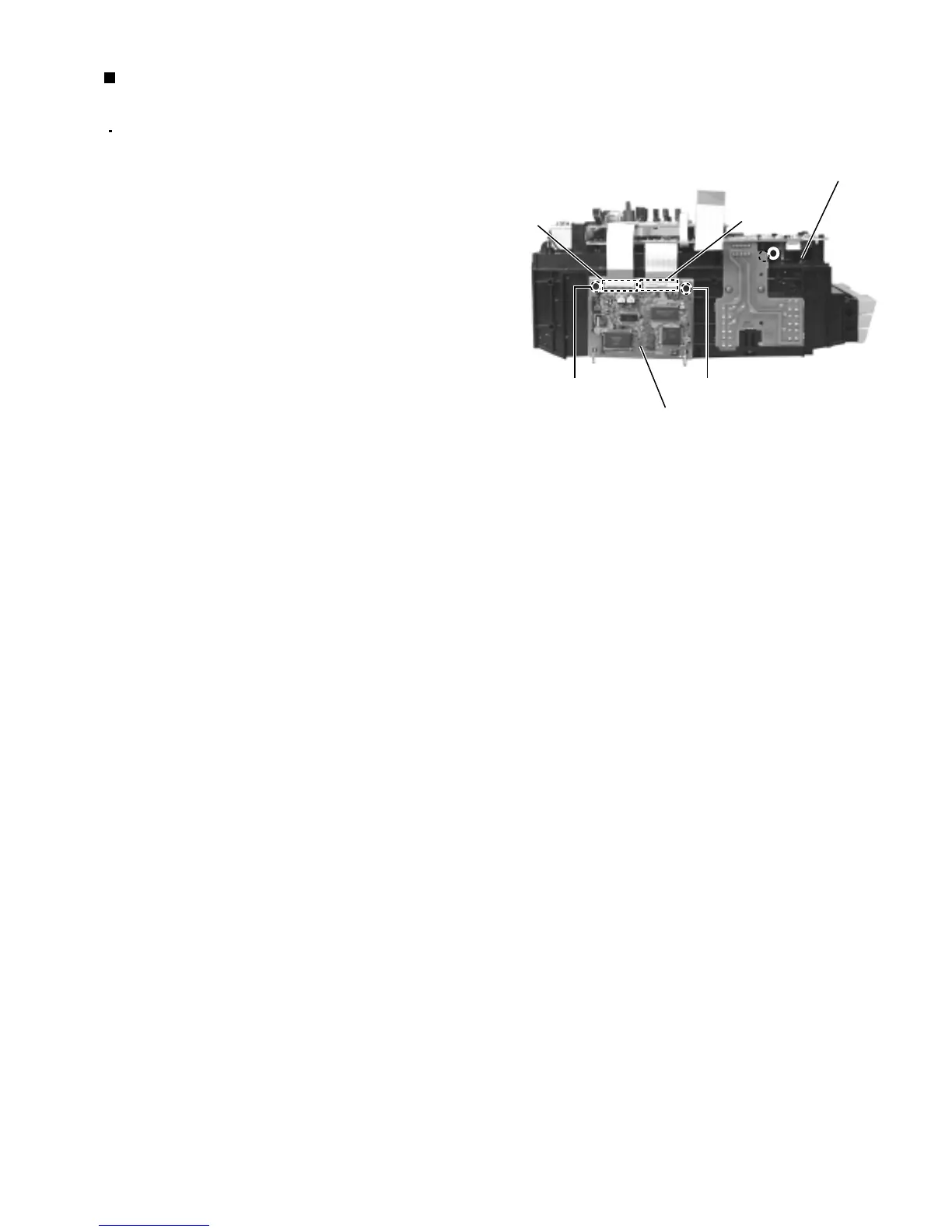

Removing the super VCD control board
(See Fig.41)
Fig.42
CD changer
mechanism assembly
Super VCD control board
Plastic rivet Plastic rivet
CN101
CN102
