3.1.16 Removing the cassette mechanism assembly
(See Fig.25)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
five screws Z, screw Z’ attaching the cassette mechanism
assembly.
(2) Take out the cassette mechanism assembly from the front
panel assembly.
Reference:
• When attaching the screw Y’, attach the earth wire with it.
• When attaching the screws Z, attach the swing cam (L)/(R)
with them.

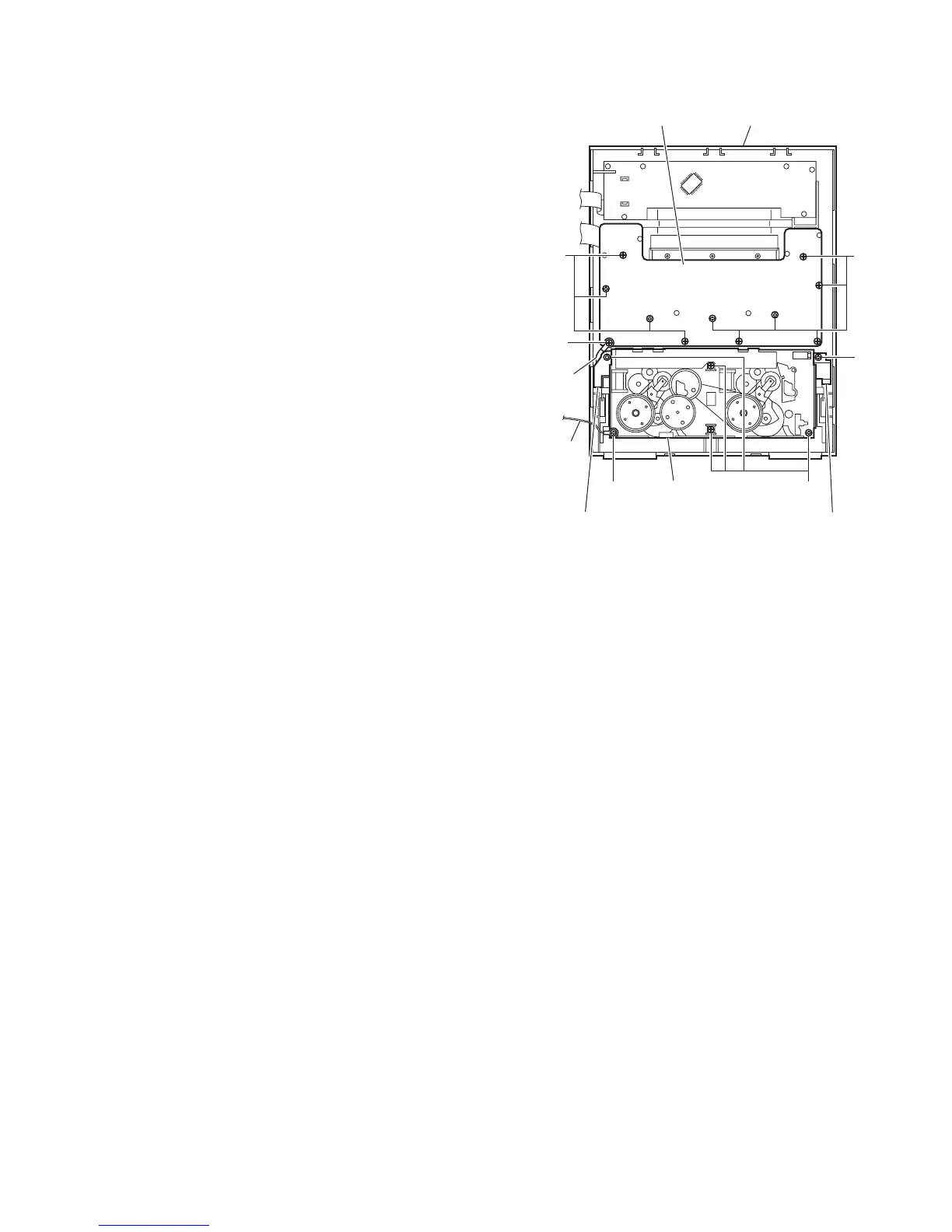

Fig.25
Y
Z
Z
Front panel assembly
Swing cam (R)
assembly
Earth
wire
Swing cam (L)
assembly
Cassette mechanism
assembly
Y
Switch board
Y'
Z'
Wire
holder
