Removing the switch PCB and sound
mode and CD function switch PCB

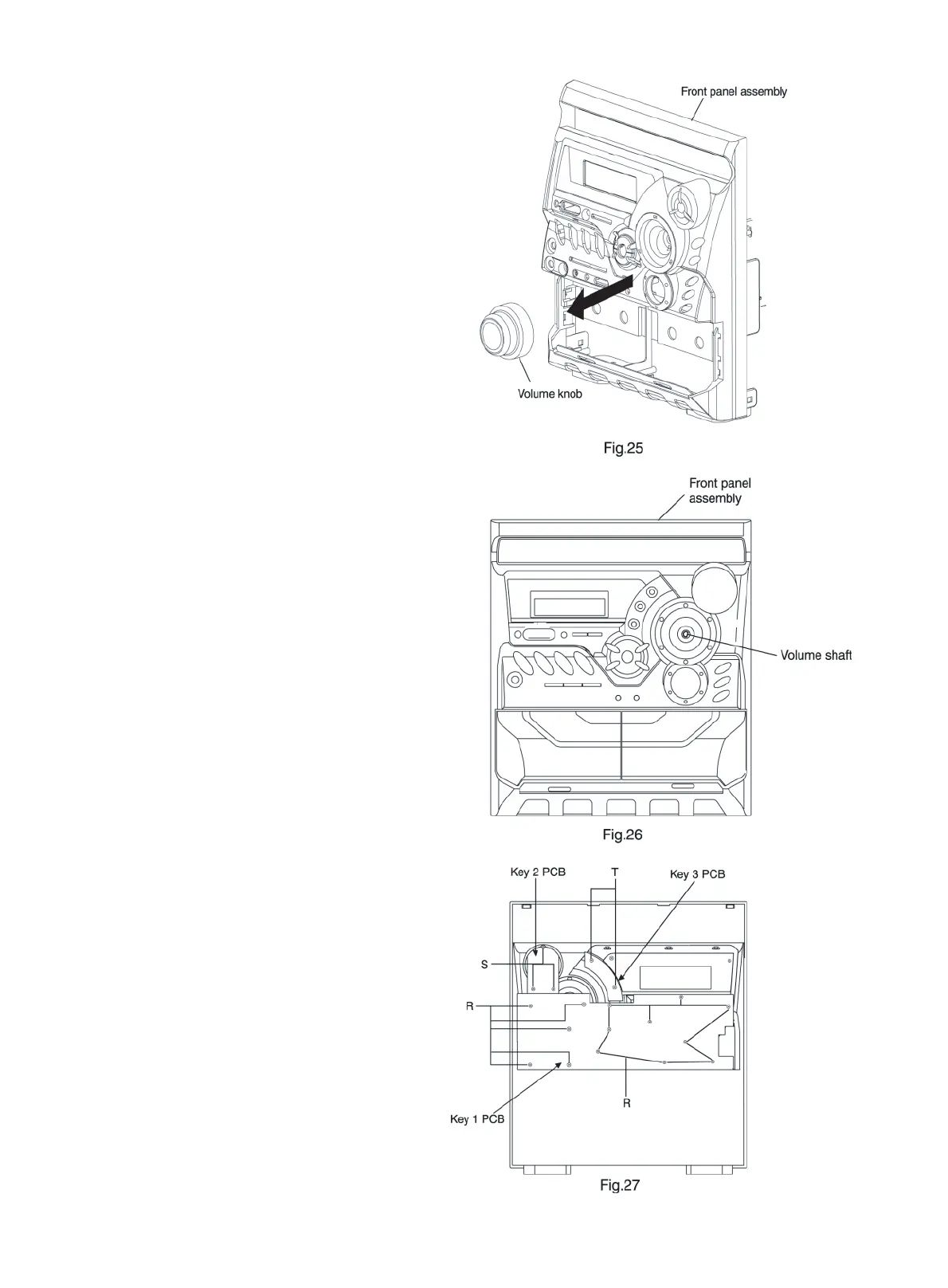

(See Fig.24 to 27)
Prior to performing the following procedures, remove
the top cover and both sides board.
Also remove the CD changer unit.
Also remove the front panel assembly.
1. Pull out the volume control knob from the front of the
front panel assembly.
2. Remove the four screws "Q" retaining the front panel
assembly.
3. Remove the control / FL PCB.
4. Remove the eleven screws "R" retaining the switch
(key 1) PCB.
5. Remove the three screws "S" retaining the sound mode
(key 2) switch PCB.
6. Remove two screws "T" retaining the CD function (key
3) switch PCB.
1-15
