1-17

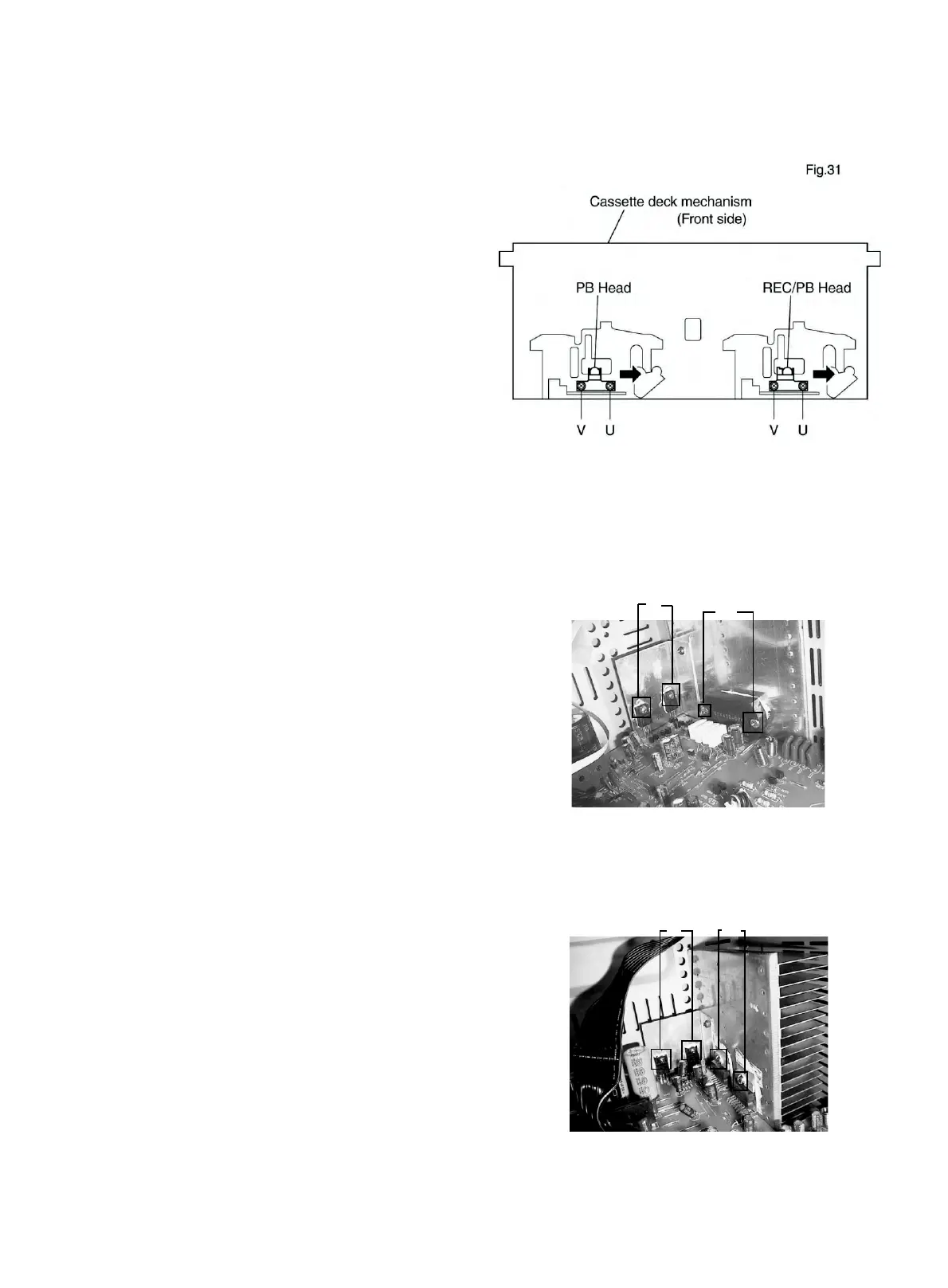

n Removing the cassette deck heads
(See Fig. 22 and 31)
n
Prior to performing the following procedures, remove
the top cover and both side board.
n
Also remove the CD changer unit.
n
Also remove the front panel assembly.
1. Remove the five screws "O" that retain the cassette
deck mechanism.
2. Remove the cassette deck mechanism and place it so
that the front side faces up.
3. Remove the solder from the bottom side of the head
terminal and disconnect the wire.
4. Remove the screw "U" that retains the head.
5. Remove the screw "V" that retains the head.
6. Hold the head and slide it in the direction of the arrow
to remove it.
n Removing the 3-pin regulator
(See Q904, Q907, 32 and 33)
n
Prior to performing the following procedures, remove
the top cover and both sides board.
1. Remove the two screws "A" that connect the heat
sink cover to the rear panel.
2. Pull the heat sink outward.
3. Remove the screw "W" that retains the heat sink the
3-pin terminal regulator Q904,Q907.
4. Remove the solder fixing the 3-pin regulator.
w
A
For CA-MX K30R Fig.32
A
W
For CA-MX K10R/K15R Fig. 33
