n Replacing the heat sink cover
1. Remove the six screws "B" from the back panel.
2. Pull the heat sink cover outward.
n Removing the top cover and two sides BOARD
(See Fig.5 and 6)
1. Remove the six screws "C" that retain the top cover from the
rear of the body.
2. Remove the eight screws "C" and "D" that retain the top from
the two sides of the body.
3. Remove the top cover from the body by lifting it toward the
rear.
BB
B

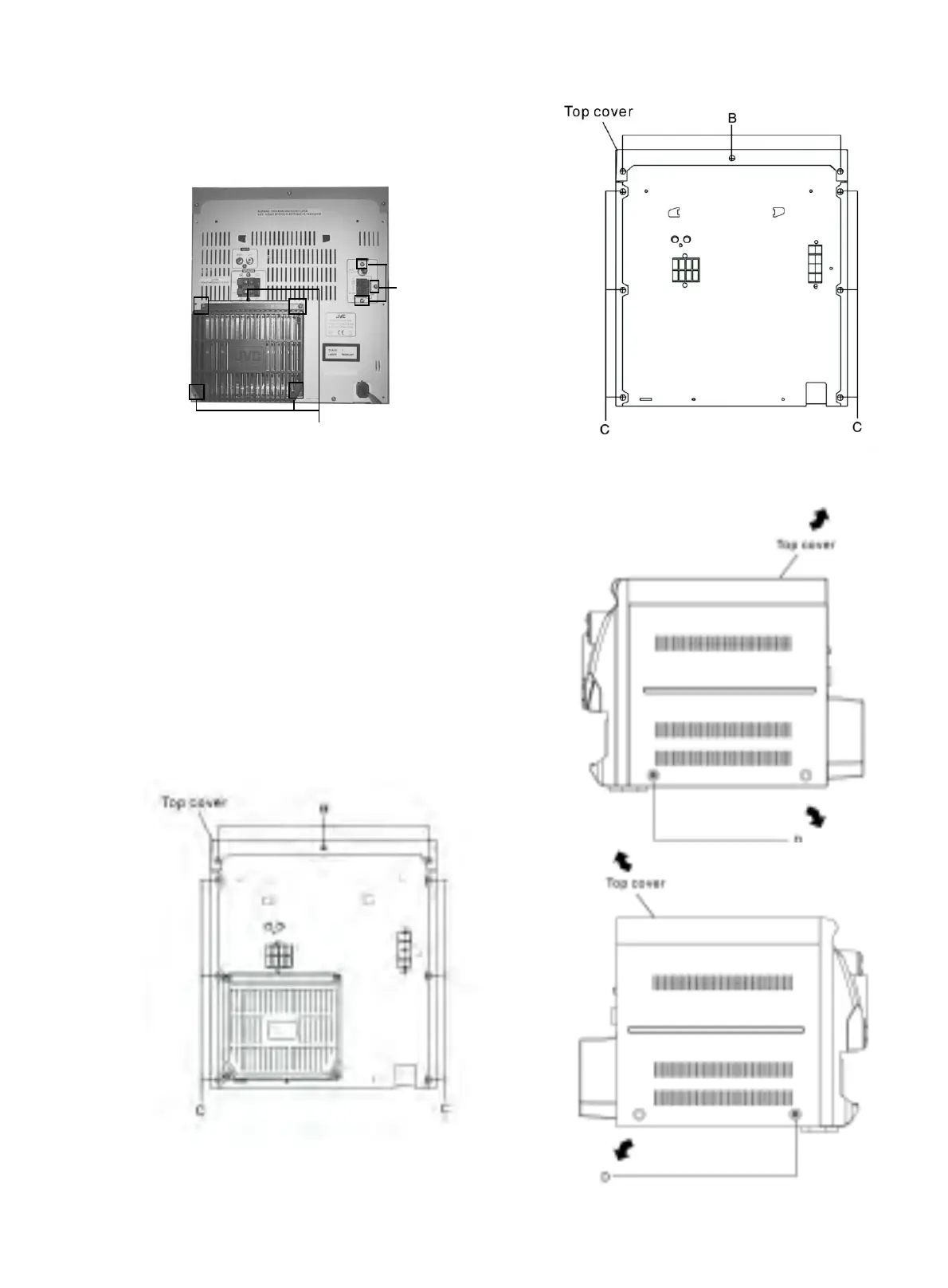

For CA-MXK30R Fig.4
For CA-MXK10R/K30R Fig.6(A)
For CA-MXK15R Fig.5(B)
For CA-MXK10R/K30R Fig.5(A)
