n Removing the CD changer unit

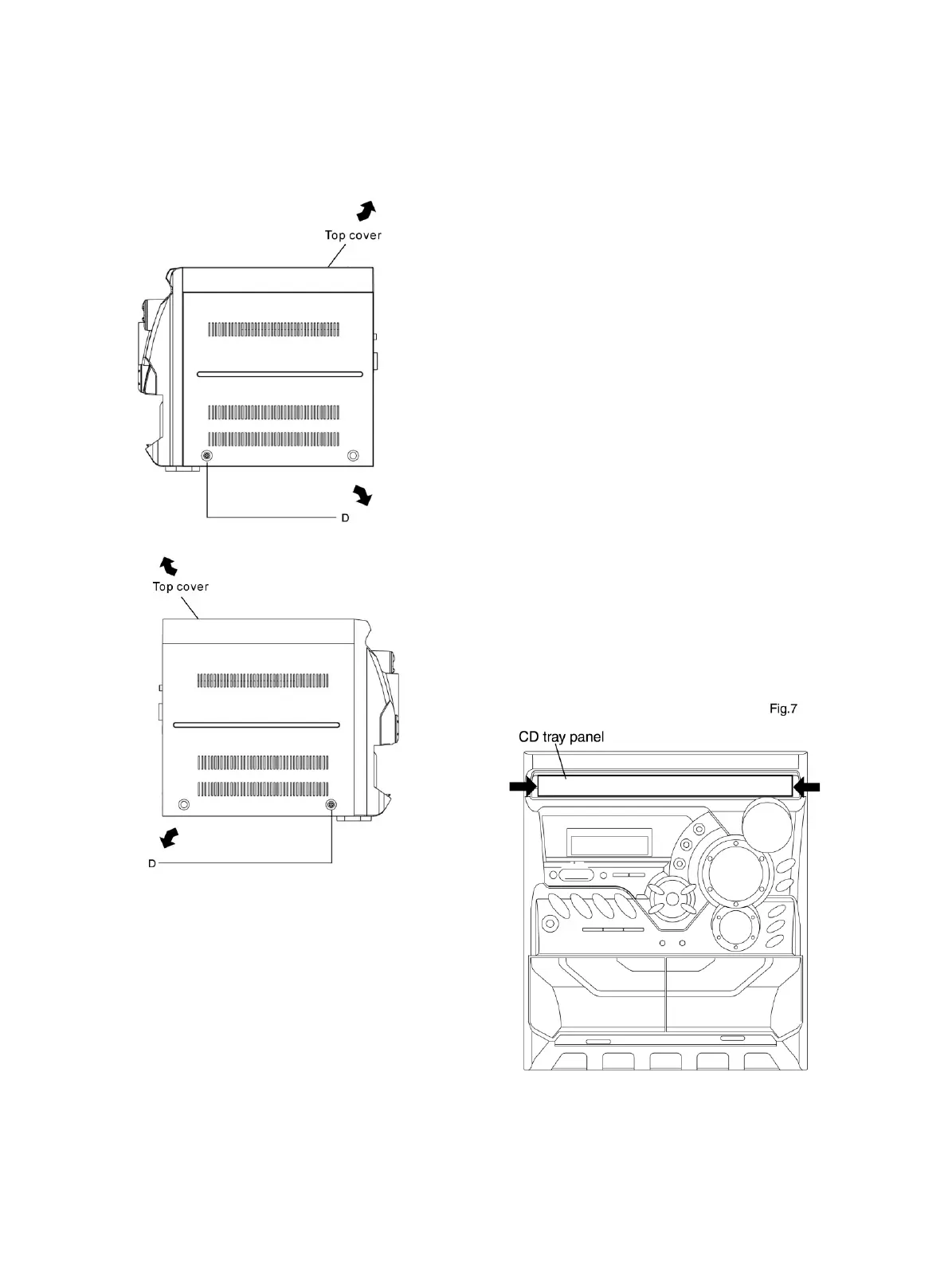

(See Fig.7 to 10)
n
Prior to performing the following procedures, remove
the top cover and both sides BOARD.
[Caution] Although the CD mechanism unit can be
removed without removing the CD tray
panel, it is still recommended to remove it
in order to prevent damage.
a. From the front panel side of this set, push in the sec-
tions marked with arrows and pull out the CD tray
toward the front.
b. Remove the CD tray panel by pushing both of its ex-
tremities upward in the direction of the arrows.
c. Push the CD tray deep into the set.
1. Disconnect the card wires from the CD PCB CN703
and CN203.
2. From the rear of the set, remove the two screws "E"
and two serews "G" on the front panel left and right
side.
3. Handle the CD changer unit rear, take out unit.
For CA-MXK15R Fig.6(B)
To Next Page
