1-14 (No.MB196)

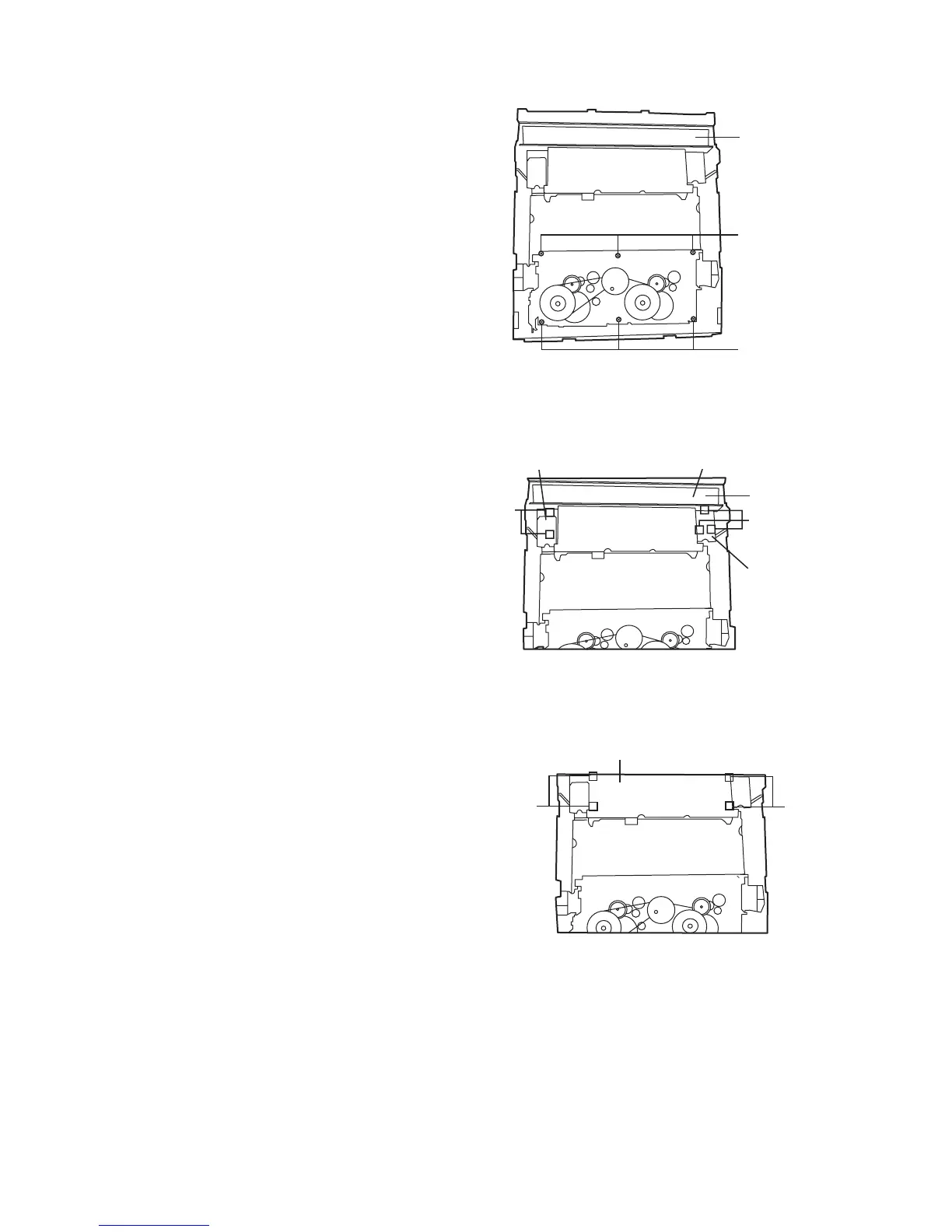

3.2.6 Removing the cassette deck mechanism
(See Fig.19)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove six screws Z retaining the cassette deck mecha-
nism.
Fig.19
3.2.7 Removing the Key open board & the Key rec board
(See Fig.20)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove two screws P that retains the Key open board.
(2) Remove three screws L that retains the Key REC board.
Fig.20
3.2.8 Removing the Display board
(See Fig.21)
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove six screws Q that retain the Display board from the
back of the front panel unit.
Fig.21
Z
Z
Front panel
assembly
Front panel
assembly
P
L
Front panel
assembly
Key open
board
Key REC
board
Q
Display
PCB
Q
