3.2.3 Removing the CD pickup
(See Fig.16)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the CD changer mechanism.
(1) Widen the section f.
(2) While keeping the section f wide open, push the section g
in the direction of the arrow to remove the shaft, and then
remove the CD pickup.

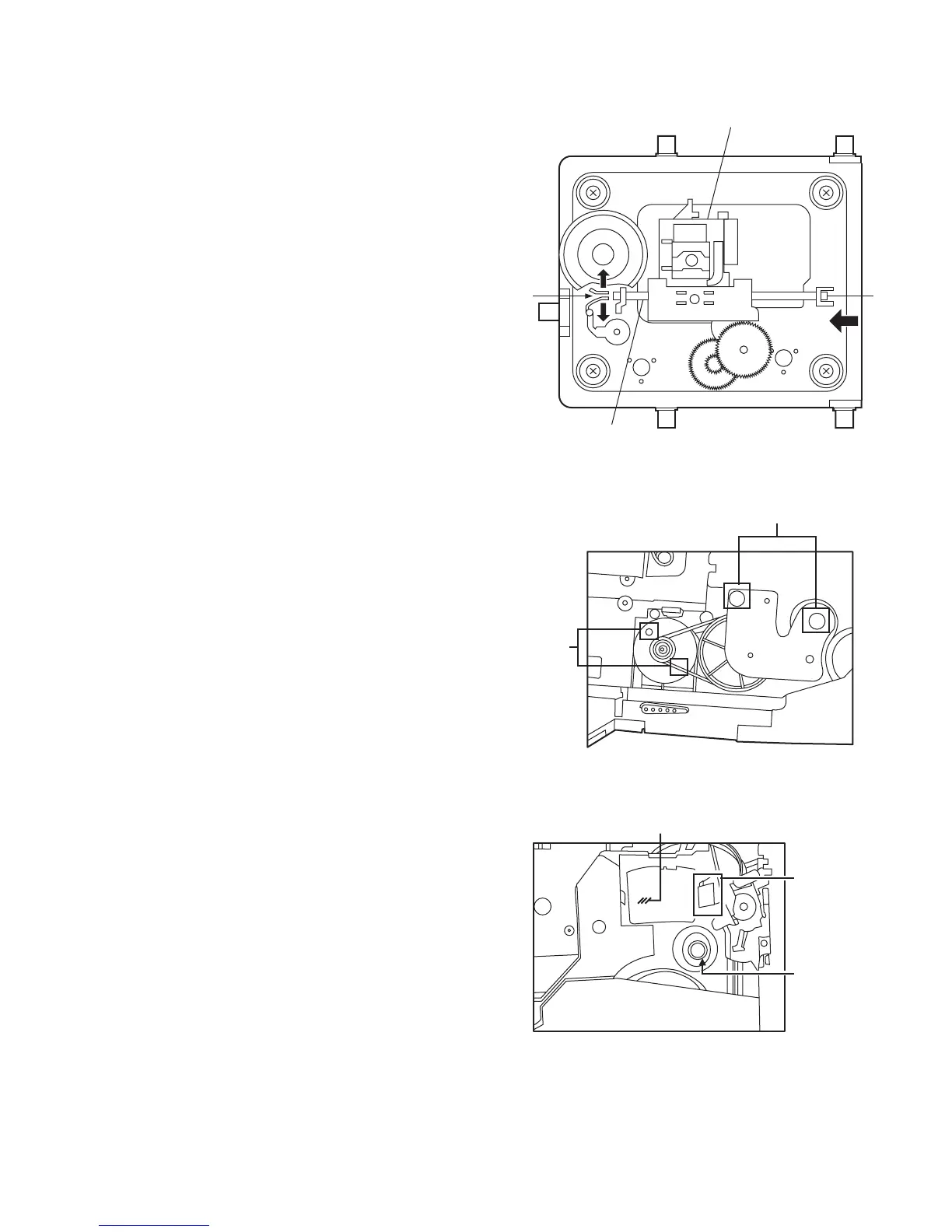

Fig.16
3.2.4 Replacing the loading motor and rotor belt of the CD changer
(See Fig .17)
• Prior to performing the following procedures, remove the top
cover.
• Also open the CD changer tray.
(1) Remove the two screws L retaining the CD changer tray
loading motor.
(2) Remove the two screws M retaining the gear plate and take
it out, after remove the rotor belt from the pulley.
Fig.17
3.2.5 Replacing the CD turn table and removing the motor
(See Fig.18 )
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
(1) Remove the one screws retaining the CD (Turn table).
(2) Remove the two screws retaining the stopper brackets on
both sides of the CD changer unit.
(3) Remove the stopper brackets from both sides of the CD
changer unit.
(4) Pull out the CD tray from the CD changer unit, all the way
and lift the tray to remove.
(5) Remove the gear and after push out the tray motor locker
and pull out the tray motor from the CD tray.
Fig.18
