1-10 (No.MB207)

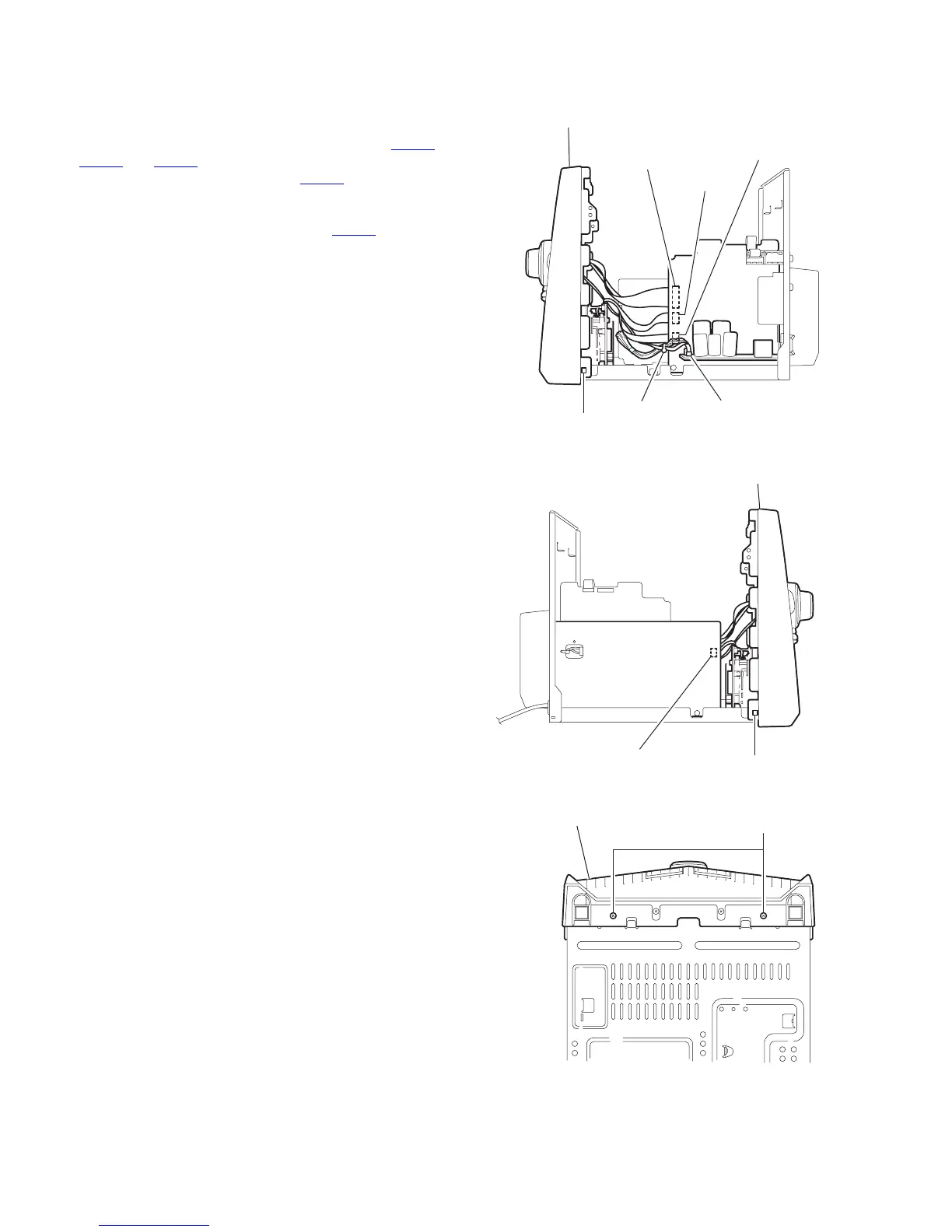

3.1.6 Removing the front panel assembly
(See Fig.14~16)
• Prior to performing the following procedure, remove the metal
cover and the CD changer unit.
(1) Disconnect the card wire from the connector CN315,
CN316
and CN870 on the main board.
(2) Disconnect the wire from connector CN702
on the speaker
board and remove the band attaching the wire to the main
board.
(3) Disconnect the wire from the connector CN214
on power
transformer board.
(4) Remove the two screws G attaching the front panel as-
sembly on the bottom of the body.
(5) Remove the two joints d and e on the lower part of the
sides using a screwdriver, and remove the front panel as-
sembly toward the front.
Fig.14
Fig.15
Fig.16
Main board
CN870
Speaker board
CN702
Front panel assembly
CN315
Band
d
CN316
Power transformer board
CN214
Front panel assembly
e
G
Front panel assembly
