3.1.5 Removing the CD board
(See Fig.11~13)
• Prior to performing the following procedure, remove the metal
cover and the CD changer unit.
Caution :
Before disconnecting the card wire extending from the CD
pickup, make sure to solder the short-circuit point on the CD
pickup(Fig.12 and 13). If you do not follow this instruction,
the CD pickup may be damaged.
(1) Remove the four screws F attaching the CD board on the
bottom of the CD changer unit.
(2) Turn and move the CD board as shown in Fig.12.
(3) Disconnect the wire from the CD mechanism board.
(4) Solder the short-circuit point on the CD pickup section.
(5) Disconnect the card wire from CN601
on the CD board.
Caution :
When reassembling, unsolder the short-circuit point after con-
necting the card wire to CN601
on the CD board.

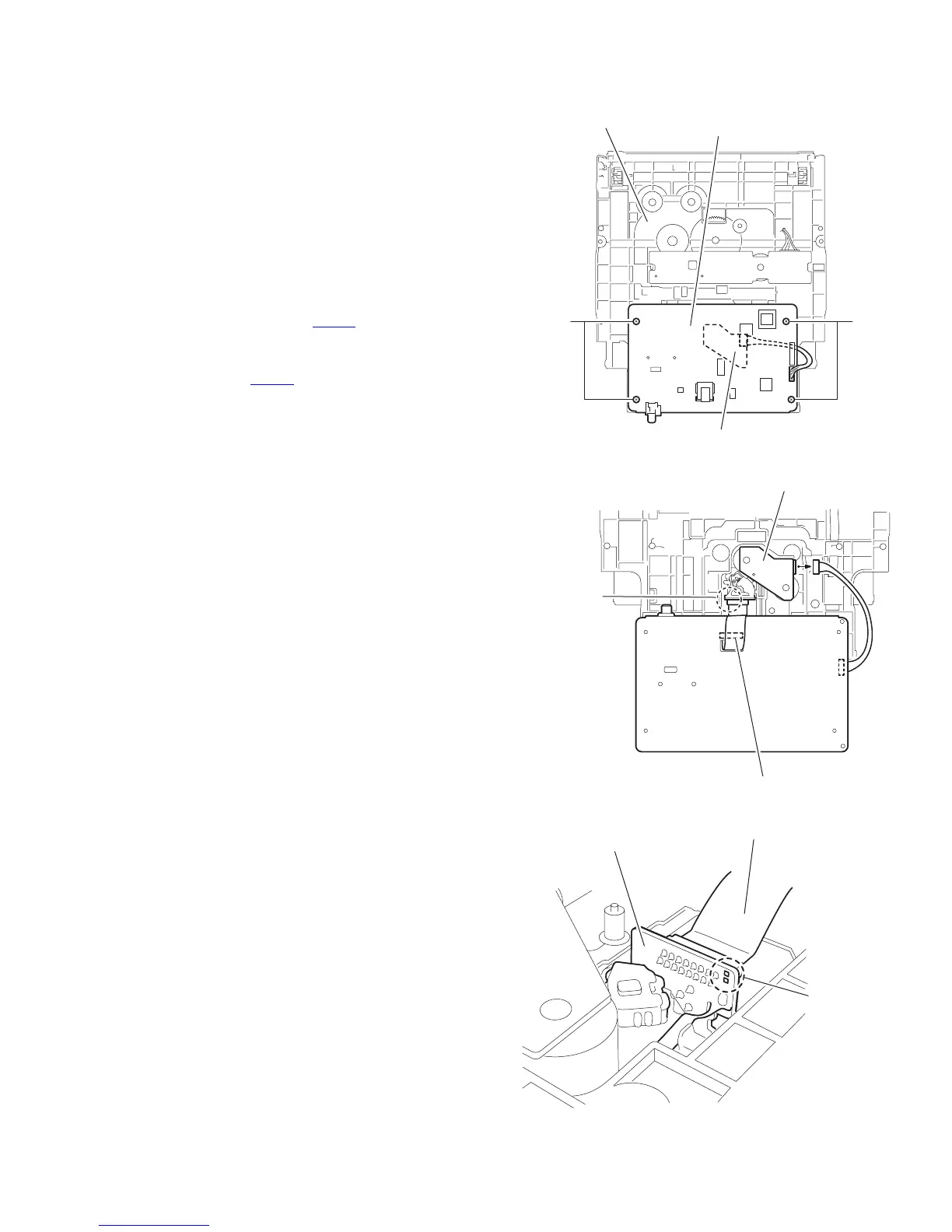

Fig.11
Fig.12
Fig.13
CD board
CD mechanism board
CD changer unit
FF
CD mechanisum board
CD board (CN601)
Short round
(Short-circuit)
Pick up
Card wire
Short round
(short-circuit)
To Next Page
