(No.MB207)1-15
3.1.11 Removing the power transformer assembly
(See Fig.30~32)
• Prior to performing the following procedure, remove the metal
cover, and the CD changer unit, the rear panel, the speaker
board.
(1) Disconnect the wire from connector CN21
on the power
transformer board.
(2) Remove the screw A' attaching the power transformer
board on the left side of the body.
(3) Remove the four screws B' attaching the power transform-
er board.
(4) Push the cord stopper upward and remove.
(5) Disconnect the power cord from connector CN250
on the
power transformer board and remove the band.
(6) Remove the power transformer assembly upward.

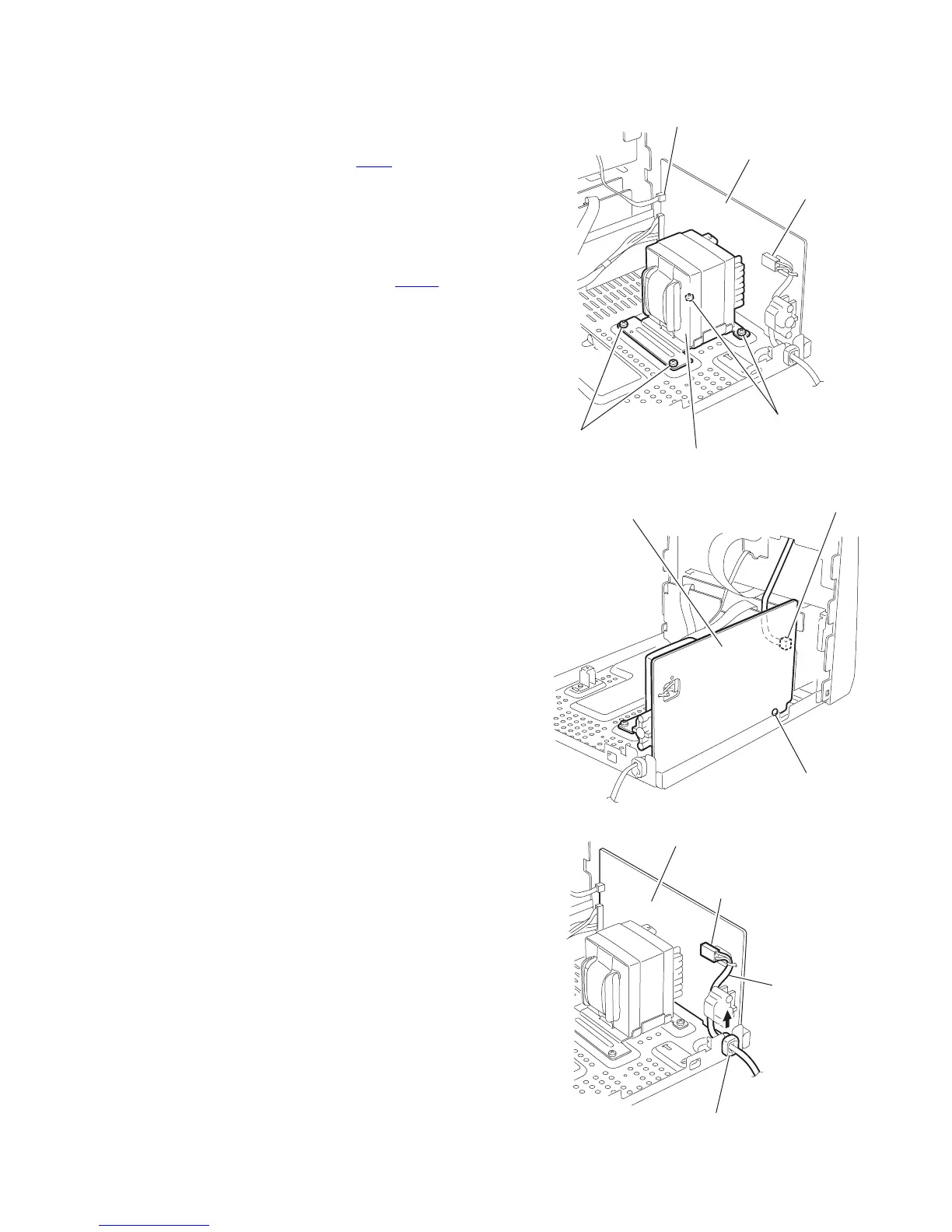

Fig.30
Fig.31
Fig.32
B'
CN250
CN214
Power transfomer board
Power transfomer assembly
B'
A'
CN214
Power transfomer board
CN250
Power cord stopper
Power cord stopper
Power cord
To Next Page
