1-16 (No.MB207)
3.2 Front panel assembly
• Prior to performing the following procedure, remove the metal cover, the CD changer unit and the front panel assembly.
3.2.1 Removing cassette mechanism assembly
(See Fig.33,34)
(1) Remove the eight screws D' attaching the cassette mech-
anism assembly.
3.2.2 Removing the LCD board
(See Fig.34)
(1) Disconnect the card wire from the connector CN880
on the
LCD board.
(2) Remove the nine screws E' attaching the LCD board.

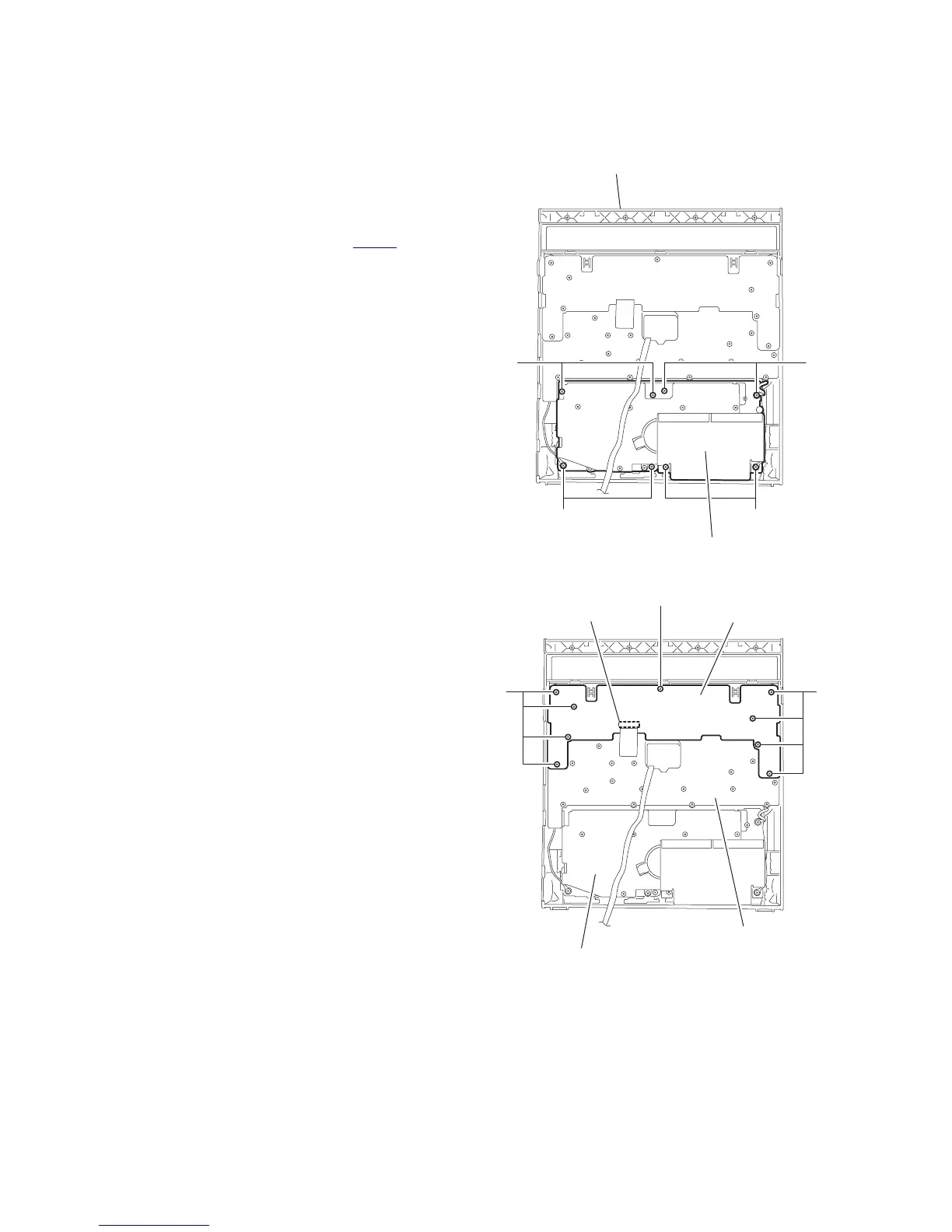

Fig.33
Fig.34
D'D'
D'D'
Cassett mechanism assembly
Front panel assembly
E'
E'
E'
Cassett mechanism assembly
CN880
Swithc board
LCD board
To Next Page
