(No.MB207)1-17

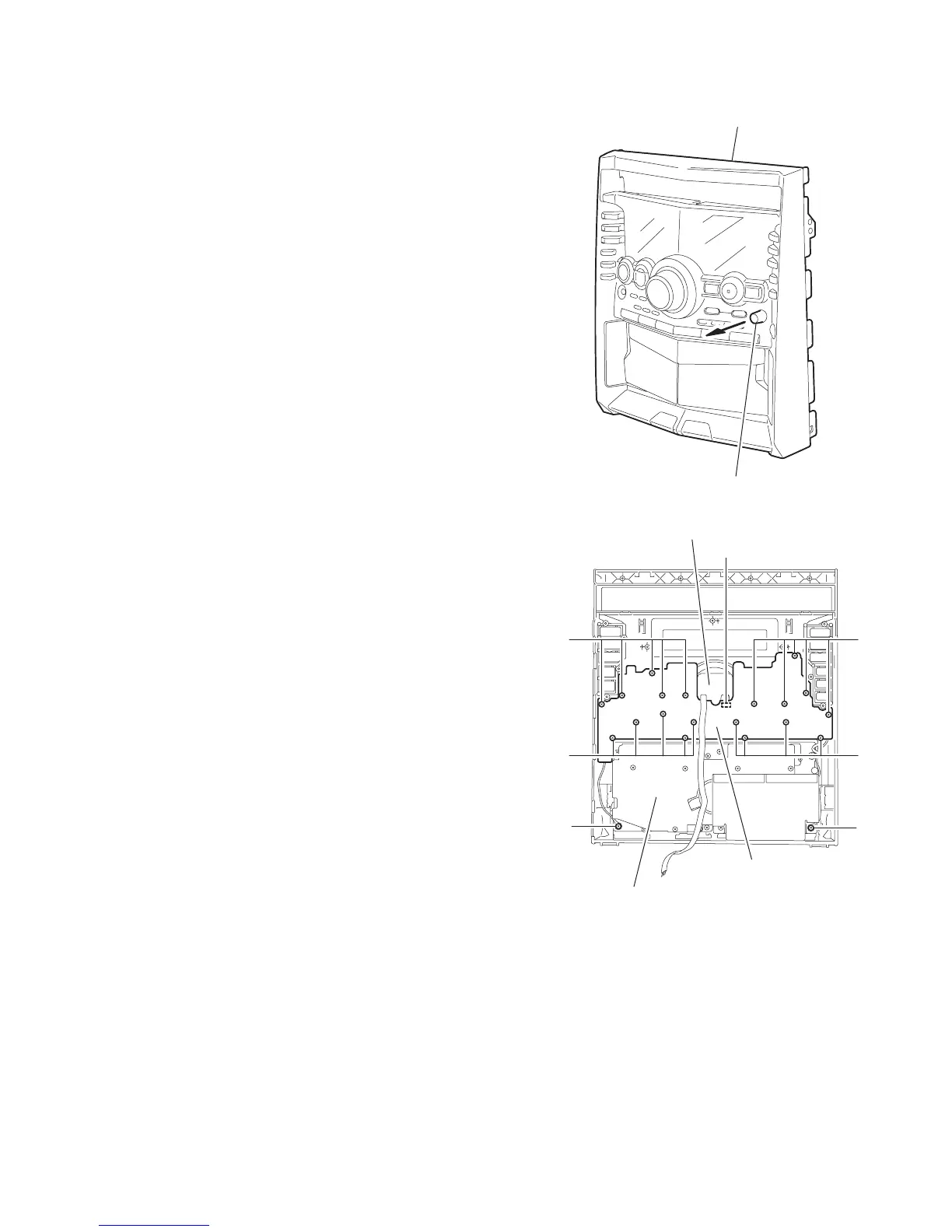

3.2.3 Removing the switch board
(See Fig.35,36)
• Prior to performing the following procedure, remove the LCD
board.
(1) Pull out the MIC level knob from the front of the front panel
assembly.
(2) Remove the two screws D' attaching the two wires on the
bottom of the front panel assembly.
(3) Remove the ninteen screws F' attaching the switch board.
(4) Unsolder the wire on the switch board at FW800 point.
Fig.35
Fig.36
Front panel assembly
MIC level knob
F'
F'
D'
F'
F'
D'
Cassette mechanism assembly
Swithc board
Volume board
FW800
To Next Page
