JVC MX-SK1 Service Manual

1-18 (No.MB207)
3.2.4 Removing the volume board
(See Fig.37,38)
• Prior to performing the following procedure, remove the LCD
board and the switch board.
(1) Pull out the volume knob from the front of the front panel
assembly.
(2) Remove the nut from the front panel assembly.
(3) Release the volume board from the tab and remove.

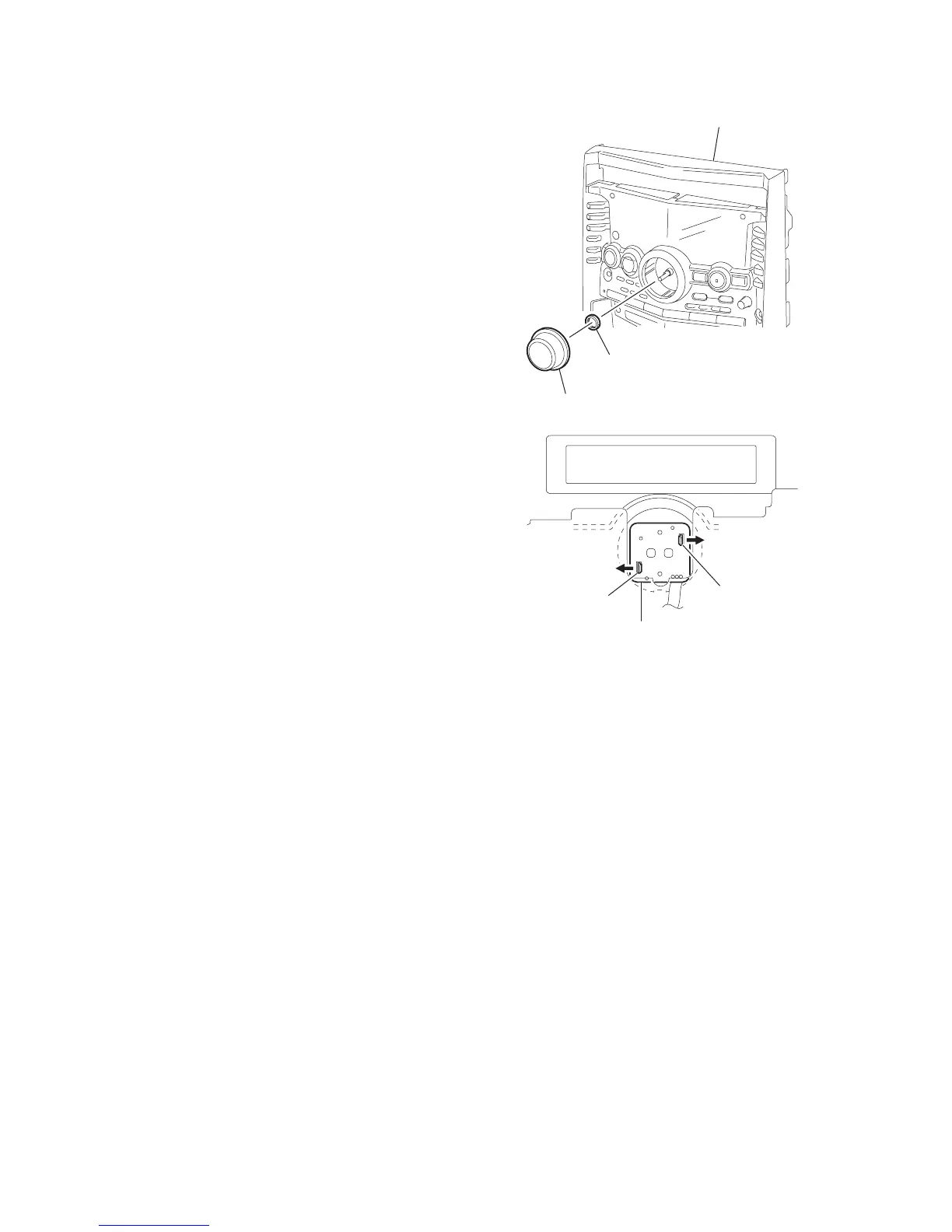

Fig.37
Fig.38
Front panel assembly
Nut
Volume knob
Volume board
Tab
Tab
