JVC MX-SK1 Service Manual

(No.MB207)1-19
3.3 CD changer unit
• Prior to performing the following procedure, remove the CD changer unit.

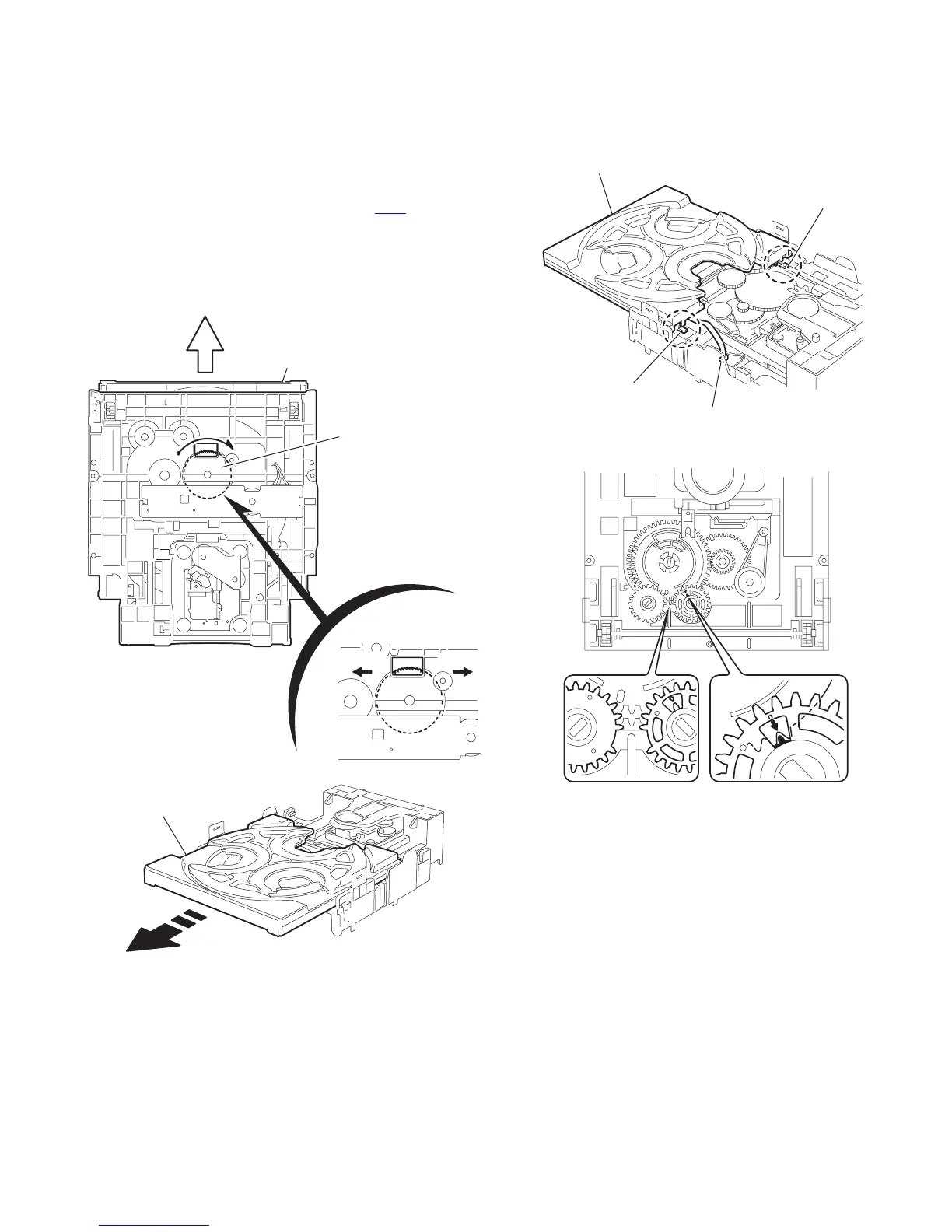

3.3.1 Removing the CD tray
(See Fig.39~45)
(1) Turn the loading pulley gear on the under side of the CD
changer unit in the direction of the arrow and draw the CD
tray toward the front until it stops.
(2) Disconnect the card wire from connector CW2
of the motor
board on the upper side of the CD changer unit.
(3) Push down the two tray stoppers and pull out the CD tray.
Reference:
When reassembling, set each gear as shown in Fig.42 and in-
sert the CD trays as shown in Fig.43.
Fig.39
Fig.40
Fig.41
Fig.42
CD tray
Loading
pulley gear
CLOSE
OPEN
CD tray
Tray stoppe
r
Tray stopper
Motor board
CW2
CD Tray
