(No.MB207)1-21
3.3.2 Removing the sensor board / tray motor
(See Fig.44~47)
• Prior to performing the following procedure, remove the CD
tray.
(1) Release the two tabs attaching the sensor board on the un-
der side of the DC tray.
(2) Disconnect the wire from connector on the sensor board.
(3) Pull out the spacer attaching the turn table at the part m.
(4) Push the tab of part m inward to release the turn table
from the CD tray.
(5) Push the tab of part n inward to release the gear from the
CD tray.
(6) On the upper side of the CD tray, extend the tab p attach-
ing the tray motor and remove the tray motor in the direc-
tion of the arrow.

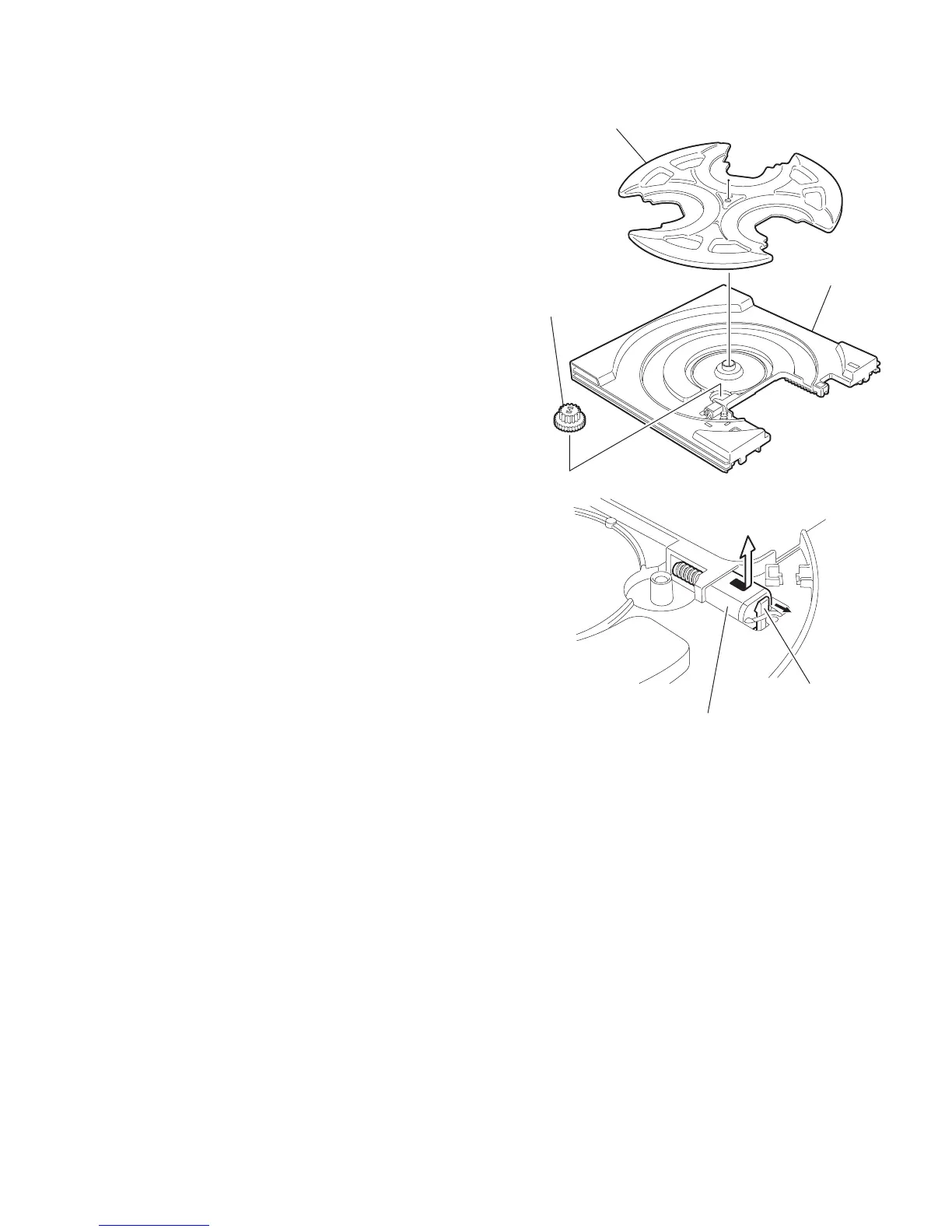

Fig.46
Fig.47
CD Tray
Gear
Turn table
Tab p
Tray motor
To Next Page
