JVC MX-SK1 Service Manual

(No.MB207)1-23

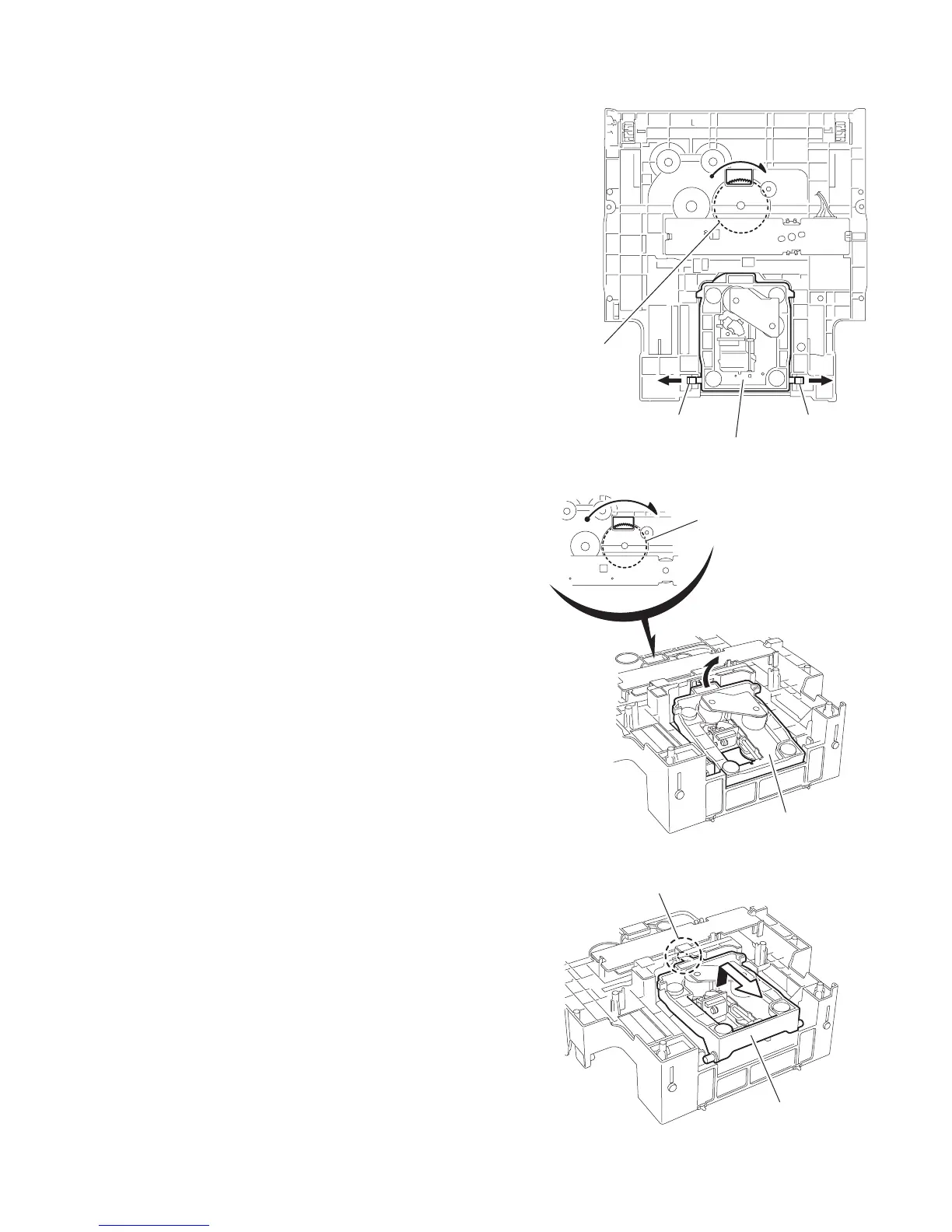

3.3.4 Removing the CD mechanism holder assembly (mechanism included)
(See Fig.51~53)
(1) On the bottom of the CD changer unit, turn the loading pul-
ley gear in the direction of the arrow and move the CD
mechanism holder assembly as shown in Fig. 52.
(2) Pull outward the two stoppers setting the shafts on both
sides of the CD mechanism holder assembly, and remove
the CD mechanism holder assembly in the direction of the
arrow.
Fig.51
Fig.52
Fig.53
Loading
pulley gear
CD mechanism
holder assembly
Stopper Stopper
Loading
pulley gear
CD mechanism
holder assembly
CD mechanism
holder assembly
List map slide shaft
