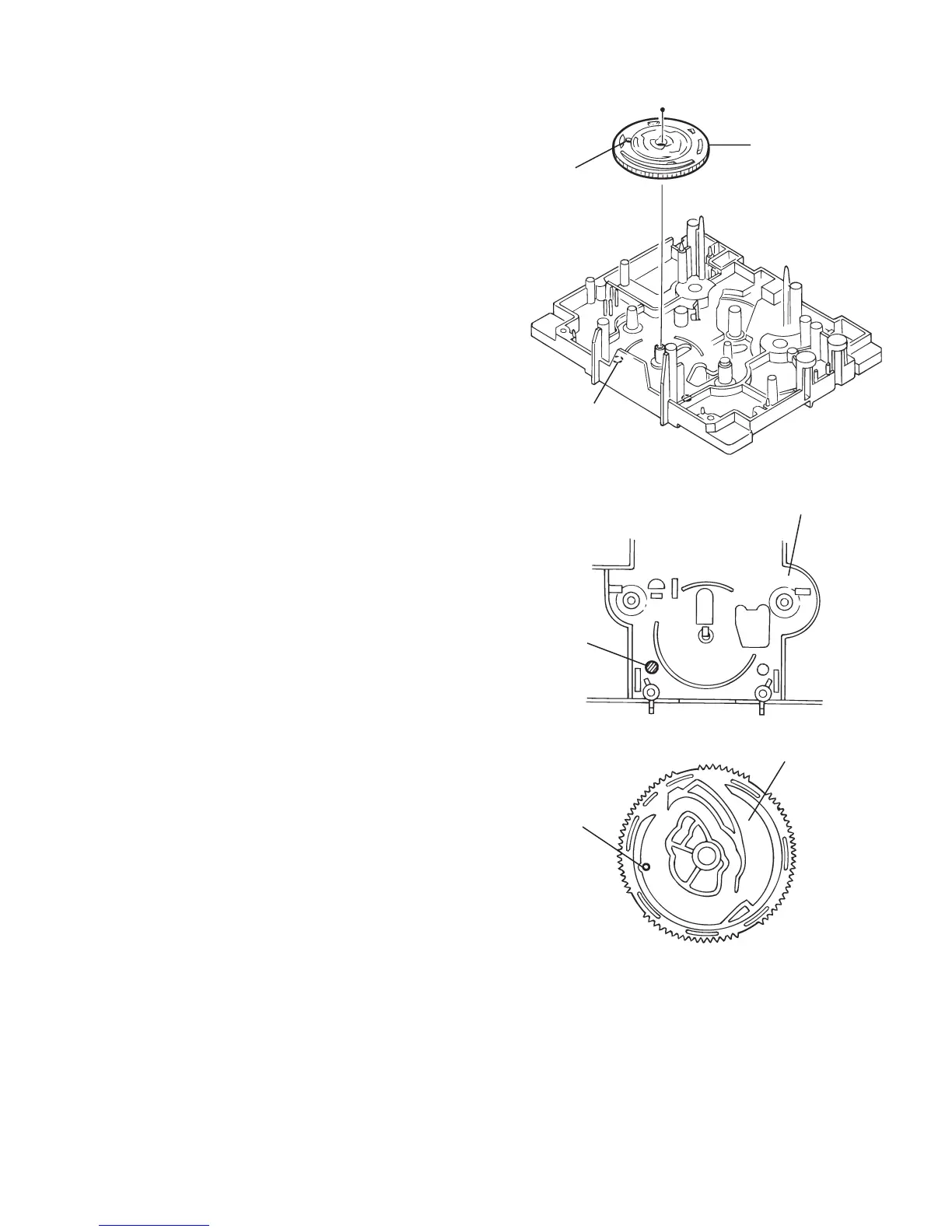

3.4.8 Reassembling the control cam
(See Fig. 15 to Fig. 17)
(1) Shift to left side (forward direction) the head mount
assembly, hole K’ of control cam into the hollow K of the
mechanism sub assembly.
Fig.15
Fig.16
Fig.17
K'
K
Control cam
(hole)
Mechanism sub
assembly (top side)
K
Control cam (top side)
(hole)
K
