NX-MD1R/NX-MD1
1-4

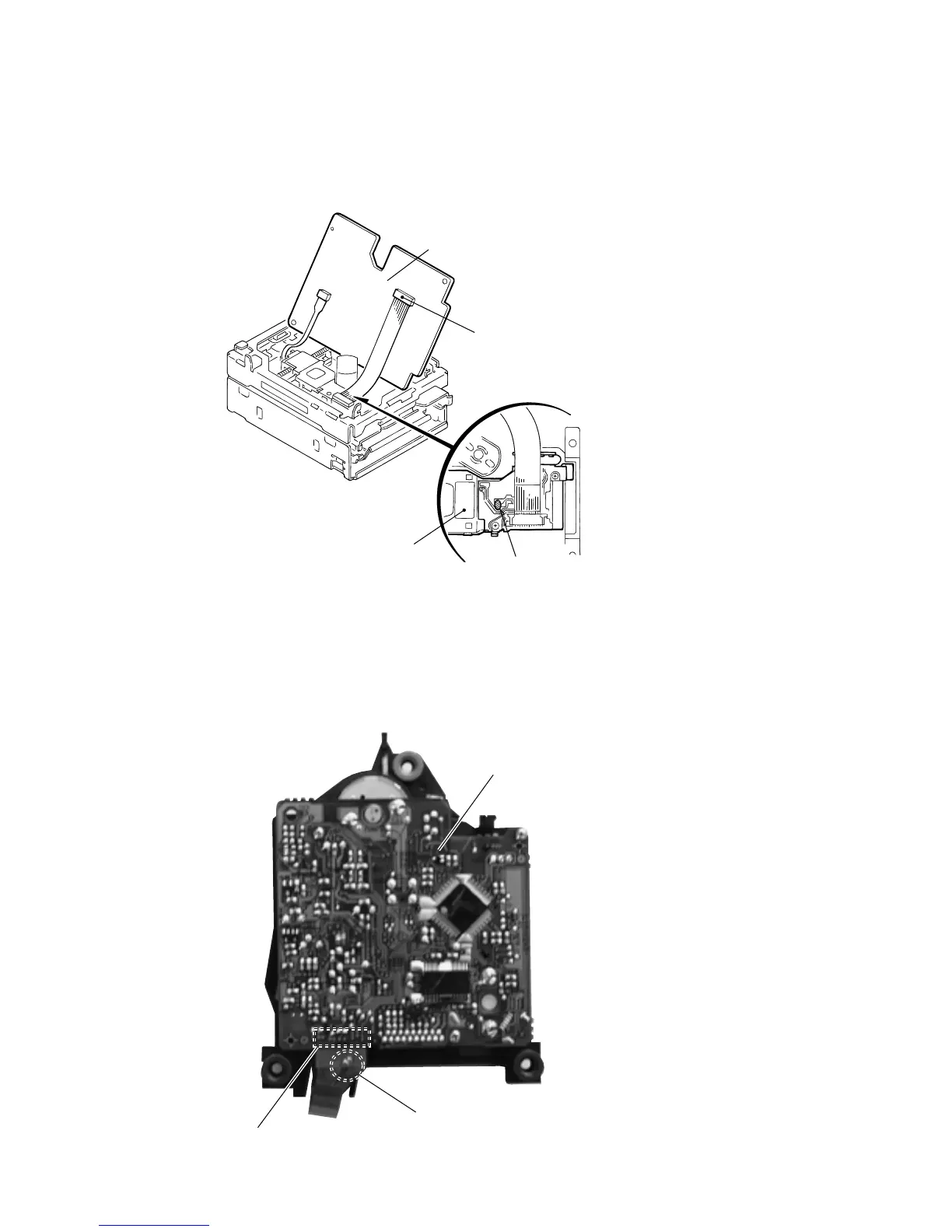

1.Short the shorting round before the flexible wire is removed from connector CN321 on the MD servo board
as shown in Figure.
(When the wire is removed without putting up solder, the MD pick-up assembly might destroy.)
2.Please remove solder after connecting the flexible wire with when you install picking up in the substrate.
*Please refer to "Disassembly method" in the text for pick-up and how to detach the substrate.
5. Attention when MD traverse unit is decomposed
6. Attention when CD traverse unit is decomposed
*Please refer to "Disassembly method" in the text for pick-up and how to detach the substrate.
1.Short the s
horting round before the flexible wire is removed from connector CN601 on the CD servo board
as shown in Figure.
(When the wire is removed without putting up solder, the CD pick-up assembly might destroy.)
2.Please remove solder after connecting the flexible wire with when you install picking up in the substrate.
*Please refer to "Disassembly method" in the text for pick-up and how to detach the substrate. *Please refer to "Disassembly method" in the text for pick-up and how to detach the substrate.
CN321
Pickup
Shorting round
MD servo control board
Shorting round
CN601
CD servo board
