NX-MD1R/NX-MD1
1-6

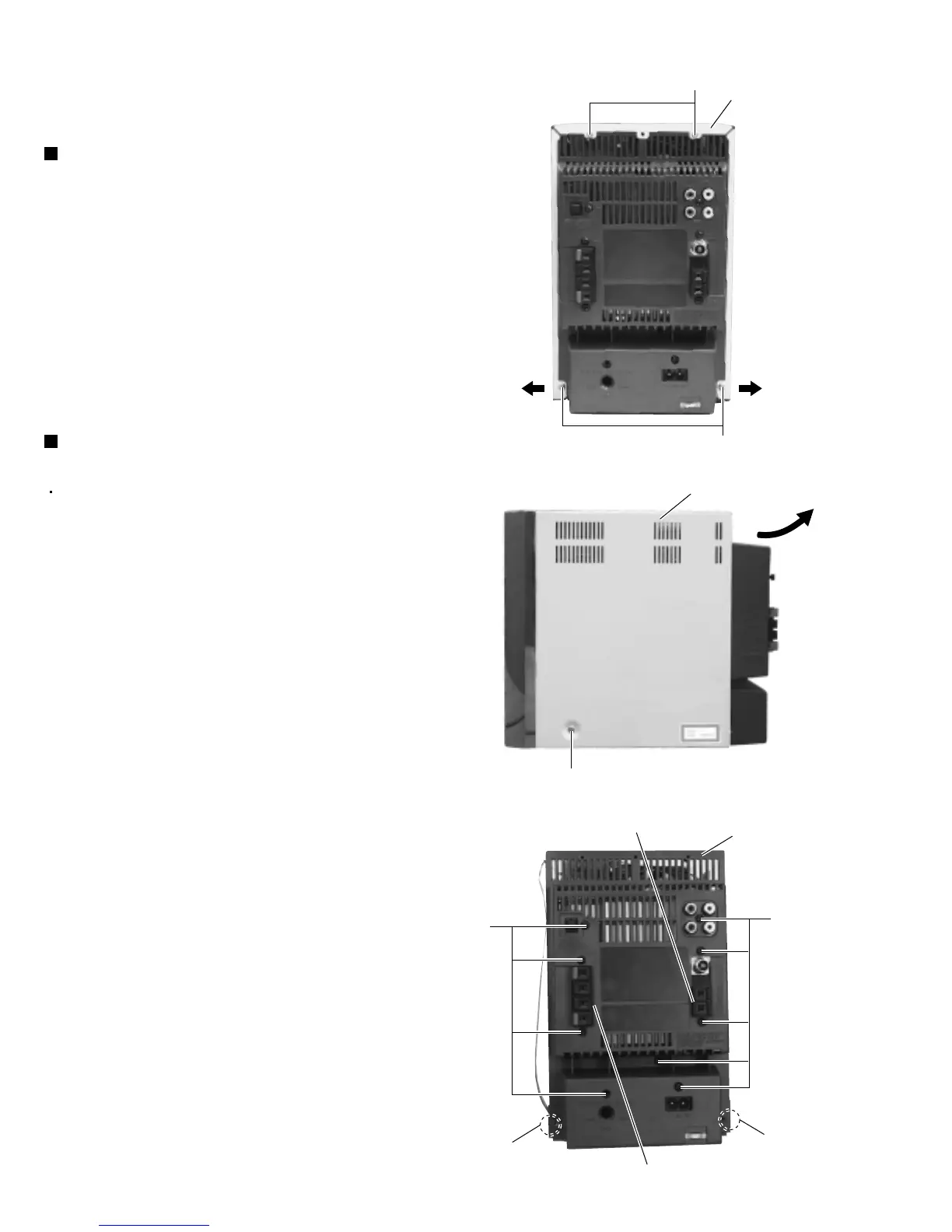

Removing the top cover
(See Fig.1 and 2)
1.
2.
3.
Remove the four screws A attaching the top cover
from the back side of the main body.
Remove the two screws B attaching the top cover
from the both sides of the main body.
Remove the top cover from the main body while
lifting up the back side of the top cover.
1.
2.
3.
Prior to performing the following procedure, remove
the top cover.
Remove the nine screws C attaching the rear cover
from the back side of the main body.
Set the speaker and antenna terminals to the
locked condition.
Disengage the claws a of the rear cover from the
chassis and remove the cover toward the rear.
Removing the rear cover (See Fig.3)
<Main body section>
Disassembly method
B
Fig.1
Fig.2
Fig.3
A
Top cover
A
Antenna terminal
Rear cover
C
Claw a
Speaker terminal
C
Claw a
Top cover
