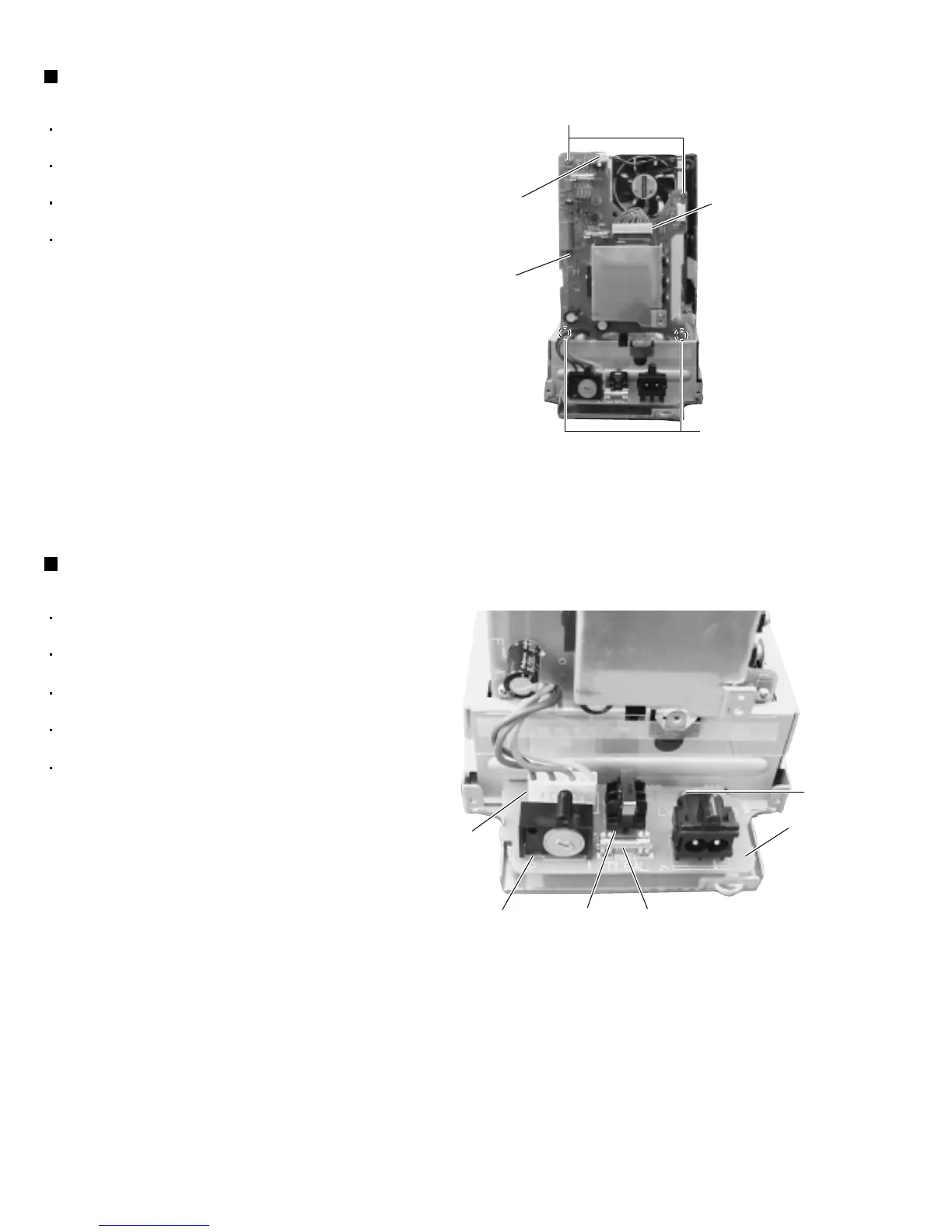

Removing the regulator board
(See Fig.7)
Removing the AC jack board
(See Fig.8)
Fig.8
Fig.7
1.
2.
Prior to performing the following procedure, remove
the top cover.
Prior to performing the following procedure, remove
the rear cover.
Prior to performing the following procedure, remove
the system control board.
Prior to performing the following procedure, remove
the main amplifier board.
Remove the two screws K and two screws L
attaching the regulator board.
Disconnect the wires from connectors CN903 and
CN995 on the regulator board.
1.
2.
Prior to performing the following procedure, remove
the top cover.
Prior to performing the following procedure, remove
the rear cover.
Prior to performing the following procedure, remove
the system control board.
Prior to performing the following procedure, remove
the main amplifier board.
Prior to performing the following procedure, remove
the regulator board.
Remove the screw M attaching the AC jack board.
Disconnect the wire from connector CN921 on the
AC jack board.
K
L
CN995
Regulator
board
CN903
M
AC jac
k
board
CN921
Voltage
Selector
LF901
F9001
