JVC NX-T10 Service Manual

1-2 (No.MB707<Rev.002>)

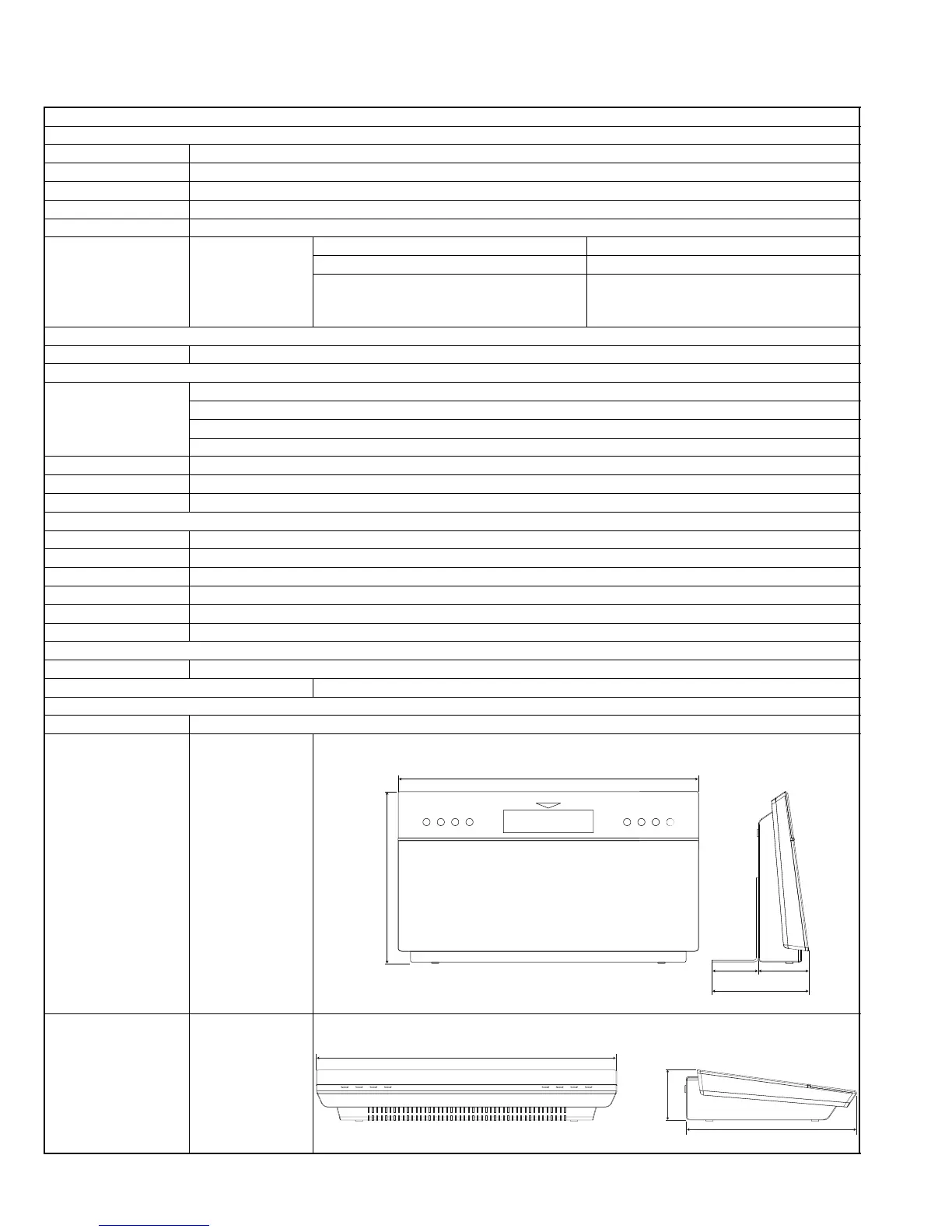

SPECIFICATION
Designs & specifications are subject to change without notice.
Main unit-CA-NXT10
Input/output
HDMI input HDMI IN 1, HDMI IN 2
HDMI output HDMI MONITOR OUT
USB terminal USB MEMORY REC/PLAY
Analog audio input AUDIO IN 500 mV/50 kΩ
Digital audio input DIGITAL IN (OPTICAL) -21 dBm to -15 dBm (660 nm ±30 nm)
Analog video output VIDEO OUT Color system PAL (E, EN, EV) : NTSC/PAL (UG)
VIDEO Composite video, 1 V(p-p)/75 Ω
COMPONENT Component video (interlaced/progressive)
(Y): 1 V(p-p)/75 Ω
(PB/PR): 0.7 V(p-p)/75 Ω
Tuner
FM tuning range 87.50 MHz - 108.00 MHz
Disc player
Playable disc DVD Video/CD/VCD/SVCD
CD-R/CD-RW (CD/SVCD/VCD/MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX format)
DVD-R/-RW (DVD Video/DVDVR/MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX format)
+R/+RW (DVD Video/MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX format)
Dynamic range 80 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
USB
Playable files MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX format
CD recording format MP3
USB specification Compatible with USB 2.0 Full Speed
Compatible device Mass storage class
Compatible system FAT16, FAT32
Bus power supply DC 5 V 500 mA
HDMI
Video resolution 576p, 720p, 1080i, 1080p
Output power (HDMI MONITOR OUT) DC 5 V 55 mA
General
Mass (approx.) 2.3 kg (without the stand)
Dimensions (approx.) Placed vertically (1): 240mm, (2): 420mm, (3): 64mm, (4): 70mm, (5): 134mm
Placed horizontally (1): 420mm, (2): 70mm, (3): 240mm
(3) (4)
(5)
(1)
(2)
(1)
(3)
(2)
