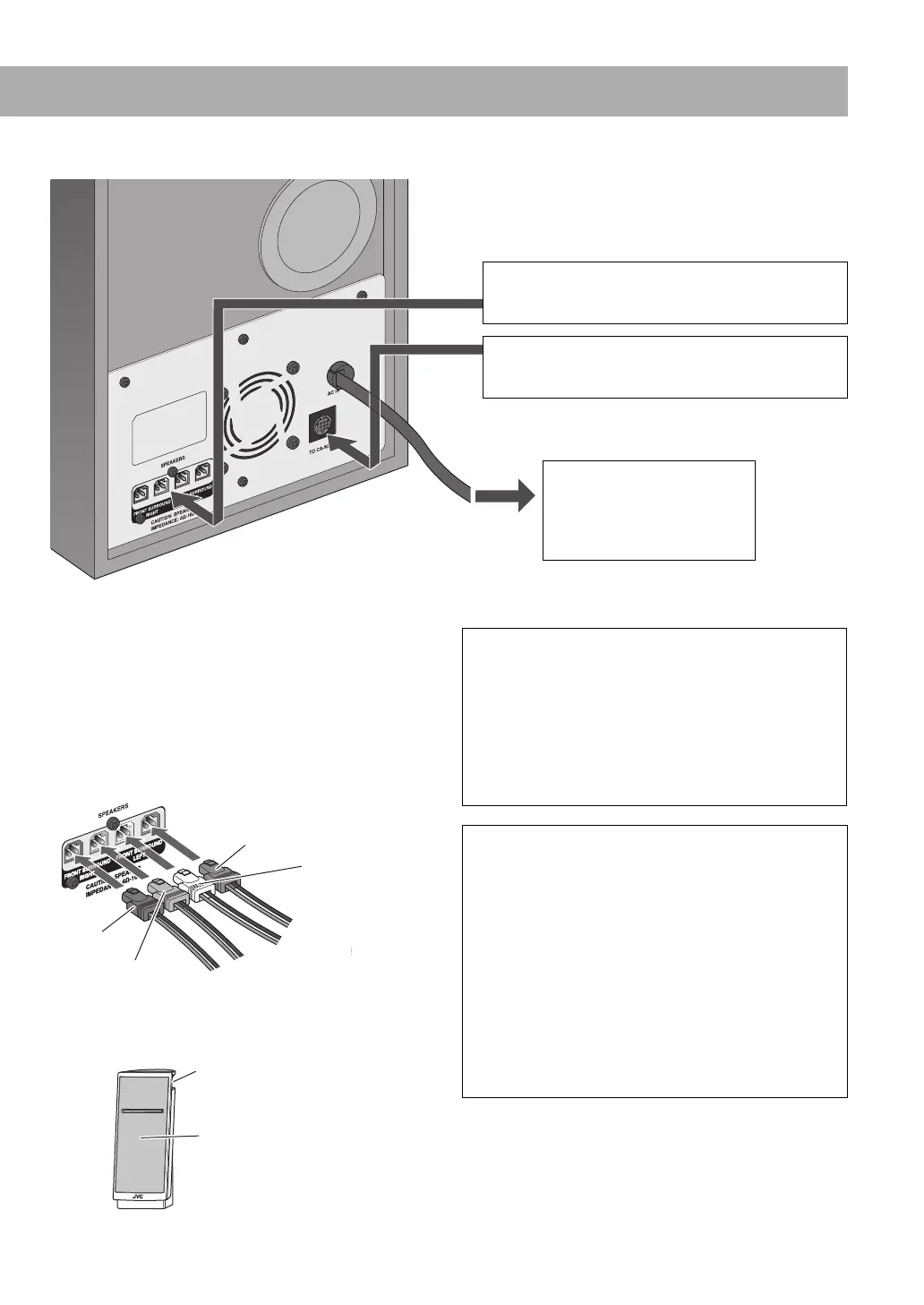

Rear panel of the subwoofer
¤ SPEAKERS
From the speakers
See below.
‹ To a wall outlet
Plug in the power cord
only after all connections
have been completed.
See page 9.
# TO CA-NXT10
From the main unit
See page 9.
¤ Speakers
Connect the speakers to the subwoofer by connecting the
colored connectors to the same color terminals on the rear
of the subwoofer.
Red
Blue
White
Gray
From the right
speaker
From the left
speaker
Speaker unit for the surround channel
(on the top)
Speaker unit for the front channel (on
the front)
CAUTION:
• The supplied speakers are manufactured exclusively
for use with the NX-T10 System. Do not connect
the supplied speakers to any devices other than the
subwoofer of the System (SP-NXT10W). Doing so may
damage the speakers.
• Do not connect external speakers together with the
supplied speakers. The change in impedance may
damage the System.
IMPORTANT
• Improper speaker cable connection reduces the stereo
effect and sound quality.
• The supplied left/right speakers are magnetically
shielded, but color irregularity may occur on the TV.
To prevent color irregularity, set up the speakers
following the instructions below. (The subwoofer is not
magnetically shielded.)
1 Turn off the main power of the TV before setting up
the speakers.
2 Place the speakers enough distance from the TV so
that they do not cause color irregularity on the TV.
3 Wait for approximately 30 minutes before turning on
the main power of the TV again.
Continued on the next page
