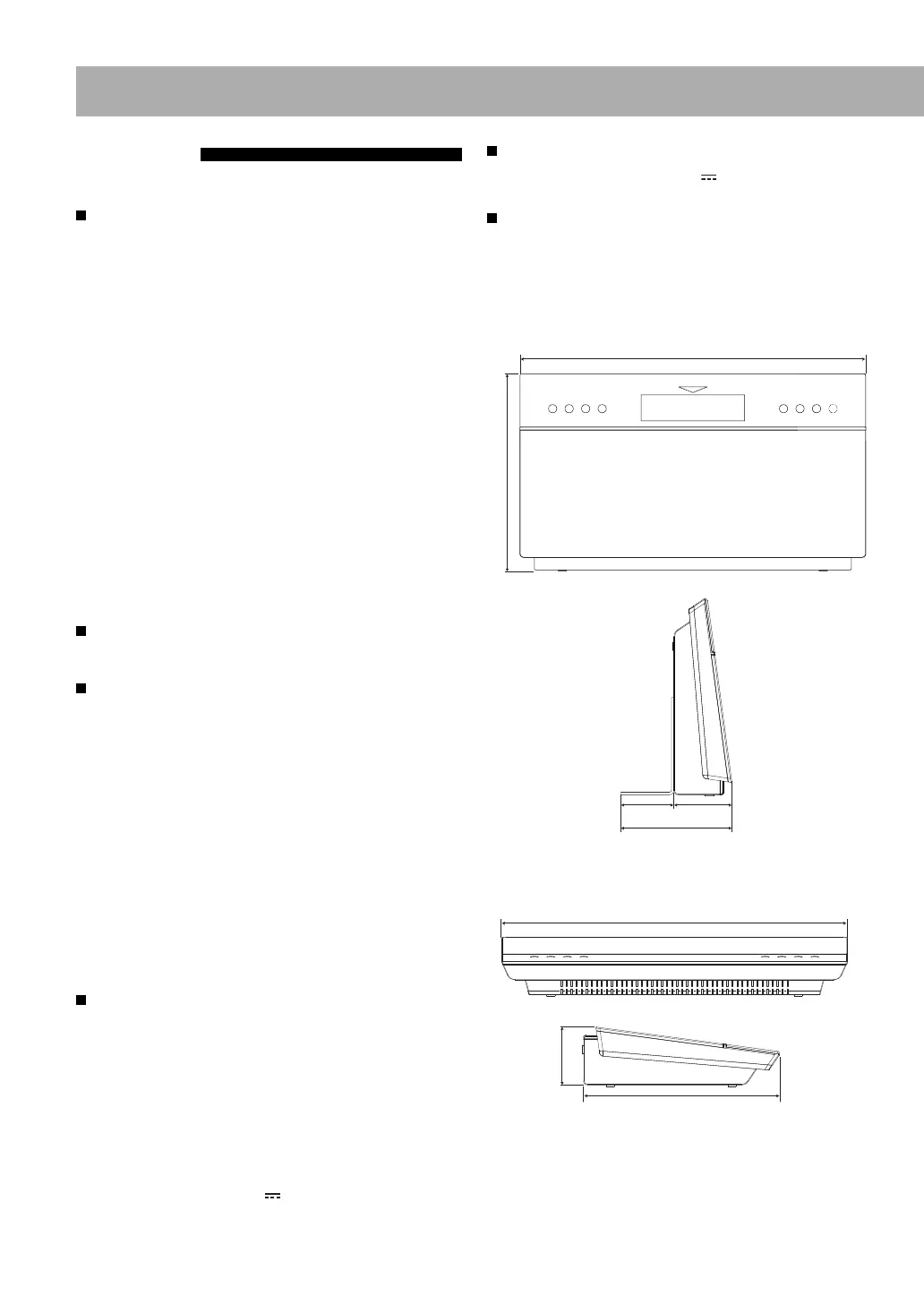

Main board
Block No. [0][5]
BC120 CD1121105052020 C CAPACITOR 1121-105052020
CD1 CD1123107053180 T CAPACITOR 1123-107053180
CD4 CD1123107053180 T CAPACITOR 1123-107053180
CD7 CD1121102082020 C CAPACITOR 1121-102082020
CD310 CD1132107053081 E CAPACITOR 1132-107053081
CN2 CD3106120721000 FFC CONNECTOR 3106-120721000
CN3 CD3106052411000 FFC CONNECTOR 3106-052411000
CN7 CD3106120811000 FFC CONNECTOR 3106-120811000
CN8 CD3106101521000 FFC CONNECTOR 3106-101521000
CN9 CD3106101821000 FFC CONNECTOR 3106-101821000
CN10 CD3106121121000 FFC CONNECTOR 3106-121121000
CN11 CD3101200221010 CONNECTOR 3101-200221010
CN82 CD3101200321020 CONNECTOR 3101-200321020
CN100 CD3101200921000 CONNECTOR 3101-200921000
CON1 CD3101200511020 HEADER 3101-200511020
EC1 CD1132226053060 E CAPACITOR 1132-226053060
EC2 CD1132107053060 E CAPACITOR 1132-107053060
EC3 CD1132107053060 E CAPACITOR 1132-107053060
EC4 CD1132107053060 E CAPACITOR 1132-107053060
EC5 CD1132107053060 E CAPACITOR 1132-107053060
EC6 CD1132107053060 E CAPACITOR 1132-107053060
EC7 CD1132106053060 E CAPACITOR 1132-106053060
EC8 CD1132476053040 E CAPACITOR 1132-476053040
EC9 CD1132476053040 E CAPACITOR 1132-476053040
EC10 CD1132107053060 E CAPACITOR 1132-107053060
EC11 CD1132105083060 E CAPACITOR 1132-105083060
EC12 CD1132107053060 E CAPACITOR 1132-107053060
EC13 CD1132106053060 E CAPACITOR 1132-106053060
EC14 CD1123107053180 T CAPACITOR 1123-107053180
EC15 CD1132476053040 E CAPACITOR 1132-476053040
EC16 CD1132476053040 E CAPACITOR 1132-476053040
EC17 CD1123107053180 T CAPACITOR 1123-107053180
EC18 CD1132476053040 E CAPACITOR 1132-476053040
EC19 CD1122108033121 AL E.CAPACITOR 1122-108033121
EC23 CD1132476053060 E CAPACITOR 1132-476053060
EC24 CD1132107053060 E CAPACITOR 1132-107053060
EC28 CD1132476053040 E CAPACITOR 1132-476053040
EC29 CD1132476053040 E CAPACITOR 1132-476053040
EC30 CD1132476053060 E CAPACITOR 1132-476053060
EC34 CD1132476053040 E CAPACITOR 1132-476053040
EC39 CD1132107053060 E CAPACITOR 1132-107053060
EC41 CD1132107053060 E CAPACITOR 1132-107053060
EC42 CD1132477043060 E CAPACITOR 1132-477043060
EC43 CD1132107053060 E CAPACITOR 1132-107053060
EC52 CD1132106053010 E CAPACITOR 1132-106053010
EC53 CD1132227054201 E CAPACITOR 1132-227054201
GND3 CD8016000000100 FM ANT CONT PIN 8016-000000100
J2 CD3211190200000 HDMI JACK 3211-190200000
J3 CD3211190200000 HDMI JACK 3211-190200000
J4 CD3211190200000 HDMI JACK 3211-190200000
RD2 CD1221000062020 C RESISTOR 1221-000062020
RD003 CD1221510051020 C RESISTOR 1221-510051020
RD004 CD1221121061020 C RESISTOR 1221-121061020
RN2 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN3 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN4 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN5 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN7 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN8 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN9 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN10 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN11 CD1225330062020 RESISTOR ARRAY 1225-330062020
RN12 CD1225330062020 RESISTOR ARRAY 1225-330062020
SW1 CD3309010134010 DOOR SWITCH 3309-010134010
SW2 CD3309010134010 DOOR SWITCH 3309-010134010
X1 CD1001270000250 CRYSTAL 1001-270000250
Y1 CD1001270000250 CRYSTAL 1001-270000250
Y2 CD1001000327130 CRYSTAL 1001-000327130
Y3 CD1001120000200 CRYSTAL 1001-120000200
Y4 CD1001120000200 CRYSTAL 1001-120000200
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
U201 CD1502003208000 IC 1502-003208000
U202 CD1502004558030 IC 1502-004558030
U203 CD1502004558030 IC 1502-004558030
U204 CD1511024256010 IC 1511-024256010
U205 CD1507074266000 IC 1507-074266000
U301 CD1512001580000 IC 1512-001580000
U302 CD1512001580000 IC 1512-001580000
U303 CD1512001117130 IC 1512-001117130
U304 CD1512001117130 IC 1512-001117130
U601 CD1506780527000 IC 1506-780527000
U602 CD1511002402010 IC 1511-002402010
U701 CD1502002258000 IC 1502-002258000
U801 CD1512001117080 IC 1512-001117080
U802 CD1512001117130 IC 1512-001117130
Q301 CD1424023050020 MOS FET 1424-023050020
Q302 CD1422080500020 TRANSISTOR 1422-080500020
Q303 CD1424023050020 MOS FET 1424-023050020
Q304 CD1422080500020 TRANSISTOR 1422-080500020
Q307 CD1422080500020 TRANSISTOR 1422-080500020
Q308 CD1424023050020 MOS FET 1424-023050020
Q601 CD1422080500020 TRANSISTOR 1422-080500020
Q701 CD1422080500020 TRANSISTOR 1422-080500020
D101 CD1323000510060 Z DIODE 1323-000510060
D102 CD1323000510060 Z DIODE 1323-000510060
D103 CD1323000510060 Z DIODE 1323-000510060
D104 CD1323000510060 Z DIODE 1323-000510060
D105 CD1323000510060 Z DIODE 1323-000510060
D106 CD1323000510060 Z DIODE 1323-000510060
D107 CD1323000510060 Z DIODE 1323-000510060
D108 CD1323000510060 Z DIODE 1323-000510060
D201 CD1323000510060 Z DIODE 1323-000510060
D202 CD1323000510060 Z DIODE 1323-000510060
D203 CD1323000510060 Z DIODE 1323-000510060
D204 CD1323000510060 Z DIODE 1323-000510060
D301 CD1322000340010 SCHOTTKY DIODE 1322-000340010
D302 CD1322000340010 SCHOTTKY DIODE 1322-000340010
D303 CD1321041480050 DIODE 1321-041480050
D304 CD1321000990030 SWITCH DIODE 1321-000990030
D305 CD1321000990030 SWITCH DIODE 1321-000990030
D306 CD1321000990030 SWITCH DIODE 1321-000990030
D307 CD1323003000000 Z DIODE 1323-003000000
D308 CD1322005200020 BARRIER DIODE 1322-005200020
D309 CD1322005200020 BARRIER DIODE 1322-005200020
D311 CD1322005200020 BARRIER DIODE 1322-005200020
D312 CD1322005200020 BARRIER DIODE 1322-005200020
D602 CD1321041480050 DIODE 1321-041480050
D701 CD1313000910010 Z DIODE 1313-000910010
D801 CD1322000120000
SCHOTTKY BARRIER DIODE
1322-000120000
D802 CD1322000120000
SCHOTTKY BARRIER DIODE
1322-000120000
D803 CD1322000120000
SCHOTTKY BARRIER DIODE
1322-000120000
D804 CD1311140070000 DIODE RECTIFIER 1311-140070000
D805 CD1322000120000
SCHOTTKY BARRIER DIODE
1322-000120000
D806 CD1322000120000
SCHOTTKY BARRIER DIODE
1322-000120000
C1 CD1121103082020 C CAPACITOR 1121-103082020
C2 CD1121103082020 C CAPACITOR 1121-103082020
C3 CD1121103082020 C CAPACITOR 1121-103082020
C4 CD1221000062020 C RESISTOR 1221-000062020
C5 CD1121103082020 C CAPACITOR 1121-103082020
C6 CD1121103082020 C CAPACITOR 1121-103082020
C7 CD1121104082020 C CAPACITOR 1121-104082020
C107 CD1121101081020 C CAPACITOR 1121-101081020
C108 CD1121101081020 C CAPACITOR 1121-101081020
C109 CD1121105052020 C CAPACITOR 1121-105052020
C110 CD1121105052020 C CAPACITOR 1121-105052020
C201 CD1121101081020 C CAPACITOR 1121-101081020
C202 CD1121101081020 C CAPACITOR 1121-101081020
C203 CD1121101081020 C CAPACITOR 1121-101081020
C204 CD1121101081020 C CAPACITOR 1121-101081020
C205 CD1121105052020 C CAPACITOR 1121-105052020
C206 CD1121105052020 C CAPACITOR 1121-105052020
C207 CD1121101081020 C CAPACITOR 1121-101081020
