JVC RC-XC3BK

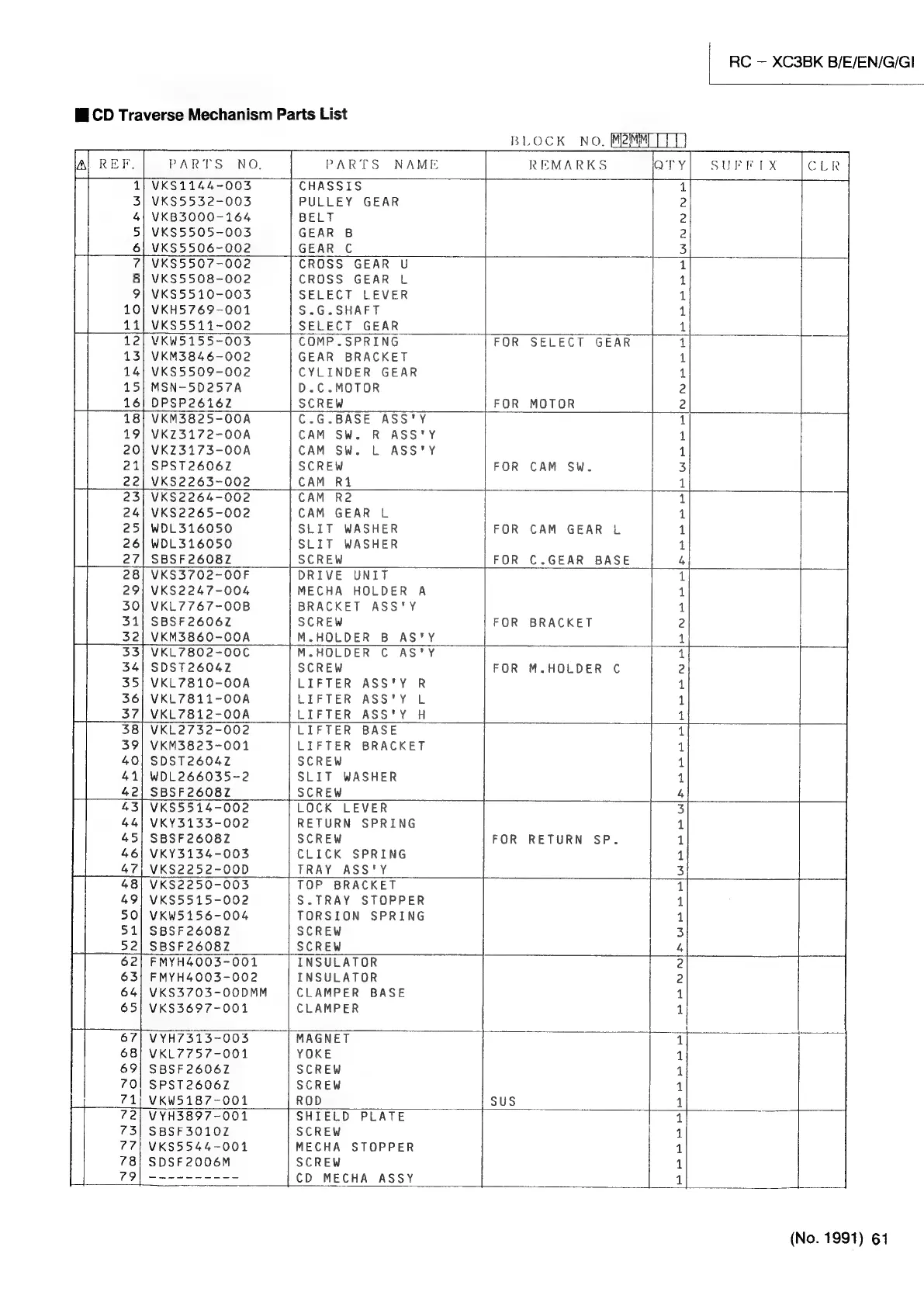

MCD Traverse Mechanism Parts List
BLOCK NO, MéMM[TT
RC — XC3BK B/E/EN/G/GI
PARTS NAME REMARKS QTY} SUFFIX I|CLR
eee Saeerie
11 VKS1144~-003 CHASSIS 7
3] VKS5532-003 PULLEY GEAR 2
4| VKB3000-164 BELT 2
5] VKS5505-003 GEAR B 2
6| VKS5506-002 GEAR C 3
7| VKS5507-002 CROSS GEAR U 1
81 VKS5508-002 CROSS GEAR L 1
9} VKS5510-003 SELECT LEVER 1
10] VKH5769-001 S.G.SHAFT 4
11] VKS5511-002 SELECT GEAR | 4
12] VKW5155-003 COMP.SPRING FOR SELECT GEAR 1
13| VKM3846-002 GEAR BRACKET 1
14] VKS5509-002 CYLINDER GEAR 1
15| MSN-5D257A D.C.MOTOR 2
16] DPSP26162 SCREW FOR MOTOR 3
TaTVENSESS OO C.G.BASE ASS'Y 1
19| VKZ3172-00A CAM SW. R ASS'Y 1
20] VKZ3173-00A CAM SW. L ASS'Y 1
21) SPST2606Z SCREW FOR CAM SW. 3
22| VKS2263-002 CAM R41 1
23] VKS2264-002 CAM Ro 1
24| VKS2265-002 CAM GEAR L 4
25| WDL316050 SLIT WASHER FOR CAM GEAR L 1
26] WDL316050 SLIT WASHER 1
27| SBSF2608Z SCREW FOR C.GEAR BASE 4
28| VKS3702-00F DRIVE UNIT 7
29] VKS2247-004 MECHA HOLDER A 1
30] VKL7767-00B BRACKET ASS'Y 1
31] SBSF2606Z SCREW FOR BRACKET 2
32| VKM3860-00A M.HOLDER B AS'Y sole al be
33] VKL7802-006 M.HOLDER C AS*Y 1
34] SDST26042 SCREW FOR M.HOLDER C 2
35] VKL7810-00A LIFTER ASS'Y R 1
36| VKL7811-00A LIFTER ASS'Y L 1
37] VKL7812-00A LIFTER ASS'Y H 1
38] VKL2732-002 LIFTER BASE 1
39| VKM3823-001 LIFTER BRACKET 1
40| SDST26042 SCREW 1
41] WDL266035-2 SLIT WASHER 4
42| SBSF2608Z SCREW | 4f
23] VKS5514-002 LOCK LEVER 3
441 VKY3133-002 RETURN SPRING 1
45| SBSF26082 SCREW FOR RETURN SP. 1
46] VKY3134-003 CLICK SPRING 4
47] VKS2252-00D TRAY ASS'Y 3 |
48] VKS2250-003 TOP BRACKET i,
49] VKS5515-002 S.TRAY STOPPER 1
50] VKW5156-004 TORSION SPRING 4
51] SBSF2608Z SCREW 3
52| SBSF26082Z SCREW | 4|
62] FMYH4003-001 INSULATOR 2
63] FMYH4003-002 INSULATOR 2
641 VKS3703-O0DMM | CLAMPER BASE 1
65} VKS3697-001 CLAMPER 1
67| VYH7313-003 MAGNET Ea i
68] VKL7757-001 YOKE 1
69| SBSF26062Z SCREW 1
70! SPST26062 SCREW 1
741} VKW5187-001 ROD SUS 1
72| VYH3897-001 SHIELD PLATE =
73| SBSF3010Z SCREW 1
77] VKS5544-001 MECHA STOPPER 4
78] SDSF2006M SCREW 1
TI
wwe
CD
MECHA
ASSY
4
(No. 1991) 61
