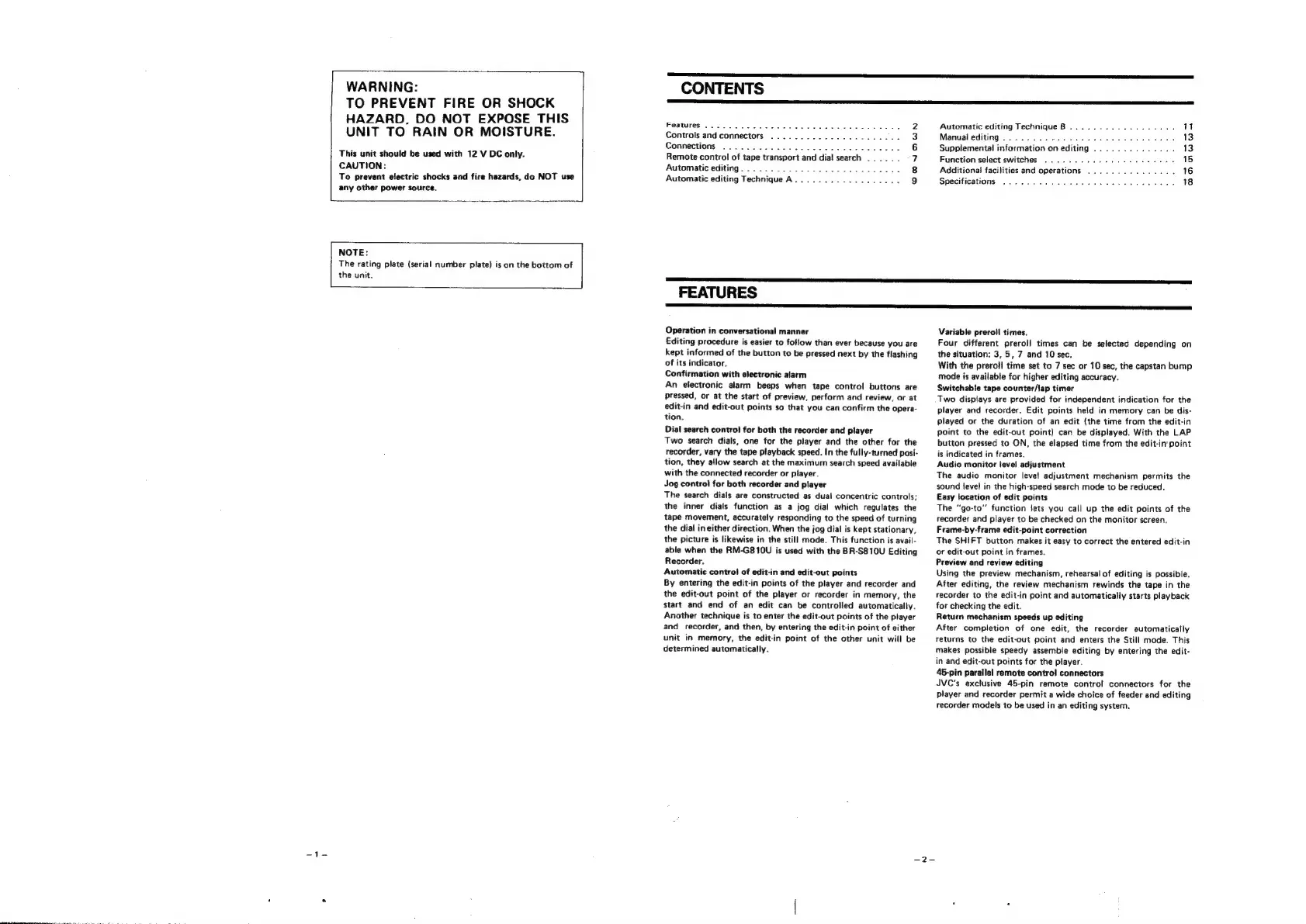

WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
This unit should be used with 12 V DC only.
CAUTION:
To prevent electric shocks and fire hazards, do NOT use
any other power source,
NOTE:
The rating plate (serial number plate) is on the bottom of
the unit.
SS SN PES ES
CONTENTS
FS atures sod Foc ios a, ee sresth Bosna s treo SAT AOS BD le 2
Controls and connectors 3
Connections .......... 6
Remote control of tape transport and dial search _..... = 7
Automatic editing. .... 0.0.0.0. 000 000.0. 000006 8
Automatic editing TechniqueA.................. 9
FEATURES
Automatic editing Technique 6 ................0.24 1
Mantialiediting: 5, 656-0 3.4 4 eels Deere tad eet 13
Supplemental information on editing .............. 13
Function select switches 15
Additional facilities and operations .... 16
Specifications: ss. 5.2 ds ig B4S Gallo bc. deduehoe ene 18
ee
Operation in conversational manner
Editing procedure is easier to follow than ever because you are
kept informed of the button to be pressed next by the flashing
of its indicator,
Confirmation with electronic alarm
An electronic alarm beeps when tape control buttons are
pressed, or at the start of preview, perform and review, or at
edit-in and edit-out points so that you can confirm the Opera-
tion.
Dial search contro} for both the recorder and player
Two search dials, one for the player and the other for the
recorder, vary the tape playback speed. In the fully-turned posi-
tion, they allow search at the maximum search speed available
with the connected recorder or player.
Jog control for both recorder and player
The search dials are constructed as dual concentric controls;
the inner dials function as a jog dial which regulates the
tape movement, accurately responding to the speed of turning
the dial in either direction. When the jog dial is kept stationary,
the picture is likewise in the still mode. This function is avail-
able when the RM-G810U is used with the BR-S810U Editing
Recorder.
Automatic control of edit-in and edit-out points
By entering the edit-in points of the player and recorder and
the edit-out point of the player or recorder in memory, the
start and end of an edit can be controlled automatically.
Another technique is to enter the edit-out points of the player
and recorder, and then, by entering the edit-in point of either
unit in memory, the edit-in point of the other unit will be
determined automatically.
Variable preroll times.
Four different preroll times can be selected depending on
the situation: 3,5, 7 and 10 sec.
With the preroll time set to 7 sec or 10 sec, the capstan bump
mode is available for higher editing accuracy.
Switchable tape counter/lap timer
Two displays are provided for independent indication for the
player and recorder. Edit points held in memory can be dis-
played or the duration of an edit {the time from the edit-in
point to the edit-out point) can be displayed. With the LAP
button pressed to ON, the elapsed time from the edit-in’ point
is indicated in frames.
Audio monitor level adjustment
The audio monitor level adjustment mechanism permits the
sound level in the high-speed search mode to be reduced.
Easy location of edit points
The “go-to” function lets you call up the edit points of the
recorder and player to be checked on the monitor screen.
Frame-by-frame edit-point correction
The SHIFT button makes it easy to correct the entered edit-in
or edit-out point in frames.
Preview and review editing
Using the preview mechanism, rehearsal of editing is possible.
After editing, the review mechanism rewinds the tape in the
recorder to the edit-in point and automatically starts playback
for checking the edit.
Return mechanism speeds up editing
After completion of one edit, the recorder automatically
returns to the edit-out point and enters the Still mode. This
makes possible speedy assemble editing by entering the edit-
in and edit-out points for the player.
45-pin parallel remote control connectors
JVC's exclusive 45-pin remote control connectors for the
player and recorder permit a wide choice of feeder and editing
recorder models to be used in an editing system.
