3.1.10 Removing the Front panel (See Fig.16 to 18)
(1) Remove the one screw P attaching the Earth wire. (See
Fig.16)
(2) Remove the one screw Q attaching the Earth wire. (See
Fig.17)
(3) Remove the two screws R attaching the Front panel. (See
Fig.18)
(4) Disengage two hooks a engaged both side of the Front
panel. (See Fig.17)

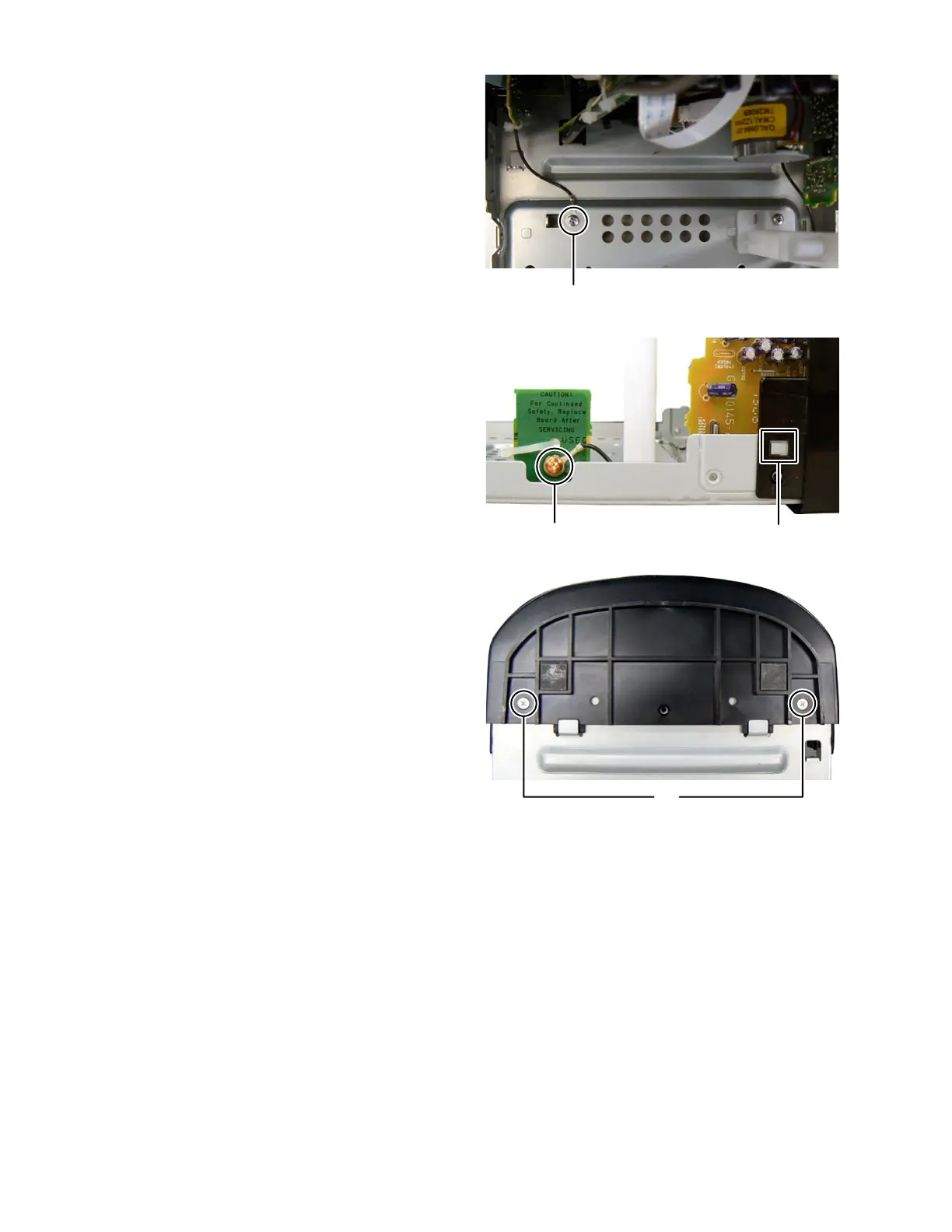

Fig.16
Fig.17
Fig.18
P
Q
hook a
R
