JVC SP-DXJ21F - Specific Service Instructions; Disassembly

(No.MB666<Rev.005>)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
3.1 Main body (Used figure are DX-J11)

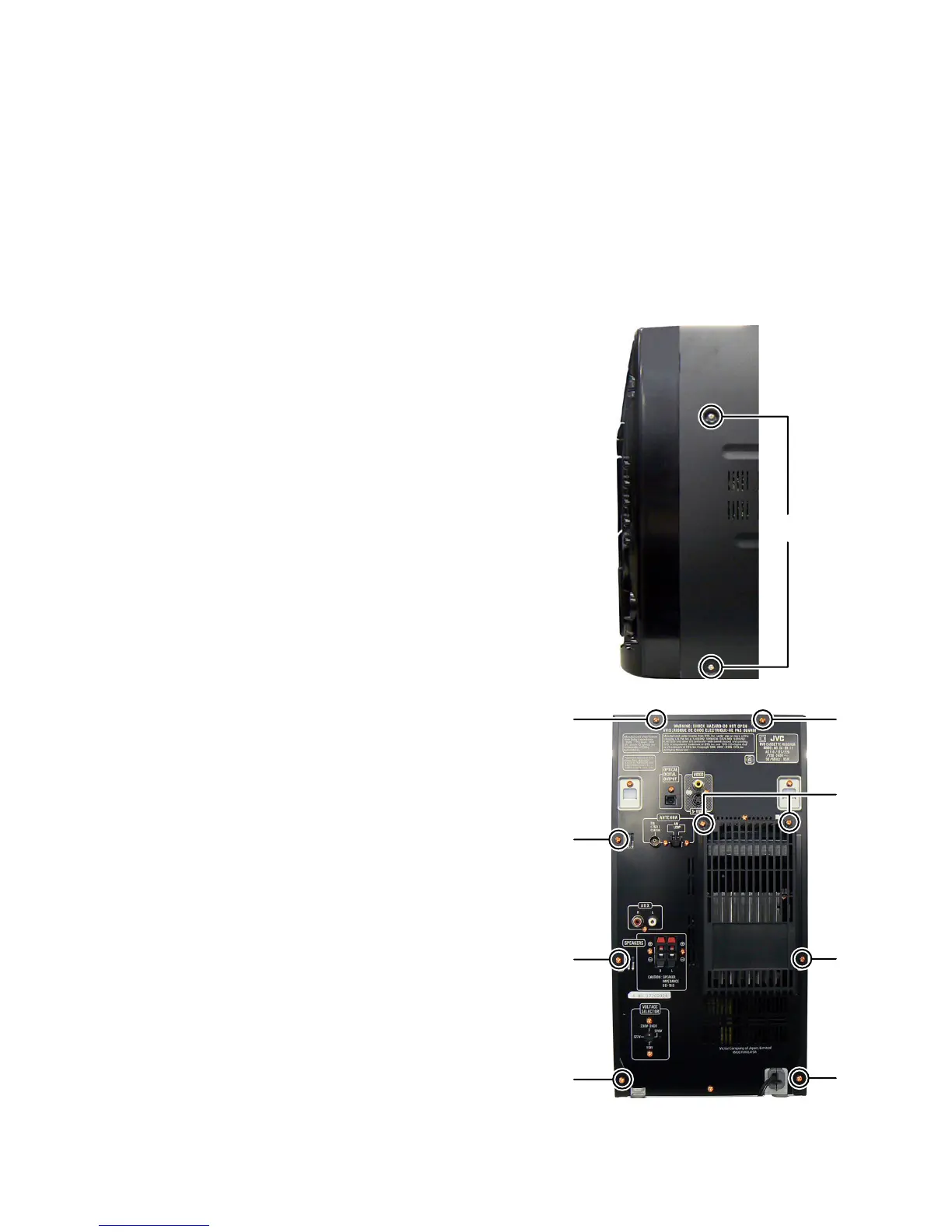

3.1.1 Removing the Metal cover (See Fig.1, 2)
(1) Remove the four screws A attaching the both side of the
Metal Cover. (See Fig.1)
(2) Remove the two screws B attaching the Rear cover. (See
Fig.2)
(3) Remove the seven screws C attaching the Metal cover.
(See Fig.2)
Fig.1
Fig.2
A
C
C
C
C
B
C
C
C
