1-8 (No.MB666<Rev.005>)

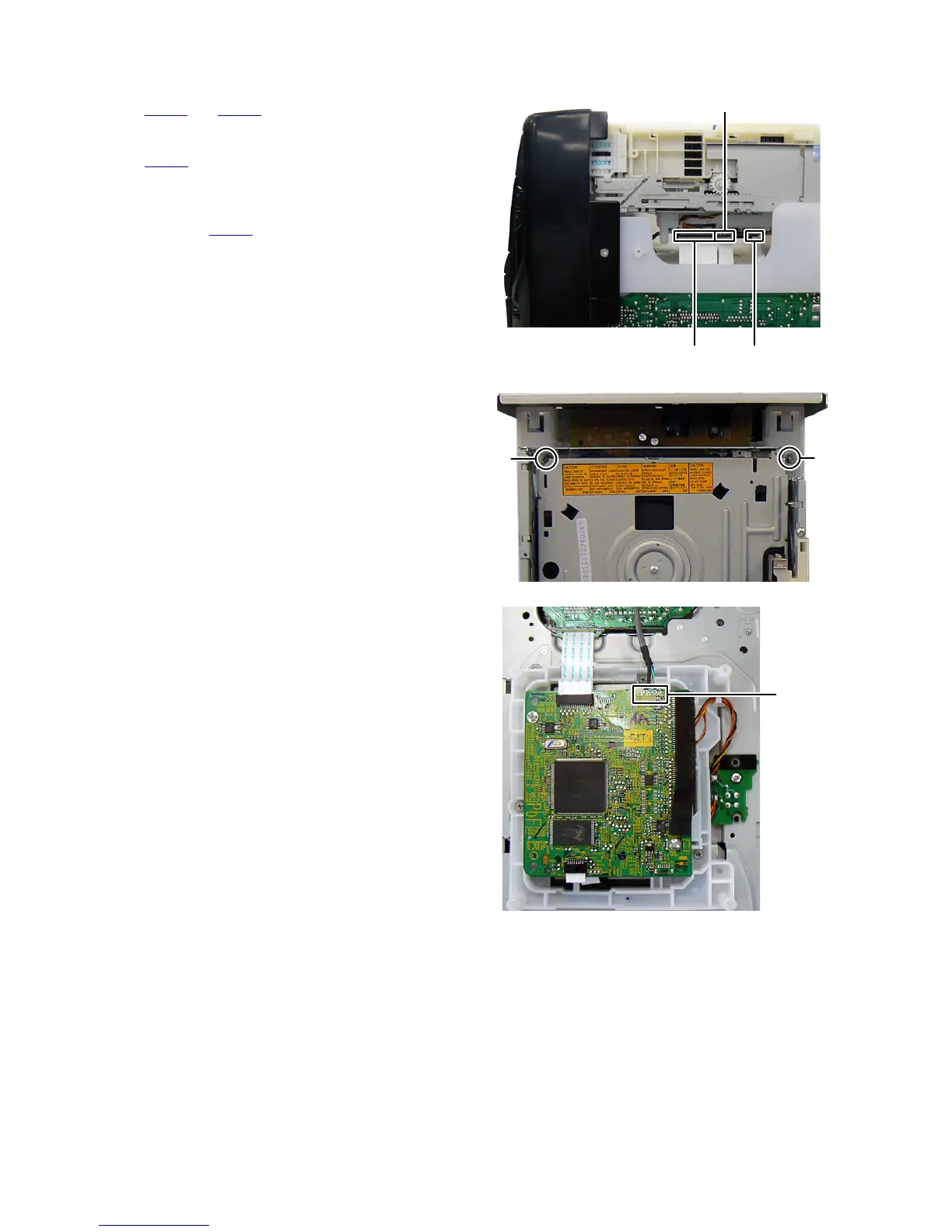

3.1.2 Removing the DVD mechanism (See Fig.3 to 5)

(1) Disconnect the card wire from Micom board connected to

connector CN701

and CN801 of the Front end board. (See

Fig.3)

(2) Disconnect the card wire from Amp board connected to

connector CN702

of the Front end board. (See Fig.3)

(3) Remove the two screws D attaching the DVD mechanism.

(See Fig.4)

(4) Disconnect the connector wire from USB jack board con-

nected to connector CN811

of the Front end board. (See

Fig.5)

Fig.3

Fig.4

Fig.5

CN701

CN702

CN801

CN811
