1-14 (No.MB666<Rev.005>)

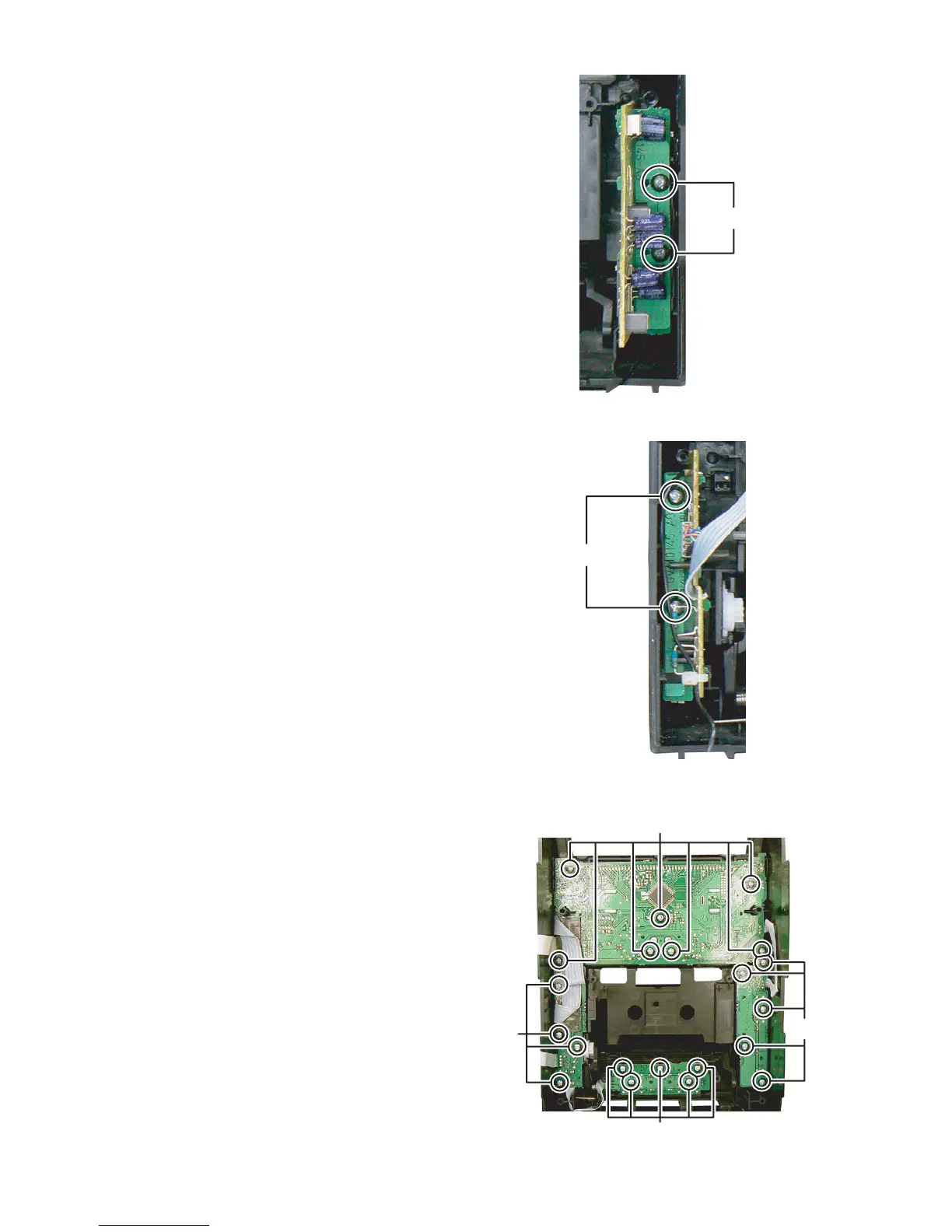

3.1.12 Removing the Mic board (See Fig.22)
(1) Remove the volume knob.
(2) Remove the two screws W attaching the Mic board.
Fig.22
3.1.13 Removing the USB jack board and Headphone jack board (See Fig.23)
(1) Remove the two screws X attaching the bracket board.
Fig.23
3.1.14 Removing the FL board (See Fig.24)
(1) Remove the Volume knob.
(2) Remove the five screws Y attaching the Function board.
(3) Remove the four screws Z attaching the PLAY button
board.
(4) Remove the five screws AA attaching the EJECT button
board.
(5) Remove the seven screws BB attaching the FL board.
Fig.24
W
X
Y
Z
AA
BB
